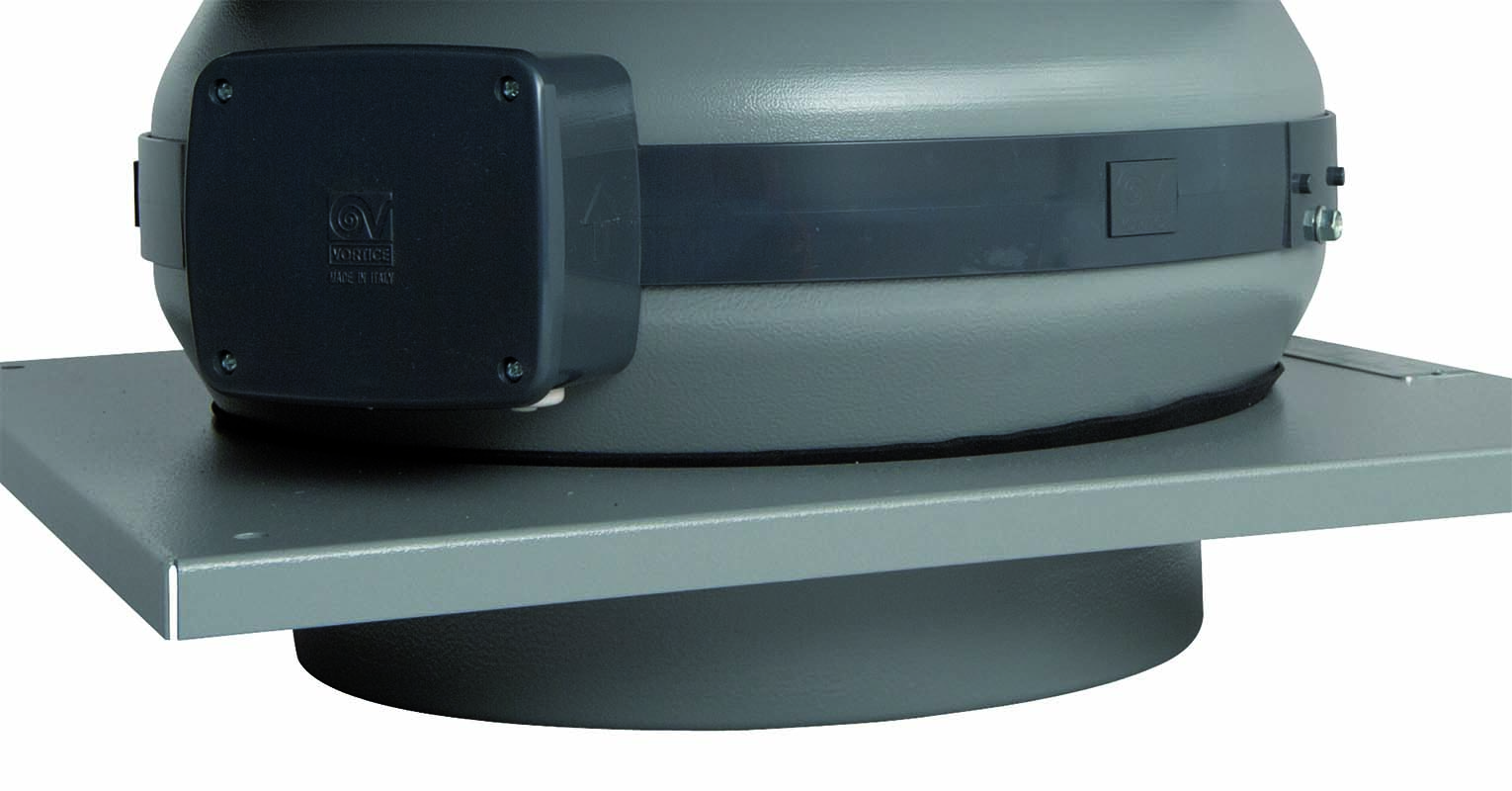

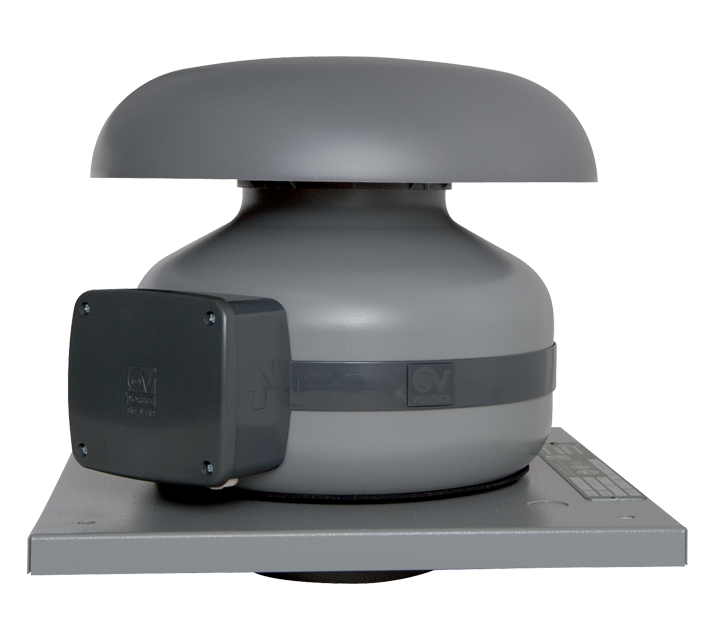

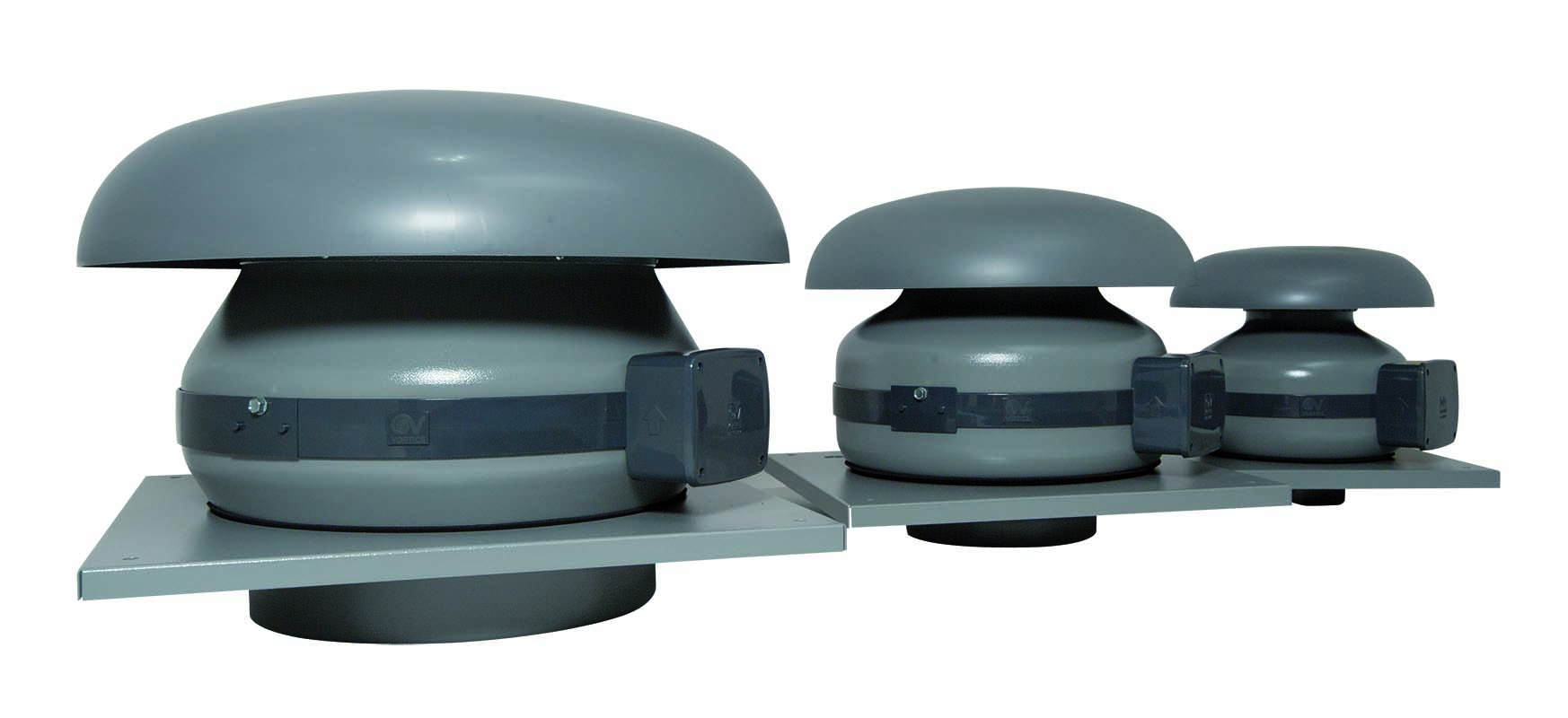

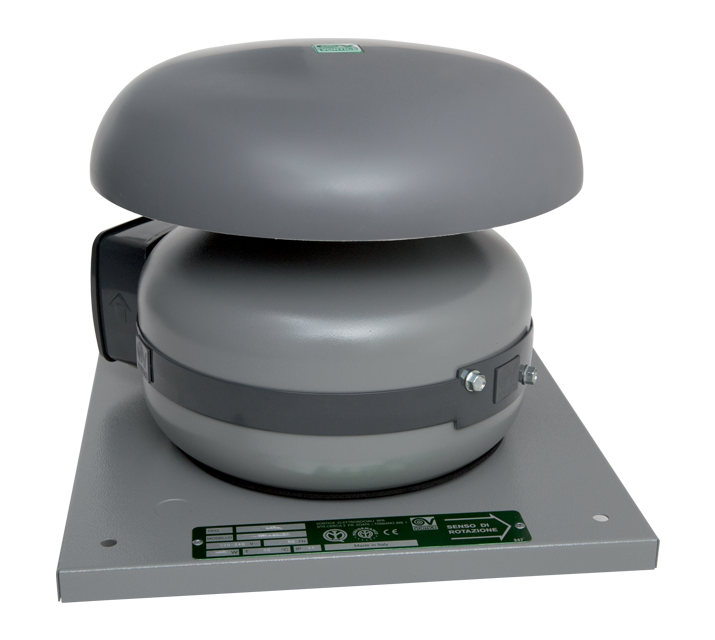

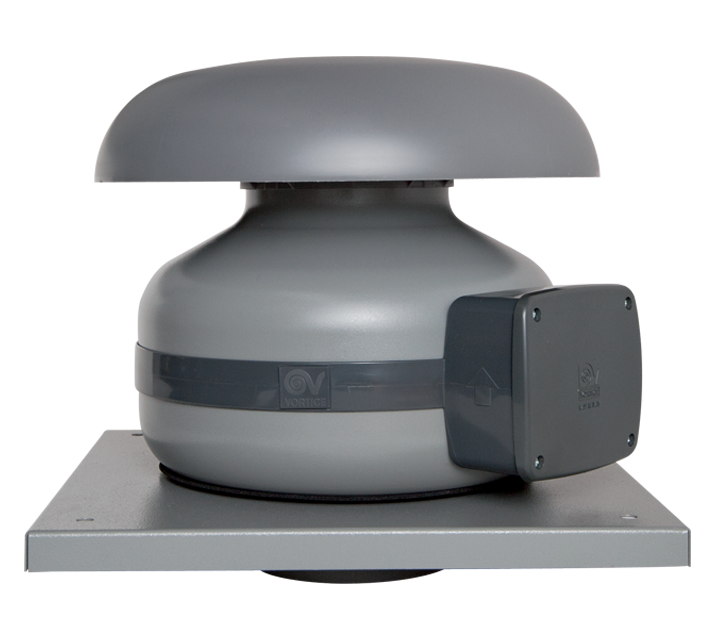

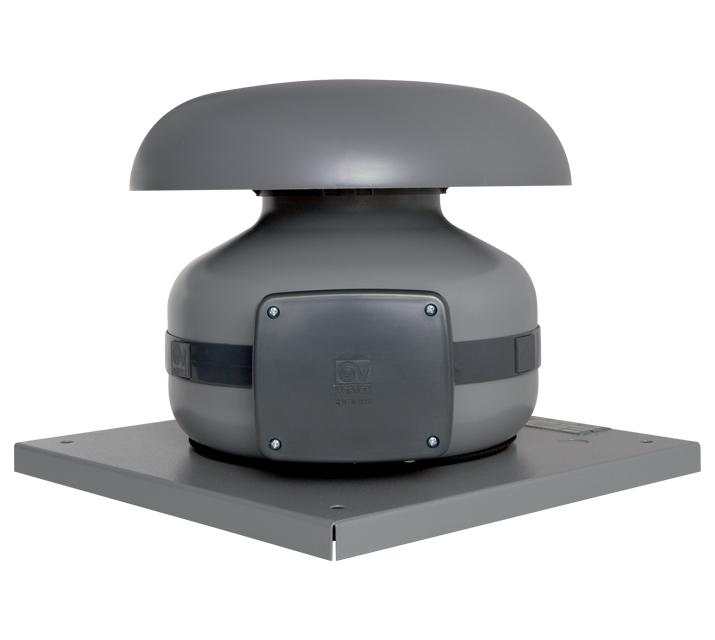

Description

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 150 mm.
• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel fixing brackets.
Read full descriptionClose description

Certifications

ca_md_e_rf_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,17
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Max speed at 60 Hz (A)
    0,26
  • Max absorbed current at Mid speed (A)
    0,20
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,23
  • Max absorbed current at Min speed (A)
    0,15
  • Max absorbed power at Max speed (W)
    41
  • Max absorbed power at Max speed at 60 Hz (W)
    45
  • Max absorbed power at Mid speed (W)
    30
  • Max absorbed power at Mid speed at 60 Hz (W)
    35
  • Max absorbed power at Min speed at 60 Hz (W)
    16
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    150
  • Power absorbed at 1st speed (W)
    13
  • Voltage (V)
    220-240
  • Weight (Kg)
    7,5
  • Airflow at 1st speed (l/s)
    35
  • Airflow at 1st speed (m³/h)
    125
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    65,4
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    59,7
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    45,3
  • Breakout sound power LWA at Max speed [dB (A)]
    68,1
  • Breakout sound power LWA at Mid speed [dB (A)]
    60,6
  • Breakout sound power LWA at Min speed [dB (A)]
    42,2
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    44,9
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    47,5
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    39,2
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    40,1
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    24,7
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    21,7
  • Max airflow at Max speed (l/s)
    83
  • Max airflow at Max speed (m³/h)
    300
  • Max airflow at Max speed at 60 Hz (l/s)
    78
  • Max airflow at Max speed at 60 Hz (m³/h)
    280
  • Max airflow at Mid speed (m³/h)
    250
  • Max airflow at Mid speed at 60 Hz (l/s)
    64
  • Max airflow at Mid speed at 60 Hz (m³/h)
    230
  • Max airflow at Min speed (l/s)
    69
  • Max airflow at Min speed at 60 Hz (l/s)
    39
  • Max airflow at Min speed at 60 Hz (m³/h)
    140
  • Max pressure at 60 Hz (mmH2O)
    26,1
  • Max pressure at Max speed (mmH20)
    28,2
  • Max pressure at Max speed (Pa)
    277
  • Max pressure at Max speed at 60Hz (Pa)
    256
  • Max pressure at Mid speed (mmH2O)
    23,2
  • Max pressure at Mid speed (Pa)
    228
  • Max pressure at Mid speed at 60Hz (mmH2O)
    19,4
  • Max pressure at Mid speed at 60Hz (Pa)
    190
  • Max pressure at Min speed at 60Hz (mmH2O)
    6,7
  • Max pressure at Min speed at 60Hz (Pa)
    66
  • Max RPM
    2205
  • Max speed at 60 Hz (Rpm)
    2045
  • Mid speed at 60 Hz (Rpm)
    1705
  • Min RPM
    895
  • Min speed at 60 Hz (Rpm)
    1005
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    42,2
  • Pressure at 1st speed (mmH20)
    5,4
  • Pressure at 1st speed (Pa)
    53
  • RPM at Mid speed
    1800
  • Sound power at extract side at Max speed LWA [dB (A)]
    85,4
  • Sound power at extract side at Mid speed LWA [dB (A)]
    78,8
  • Sound power at extract side at Min speed LWA [dB (A)]
    59,9
  • Sound power at supply side at Max speed LWA [dB (A)]
    68,1
  • Sound power at supply side at Mid speed LWA [dB (A)]
    60,6
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    83,3
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    77,2
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    63,4
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    65,4
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    59,7
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    45,3
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    65,8
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    67,9
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    39,2
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    61,3
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    45,8
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    42,4
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    47,5
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    40,1
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    21,7
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    44,9
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    59,7
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    24,7


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    460,45
  • SFPint (W/m3/s)
    433,30
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,08917
  • ([m3/s)
    0,08072
  • Real absorbed electric power (KW)
    0,037
  • Effective electic power input [kW]
    0,045
  • Face velocity at nominal airflow (m/s)
    10,27787
  • Face velocity at nominal flowrate (m/s)
    11,35305
  • Nominal external pressure (Pa)
    13
  • Nominal external pressure (Pa)
    10
  • Inner pressure drop of ventilation components (Pa)
    182
  • Internal pressure drop of ventilation components (Pa)
    137
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    41,9
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    29,7
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2,31
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    64
  • Casing sound power level (LWA) [dB(A)]
    68
  • Size A (mm)
    334
  • Size B (mm)
    334
  • Size C (mm)
    305
  • Size D (mm)
    ø 147
  • Size E (mm)
    280
  • Size F (mm)
    280
  • Size G (mm)
    ø 9
  • Size H (mm)
    20
  • Size L (mm)
    30
  • Size M (mm)
    35
  • Size N (mm)
    ø 300
  • Size O (mm)
    198
quota

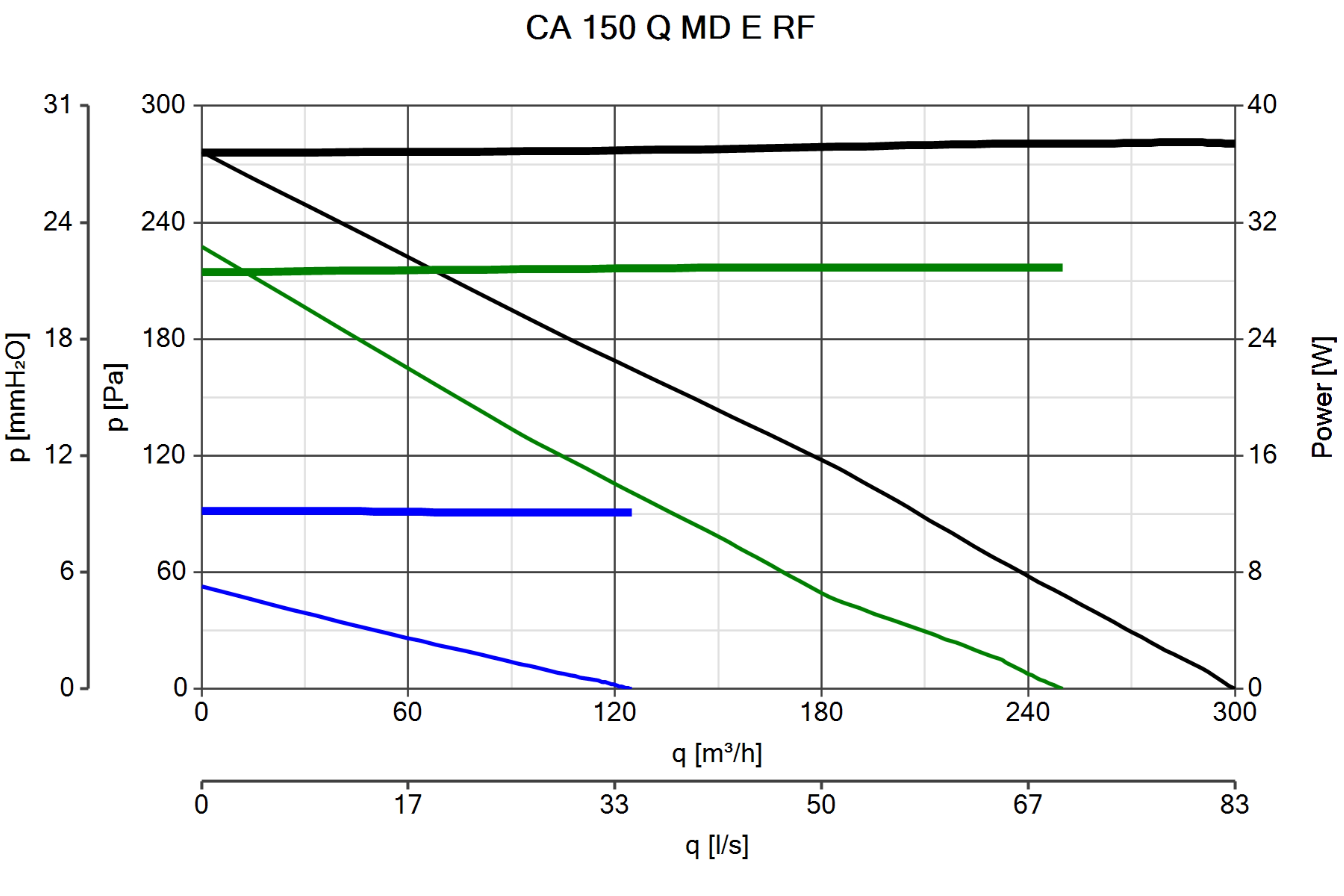

Curva_JPG_16142-Curve_per_Catalogo
