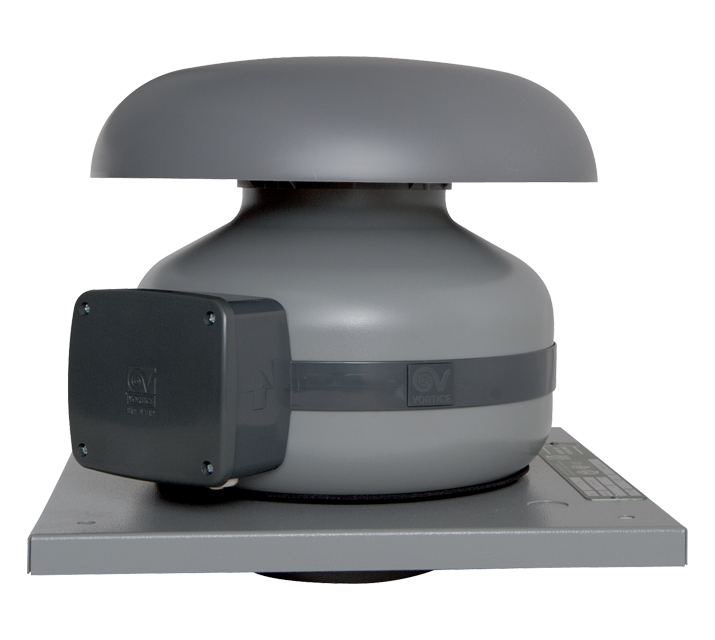

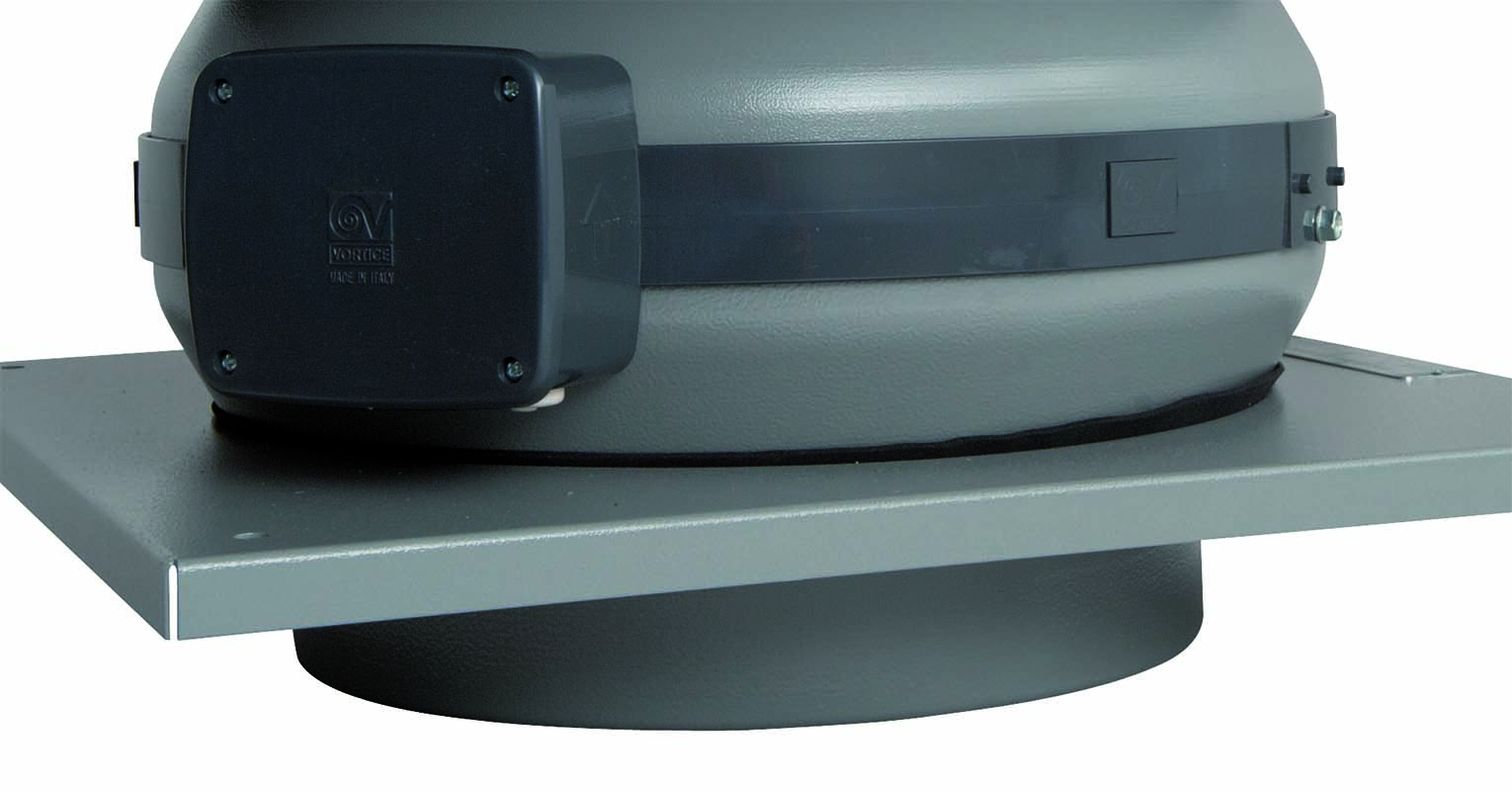

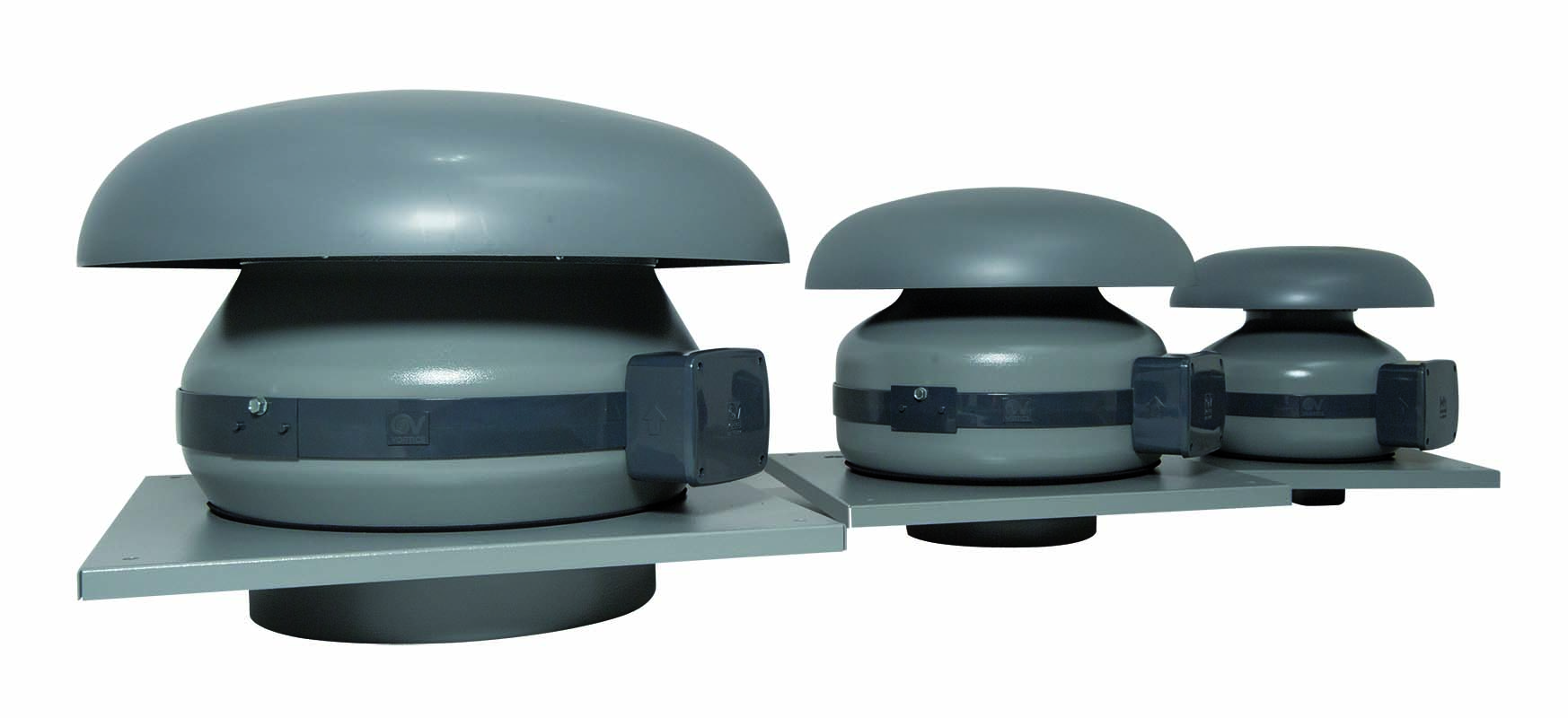

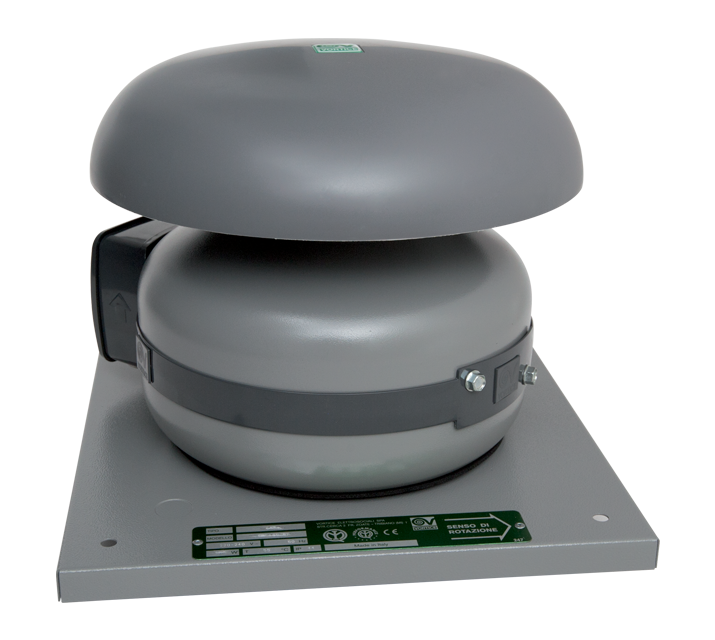

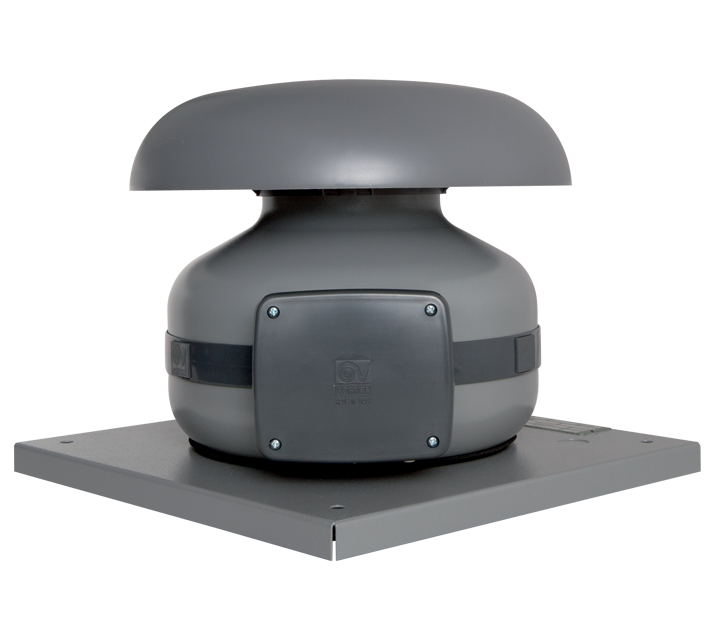

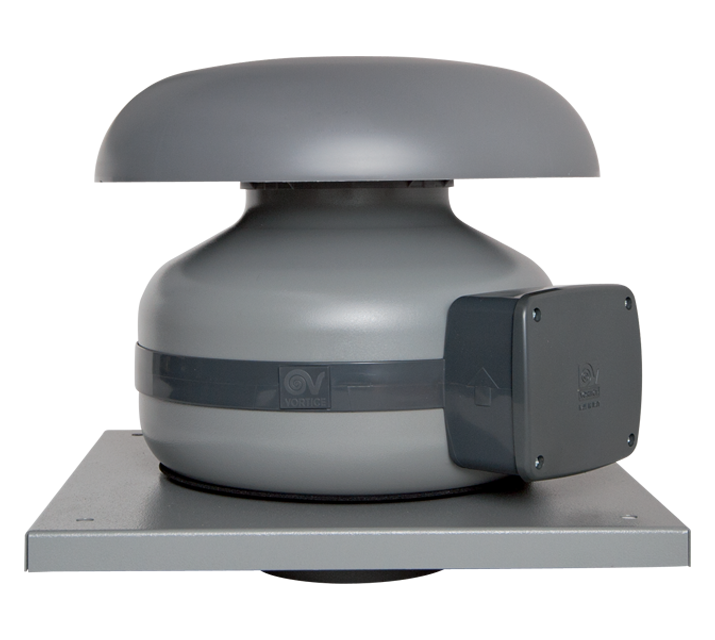

Description

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 100 mm.
• 3 speed fan consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel fixing brackets.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_e_rf_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,17
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Max speed at 60 Hz (A)
    0,26
  • Max absorbed current at Mid speed (A)
    0,20
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,23
  • Max absorbed current at Min speed (A)
    0,15
  • Max absorbed power at Max speed (W)
    41
  • Max absorbed power at Max speed at 60 Hz (W)
    45
  • Max absorbed power at Mid speed (W)
    30
  • Max absorbed power at Mid speed at 60 Hz (W)
    35
  • Max absorbed power at Min speed at 60 Hz (W)
    16
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Power absorbed at 1st speed (W)
    13
  • Voltage (V)
    220-240
  • Weight (Kg)
    4,6
  • Airflow at 1st speed (l/s)
    21
  • Airflow at 1st speed (m³/h)
    75
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    63,9
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    58,3
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    45
  • Breakout sound power LWA at Max speed [dB (A)]
    65,9
  • Breakout sound power LWA at Mid speed [dB (A)]
    59,6
  • Breakout sound power LWA at Min speed [dB (A)]
    43,5
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    43,4
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    45,4
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    37,8
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    39,1
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    24,5
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    22,9
  • Max airflow at Max speed (l/s)
    54
  • Max airflow at Max speed (m³/h)
    195
  • Max airflow at Max speed at 60 Hz (l/s)
    50
  • Max airflow at Max speed at 60 Hz (m³/h)
    180
  • Max airflow at Mid speed (m³/h)
    155
  • Max airflow at Mid speed at 60 Hz (l/s)
    40
  • Max airflow at Mid speed at 60 Hz (m³/h)
    145
  • Max airflow at Min speed (l/s)
    43
  • Max airflow at Min speed at 60 Hz (l/s)
    24
  • Max airflow at Min speed at 60 Hz (m³/h)
    86
  • Max pressure at 60 Hz (mmH2O)
    46,9
  • Max pressure at Max speed (mmH20)
    38,4
  • Max pressure at Max speed (Pa)
    377
  • Max pressure at Max speed at 60Hz (Pa)
    460
  • Max pressure at Mid speed (mmH2O)
    38
  • Max pressure at Mid speed (Pa)
    373
  • Max pressure at Mid speed at 60Hz (mmH2O)
    39,1
  • Max pressure at Mid speed at 60Hz (Pa)
    384
  • Max pressure at Min speed at 60Hz (mmH2O)
    18,7
  • Max pressure at Min speed at 60Hz (Pa)
    183
  • Max RPM
    2135
  • Max speed at 60 Hz (Rpm)
    1985
  • Mid speed at 60 Hz (Rpm)
    1670
  • Min RPM
    950
  • Min speed at 60 Hz (Rpm)
    1050
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    43,5
  • Pressure at 1st speed (mmH20)
    20,7
  • Pressure at 1st speed (Pa)
    203
  • RPM at Mid speed
    1790
  • Sound power at extract side at Max speed LWA [dB (A)]
    85,2
  • Sound power at extract side at Mid speed LWA [dB (A)]
    79,1
  • Sound power at extract side at Min speed LWA [dB (A)]
    62,3
  • Sound power at supply side at Max speed LWA [dB (A)]
    65,9
  • Sound power at supply side at Mid speed LWA [dB (A)]
    59
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    83,1
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    77,3
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    64,5
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    63,9
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    58,3
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    45
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    65,5
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    67,7
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    37,8
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    61,5
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    47
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    44,7
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    45,4
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    39,1
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    22,9
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    43,4
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    59,8
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    24,5


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    759,09
  • SFPint (W/m3/s)
    683,87
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Heat recovery nominal efficiency (%)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,05178
  • ([m3/s)
    0,05339
  • Real absorbed electric power (KW)
    0,037
  • Effective electic power input [kW]
    0,046
  • Face velocity at nominal airflow (m/s)
    6,79769
  • Face velocity at nominal flowrate (m/s)
    6,59255
  • Nominal external pressure (Pa)
    36
  • Nominal external pressure (Pa)
    3
  • Inner pressure drop of ventilation components (Pa)
    242
  • Internal pressure drop of ventilation components (Pa)
    212
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    35,4
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    27,9
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    3,49
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    63
  • Casing sound power level (LWA) [dB(A)]
    66

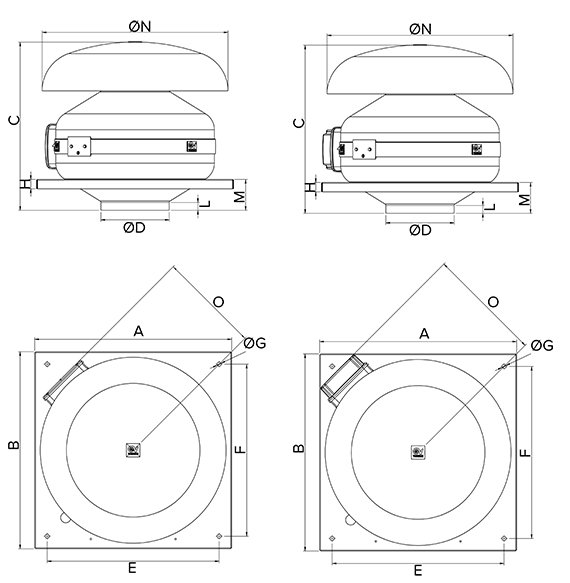

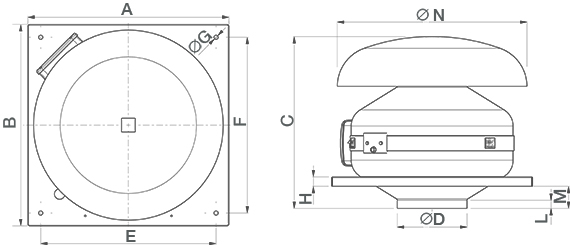

  • Size A (mm)
    334
  • Size B (mm)
    334
  • Size C (mm)
    305
  • Size D (mm)
    ø 97
  • Size E (mm)
    280
  • Size F (mm)
    280
  • Size G (mm)
    ø 9
  • Size H (mm)
    20
  • Size L (mm)
    15
  • Size M (mm)
    35
  • Size N (mm)
    ø 300
  • Size O (mm)
    198
quota

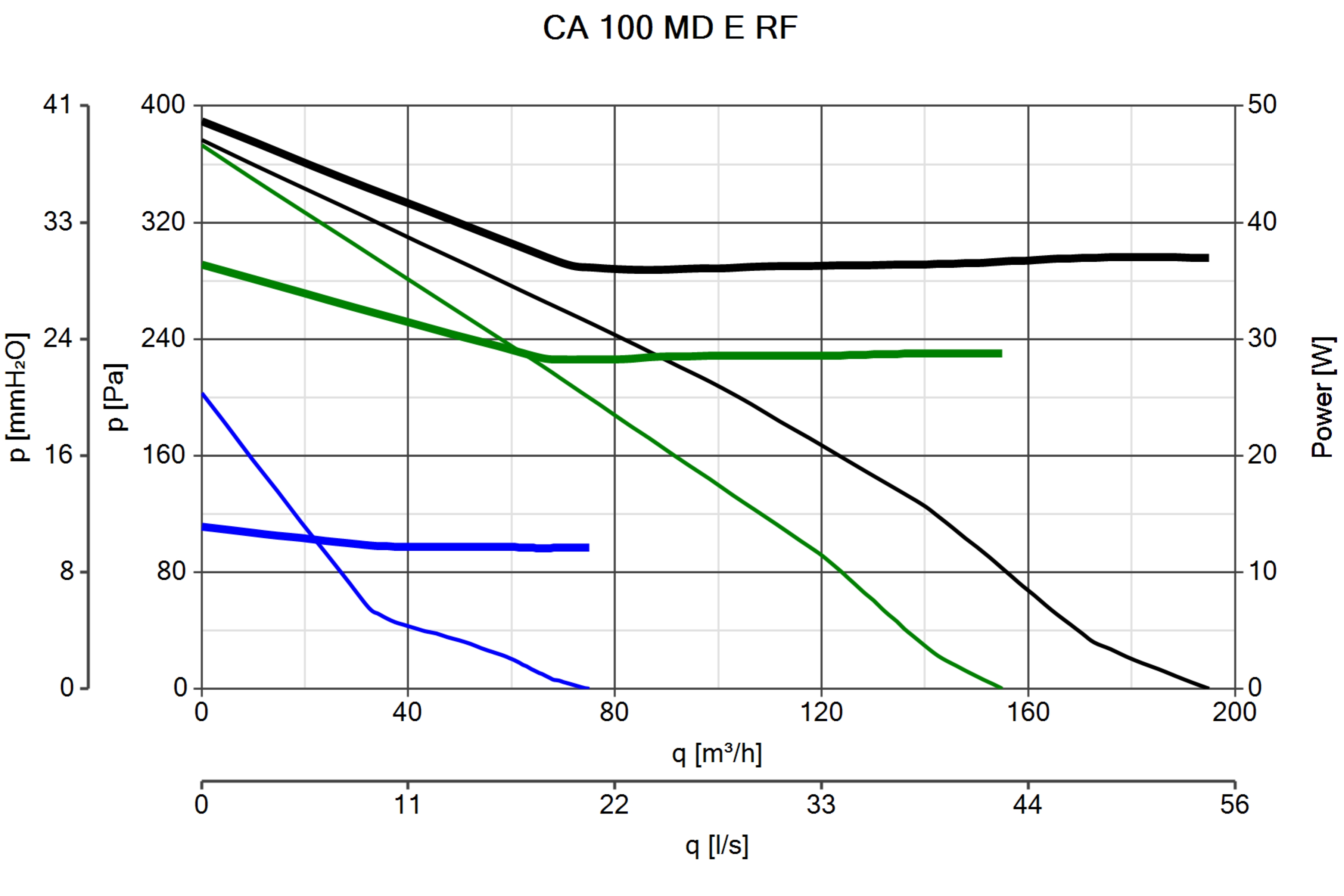

Curva_JPG_16140-Curve_per_Catalogo
Curva_JPG_16140-Curve_per_Catalogo

Accessories

Discover accessories related to the product

C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
CA-G 100 (GRIGLIA DI PROTEZIONE)
CA-G 100 (GRIGLIA DI PROTEZIONE)
Protection grille for use in the intake port when unit is mounted within reach.
CARF-C 125        (CONTROTELAIO DI BASE)
CARF-C 125 (CONTROTELAIO DI BASE)
Sub-frame
TRIO D
TRIO D
3 speed dipswitch for installation in Standard DIN box.
