Description

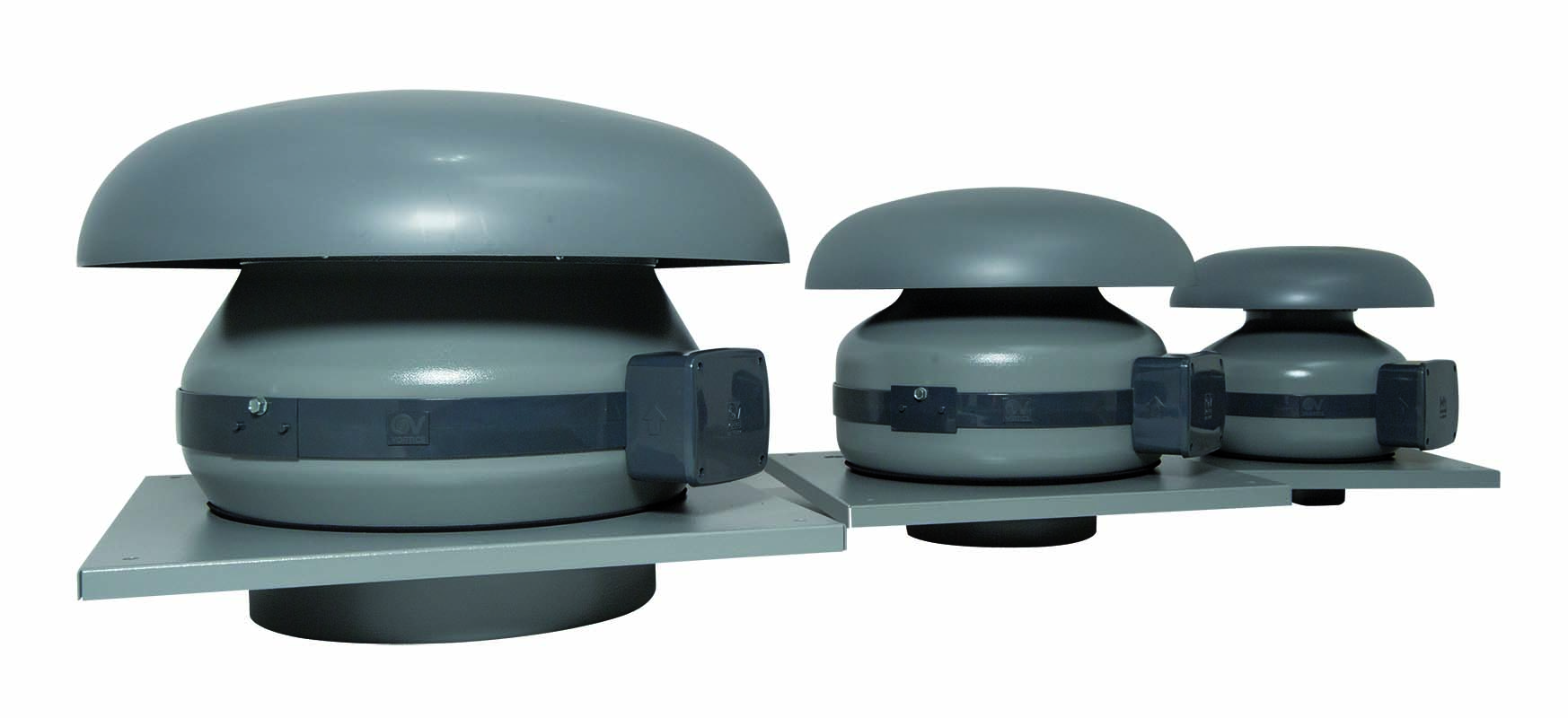

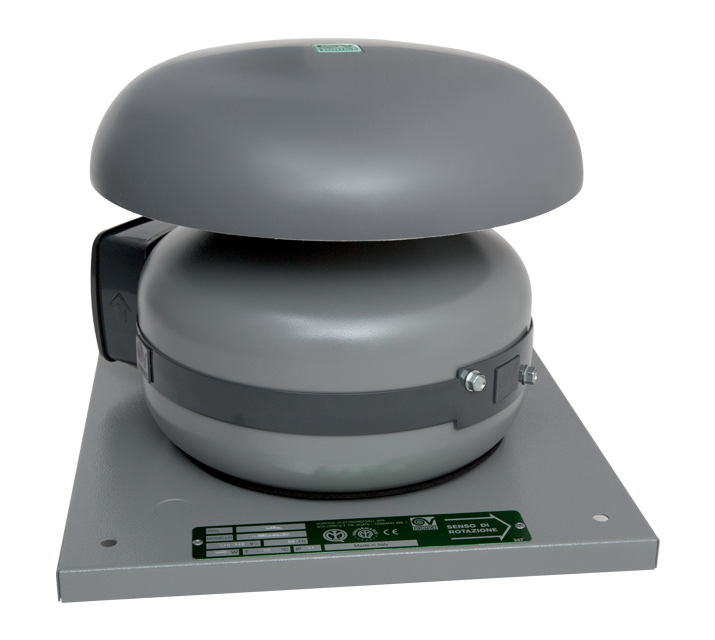

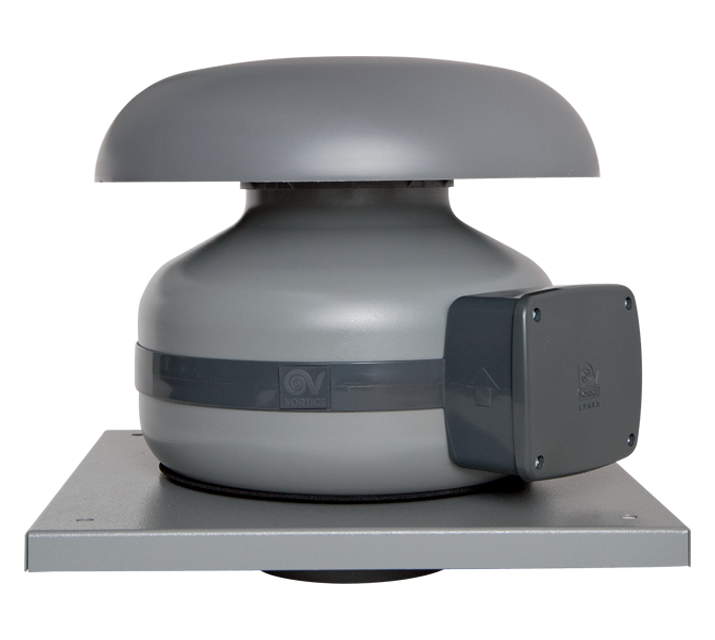

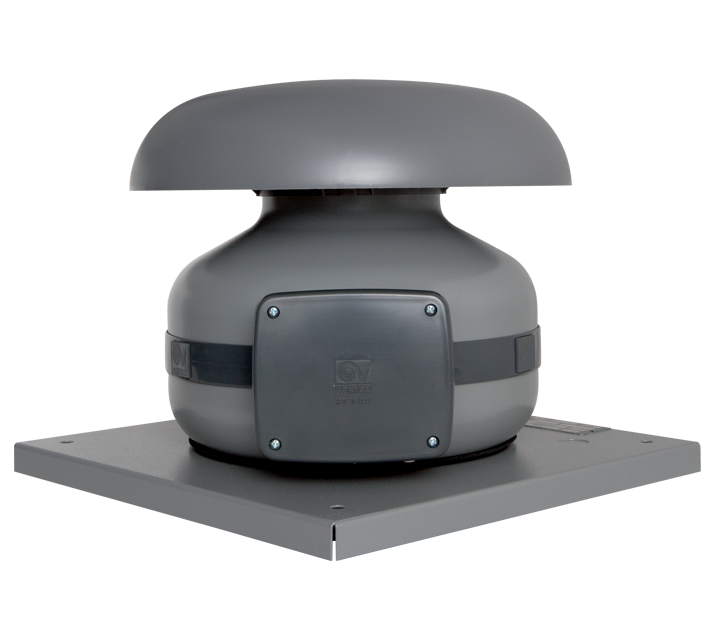

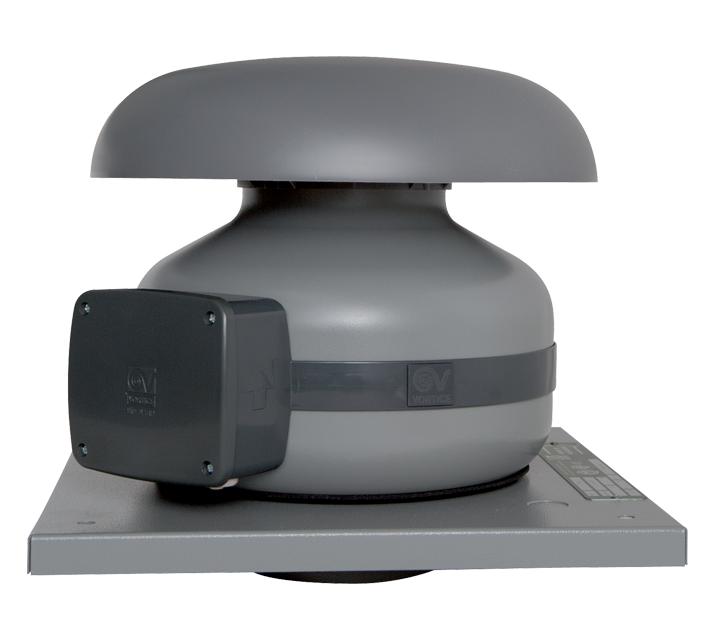

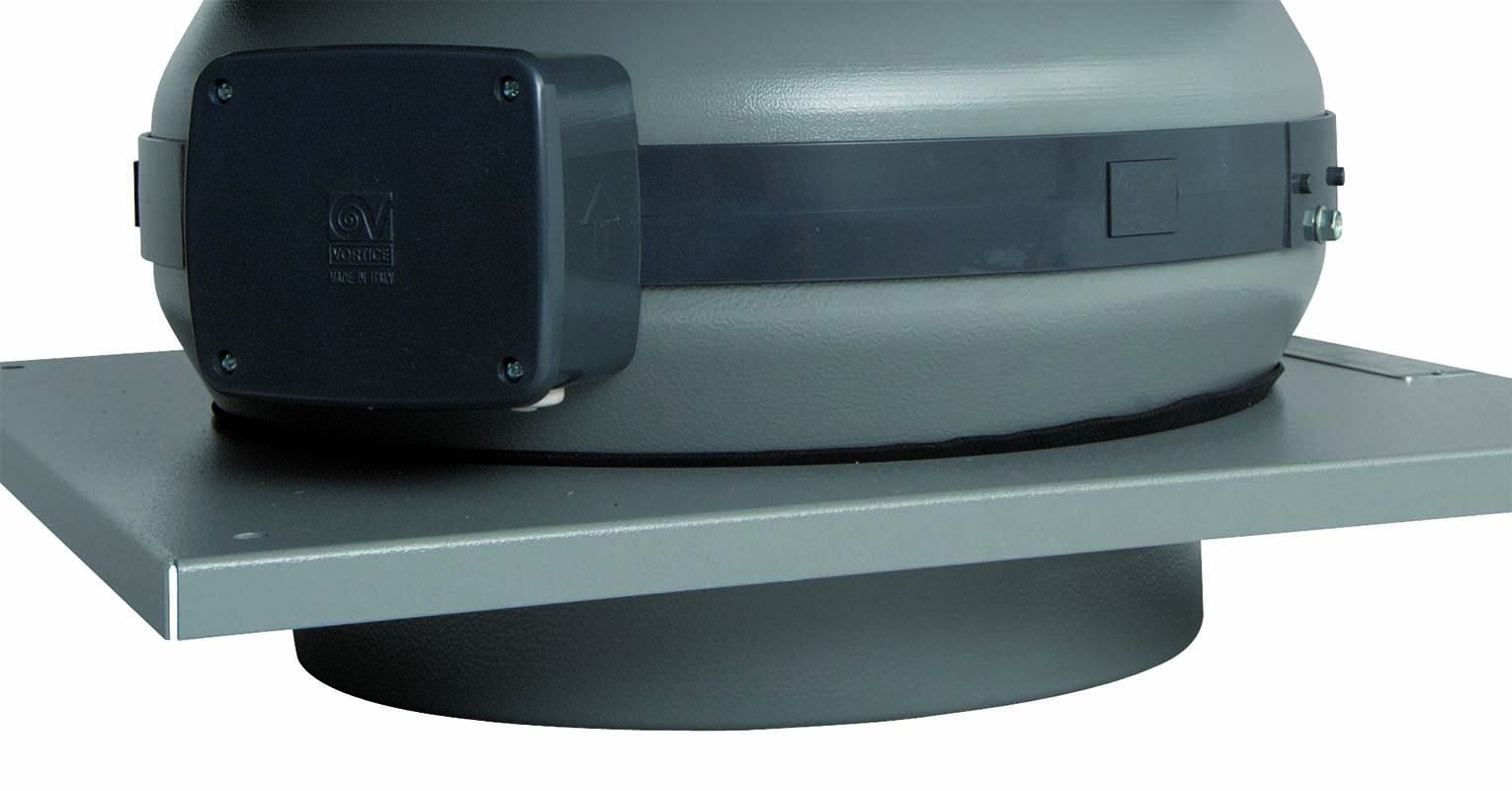

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 315 mm.
• Motor-fan, speed adjustable through IRM5 2B optional control (cod. 12861), consisting of:
o AC motor with thermal overload cutout and shaft turning in ball bearings,
o backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• IMQ SAFETY and IMQ PERFORMANCE certifications.

Read full descriptionClose description

Technical Data Sheet

  • Absorbed Current max (A)
    0,84
  • Absorbed Power max (W)
    190
  • Frequency (Hz)
    50-60
  • Insulation Class
    II°
  • IP
    44
  • Max absorbed Power at 60Hz (W)
    285
  • Max ambient temperature for continuous operation (°C)
    45
  • Nominal Diameter (mm)
    315
  • Voltage (V)
    220-240
  • Weight (Kg)
    6,6
  • Max delivery at max speed (l/s)
    339
  • Max delivery at max speed (m³/h)
    1220
  • Pressure max - max speed (mmH20)
    69
  • Pressure max - max speed (Pa)
    673
  • RPM max
    2800
  • Sound pressure level Lp [dB (A)] 3m - max speed
    55
  • Type of heat recovery system HRS:
    nessuno
  • Type of drive:
    a velocità multiple: VM
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint [W/m3/s]
    575,87
  • Efficienza termica del recupero di calore [%]
    NA
  • Portata nominale [m3/s]
    0,321
  • Potenza elettrica assorbita effettiva [KW]
    0,236
  • Face velocity at design flow rate [m/s]:
    4,348
  • Pressione esterna nominale (?ps, ext) [Pa]
    59
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    256
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    0
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    43
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    0,5
  • Energy performance energy or classification of the filters:
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level (LWA) [dB(A)]:
    73

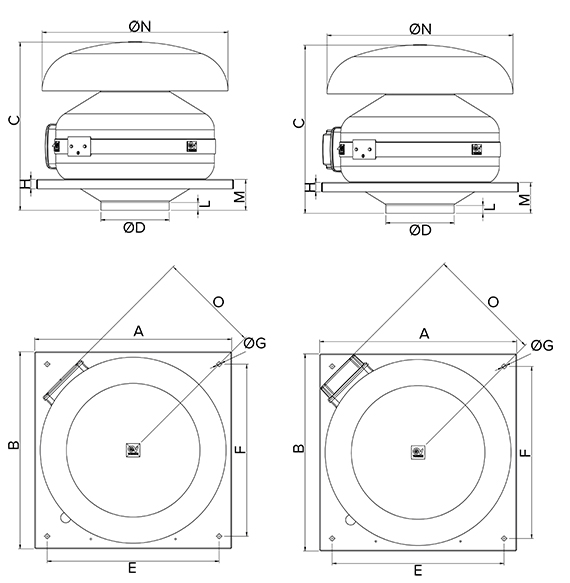

  • Size A (mm)
    489
  • Size B (mm)
    489
  • Size C (mm)
    423
  • Size D (mm)
    ø 312
  • Size E (mm)
    435
  • Size F (mm)
    435
  • Size G (mm)
    ø 9
  • Size H (mm)
    20
  • Size L (mm)
    42
  • Size M (mm)
    74
  • Size N (mm)
    ø 534
  • Size O (mm)
    260
