Code 45786

VORT QBK HE COMFORT 315 EC

High efficiency soundproof self-supporting cabinet fans

Description

Read full descriptionClose description

Technical Data Sheet

  • Absorbed Power max (W)
    350
  • Frequency (Hz)
    50/60
  • Max ambient temperature for continuous operation (°C)
    50
  • Motor Class
    F
  • Motor IP protection
    55
  • Voltage (V)
    230
  • Weight (Kg)
    33,90
  • Delivery max (l/s)
    849
  • Delivery max (m³/h)
    3057
  • Pressure max (mmH2O)
    53,70
  • Pressure max (Pa)
    526,6
  • RPM
    2000
  • Sound power level Lw [dB(A)]
    64,00
  • Sound Pressure level Lp [dB (A)] 3m
    43,5
  • Type of heat recovery system HRS:
    nessuno
  • Type of drive:
    con variatore di velocità: VSD
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint [W/m3/s]
    418,15
  • Efficienza termica del recupero di calore [%]
    N.A.
  • Portata nominale [m3/s]
    0,37
  • Potenza elettrica assorbita effettiva [KW]
    0,16
  • Face velocity at design flow rate [m/s]:
    4,79
  • Pressione esterna nominale (?ps, ext) [Pa]
    0
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    187,8
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    N.A.
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    46,03%
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    N.A.
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    N.A.
  • Energy performance energy or classification of the filters:
    N.A.
  • Description of visual filter warning:
    N.A.
  • Casing sound power level (LWA) [dB(A)]:
    64,00

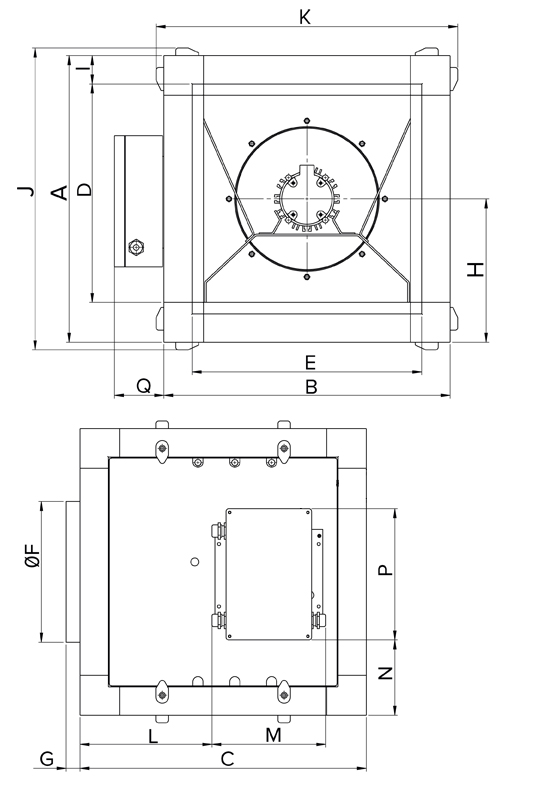

  • Dimensione Q (mm)
    88
  • Size A (mm)
    565
  • Size B (mm)
    565
  • Size C (mm)
    565
  • Size D (mm)
    465
  • Size E (mm)
    465
  • Size F (mm)
    298
  • Size G (mm)
    25
  • Size H (mm)
    282,5
  • Size I (mm)
    50
  • Size J (mm)
    592
  • Size K (mm)
    592
  • Size L (mm)
    262
  • Size M (mm)
    201
  • Size N (mm)
    162
  • Size P (mm)
    232
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

QBK-HE RF 315
QBK-HE RF 315
Round flexible joint for VORT QBK HE SAL 315 and VORT QBK HE COMFORT 315 fans.
Go to data sheet
SWT 16
SWT 16
Safety switch; max load: 16 A.
Go to data sheet
POT
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet
QBK-HE GP 315
QBK-HE GP 315
Protection grid to be applied on outlet port of VORT QBK HE SAL 315 and VORT QBK HE COMFORT 315 fans.
Go to data sheet
QBK SAVIB 40
QBK SAVIB 40
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
QBK F
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
QBK-HE COMFORT RRC 315
QBK-HE COMFORT RRC 315
Go to data sheet
QBK-HE MFL 315
QBK-HE MFL 315
Go to data sheet
