Code 45783
VORT QBK HE COMFORT 400 4M
High efficiency soundproof self-supporting cabinet fans
Description
Certifications
Technical Data Sheet
Accessories
Documentation
Instruction booklet
Wiring diagram
Technical Data Sheet
Energy data
Regolamento N° 206/2012/UE
PRODUCTS
COMMERCIAL VENTILATION
BOX FANS
DUCTED
Description
Read full description
Close description
Certifications
CE
Download
EAC
Regolamento N° 206/2012/UE
Technical Data Sheet
Technical and performance data
Energy data
Dimensions

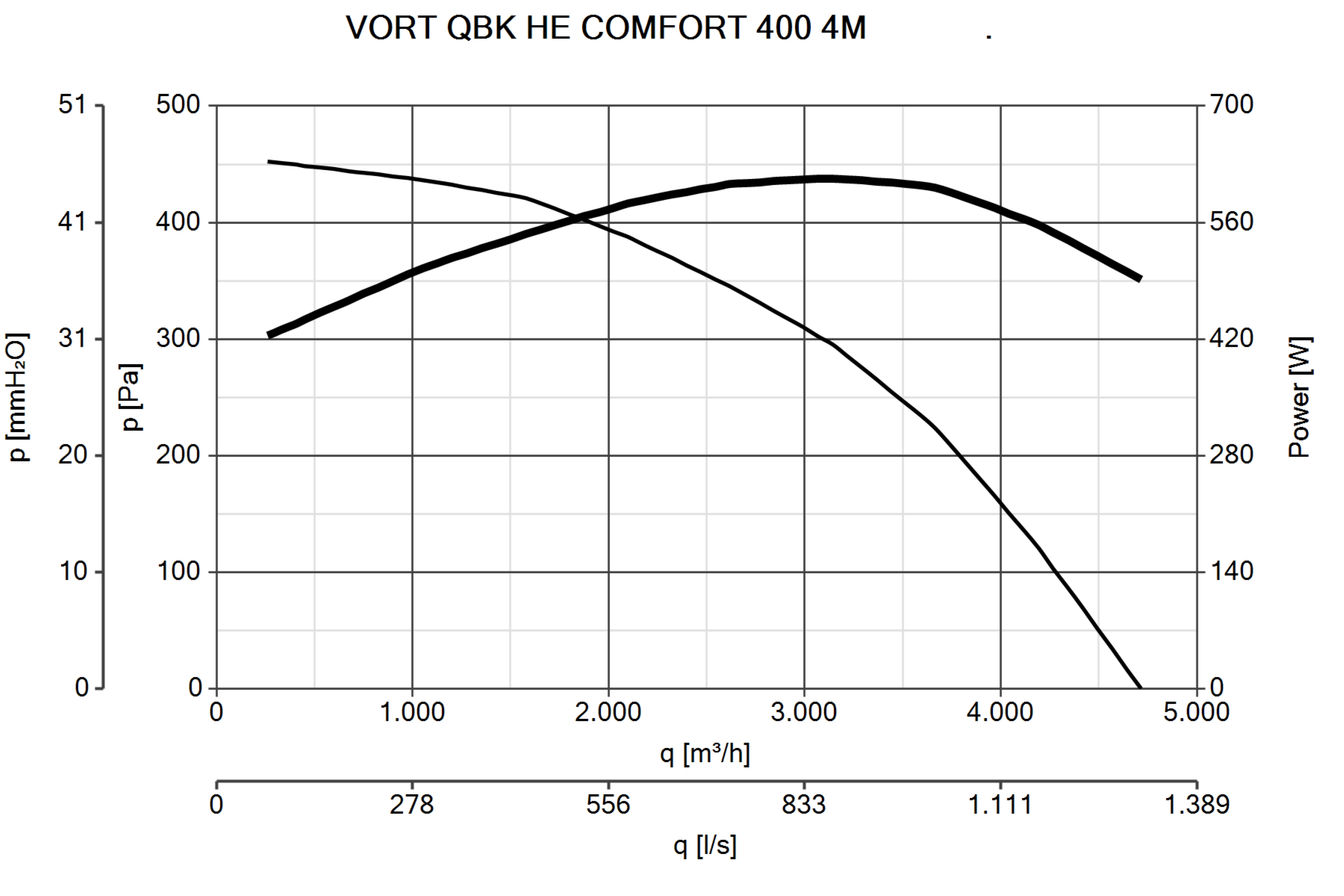

Curves
Absorbed Current max (A)
3,98
Absorbed Power max (W)
610
Frequency (Hz)
50
Max ambient temperature for continuous operation (°C)
50
Motor Class
F
Motor IP protection
55
Voltage (V)
230
Weight (Kg)
52,60
Delivery max (l/s)
1310
Delivery max (m³/h)
4715
Pressure max (mmH2O)
46,10
Pressure max (Pa)
452,1
RPM
1440
Sound power level Lw [dB(A)]
73,00
Sound Pressure level Lp [dB (A)] 3m
52,5
Type of heat recovery system HRS:
nessuno
Type of drive:
con variatore di velocità: VSD
Declared typology:
UVNR-U
Supplier's name or trade mark:
Vortice
SFPint [W/m3/s]
1.021,75
Efficienza termica del recupero di calore [%]
N.A.
Portata nominale [m3/s]
0,85
Potenza elettrica assorbita effettiva [KW]
0,87
Face velocity at design flow rate [m/s]:
6,77
Pressione esterna nominale (?ps, ext) [Pa]
0
Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
328,68
Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
N.A.
Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
34,13%
Declared maximum internal leakage rate of the casing of ventilation units [%]:
N.A.
Declared maximum external leakage rate of the casing of ventilation units [%]:
N.A.
Energy performance energy or classification of the filters:
N.A.
Description of visual filter warning:
N.A.
Casing sound power level (LWA) [dB(A)]:
73,00
Size A (mm)
690
Size B (mm)
690
Size C (mm)
690
Size D (mm)
590
Size E (mm)
590
Size F (mm)
398
Size G (mm)
25
Size H (mm)
345
Size I (mm)
50
Size J (mm)
717
Size K (mm)
717
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Contact us
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Documentation
Instruction booklet
Wiring diagram
Technical Data Sheet
Energy data
Regolamento N° 206/2012/UE
Accessories
Discover accessories related to the product
IREM INVERTER 4 M
Single-phase speed controller
Go to data sheet
QBK-HE RF 400
Round flexible joint for VORT QBK HE SAL 400 and VORT QBK HE COMFORT 400 fans.
Go to data sheet
SWT 16
Safety switch; max load: 16 A.
Go to data sheet
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet

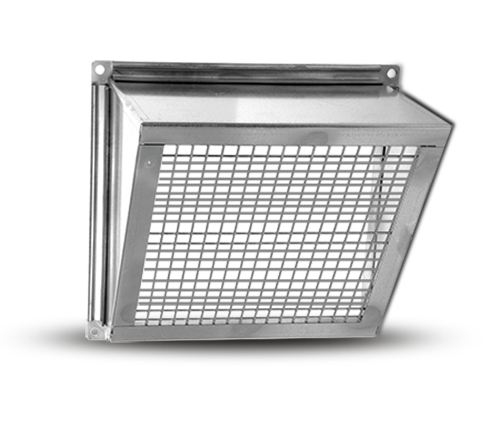

QBK-HE GP 400
Protection grid to be applied on outlet port of VORT QBK HE SAL 400 and VORT QBK HE COMFORT 400.
Go to data sheet
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet

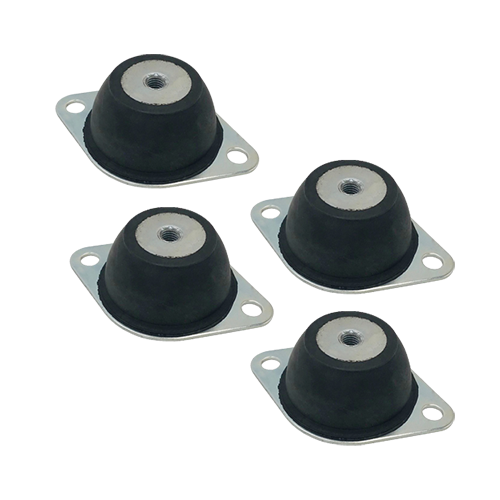

QBK SAVIB 75
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
IREM INVERTER 230 4.2A
Speed frequency inverter; single-phase power supply, three-phase output, maximum load 4.2 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Pr...
Go to data sheet
EMC-M FTR 2.5-4.2A
Go to data sheet

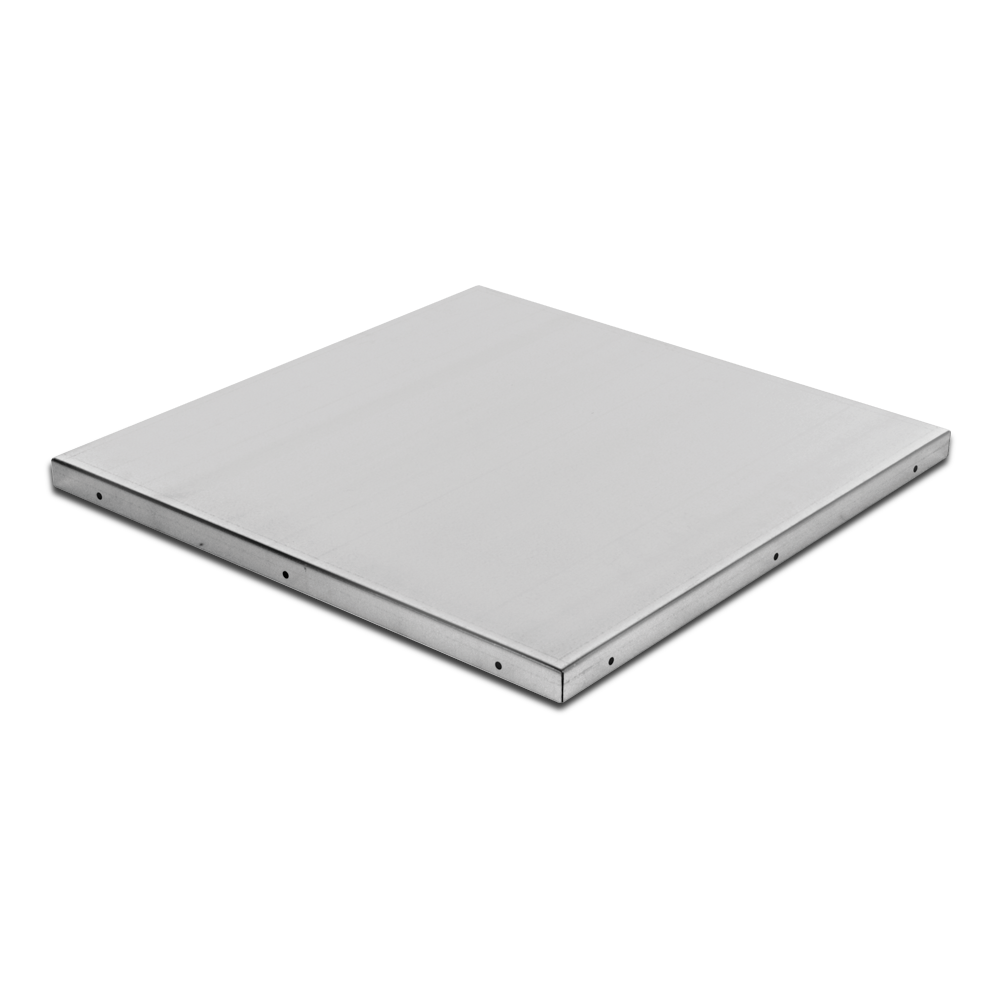

QBK-HE COMFORT RRC 400
Go to data sheet
QBK-HE MFL 400
Go to data sheet
