Technical Data Sheet
-
Absorbed current at 230 V (A)1,07
-
Absorbed current at 400 V (A)0,62
-
Frequency (Hz)50
-
Max absorbed power (W)200
-
Max ambient temperature for continuous operation (°C)60
-
Motor classF
-
Motor protection IP55
-
Voltage (V)230/400
-
Weight (Kg)31,50
-

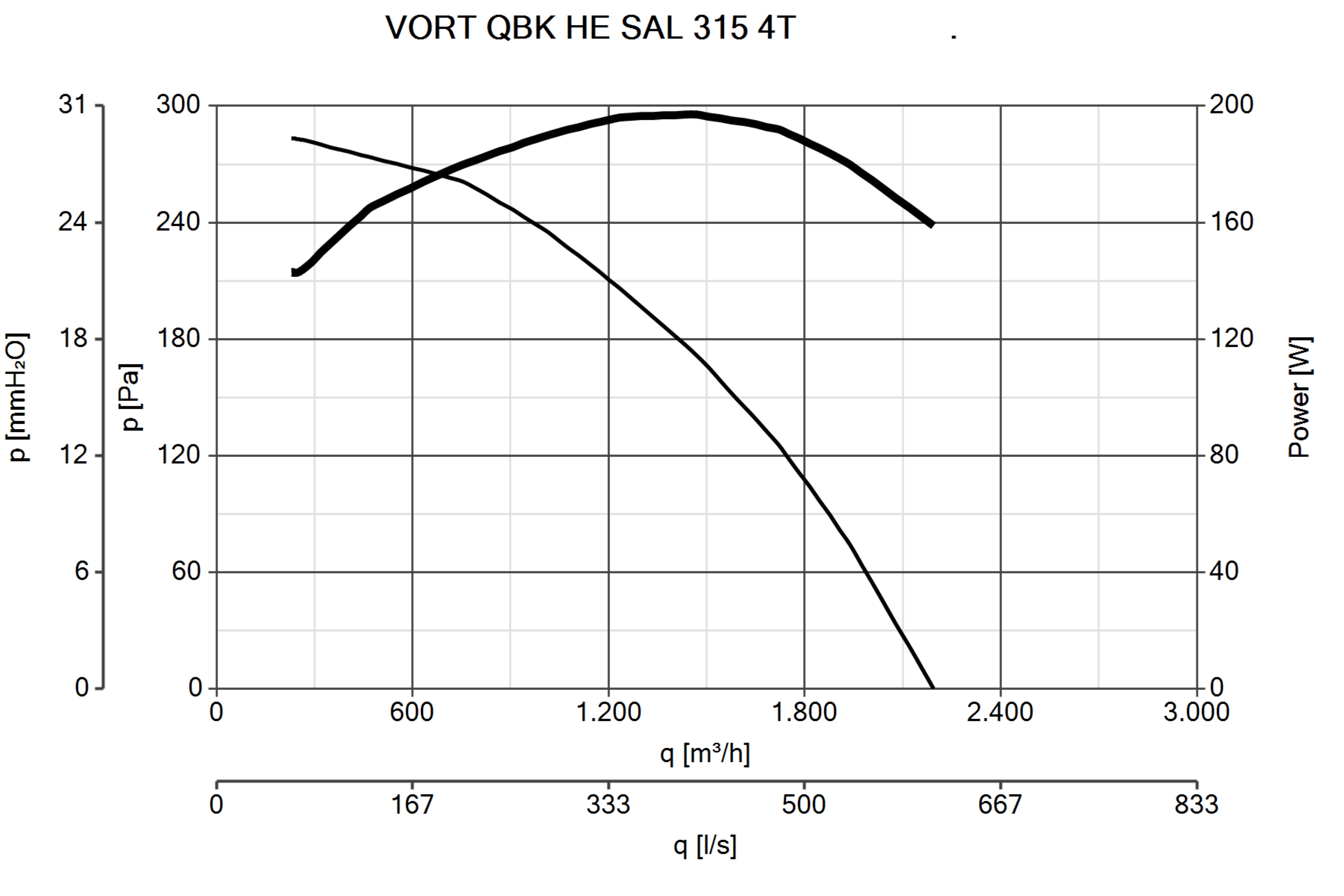

Max airflow (l/s)610
-
Max airflow (m³/h)2195
-
Max pressure (mmH2O)28,90
-
Max pressure (Pa)283,4
-
RPM1400
-
Sound power Lw [dB(A)]67,00
-
Sound pressure Lp [dB (A)] at 3 m46,5
-
Type of heat recovery system HRSnessuno
-
Drive typecon variatore di velocità: VSD
-
Declared typeUVNR-U
-
Supplier's name or trade mark:Vortice
-
SFPint (W/m3/s)456,41
-
Heat recovery nominal efficiency (%)N.A.
-
([m3/s)0,37
-
Real absorbed electric power (KW)0,17
-
Face velocity at nominal airflow (m/s)4,79
-
Nominal external pressure (Pa)0
-
Inner pressure drop of ventilation components (Pa)187,83
-
Inner pressure drop of components not related to ventilation (Pa)N.A.
-
Fan static efficiency according to 327/2011/UE regulation (%)42,97%
-
Declared maximum internal leakage rate of the ventilation unit casing (%)N.A.
-
Declared maximum external leakage rate of the ventilation unit casing (%)N.A.
-
Filter energy performance or classificationN.A.
-
Description of visual filter warning:N.A.
-
Casing sound power level LWA [dB(A)]67,00
-

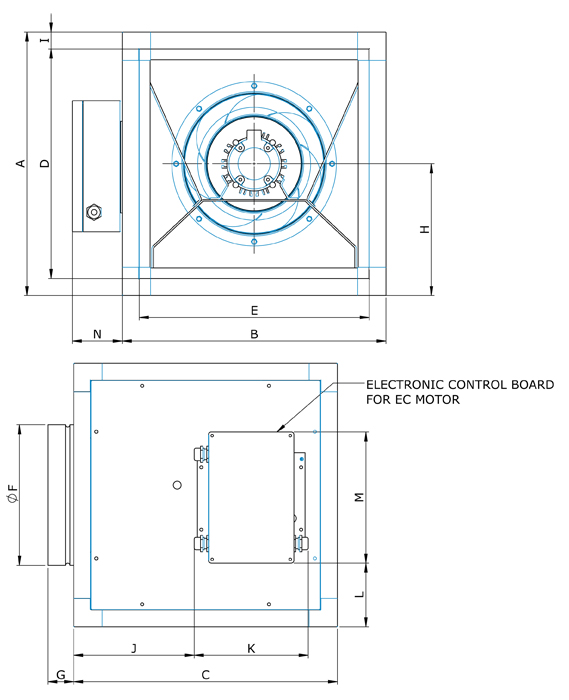

Size A (mm)525
-
Size B (mm)525
-
Size C (mm)525
-
Size D (mm)465
-
Size E (mm)465
-
Size F (mm)298
-
Size G (mm)46
-
Size H (mm)262,5
-
Size I (mm)30
