Code 45768

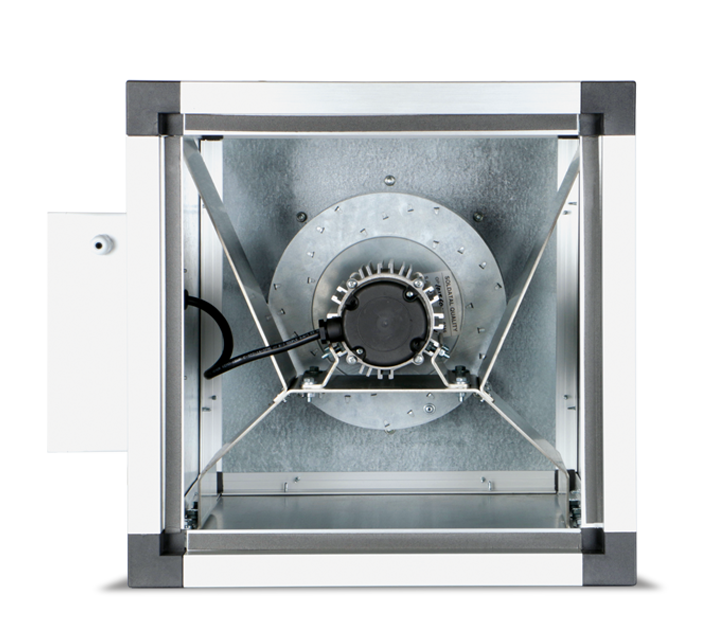

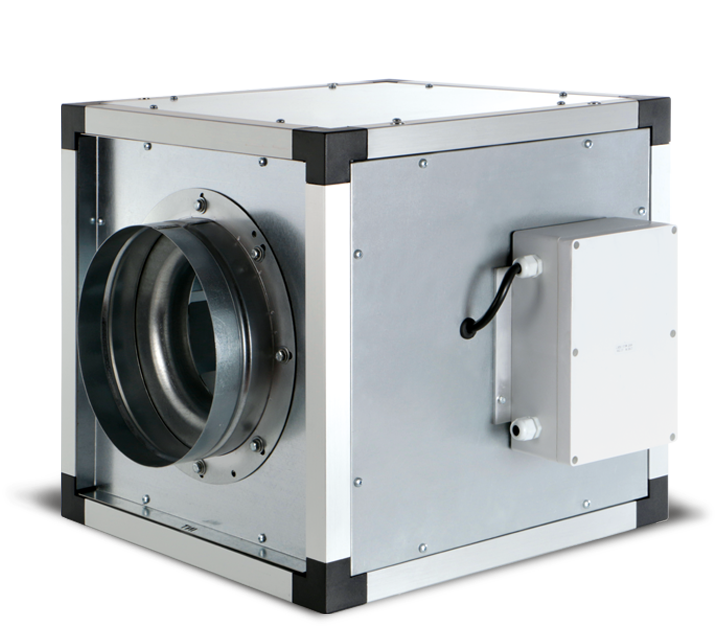

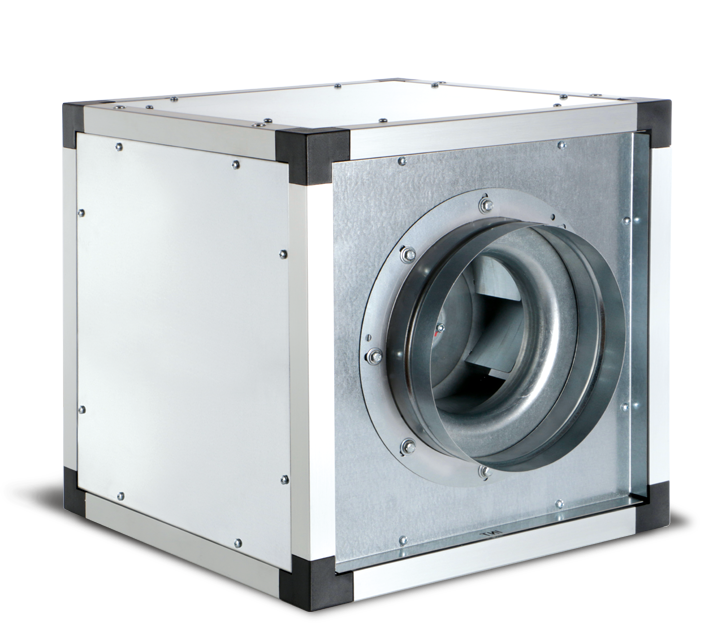

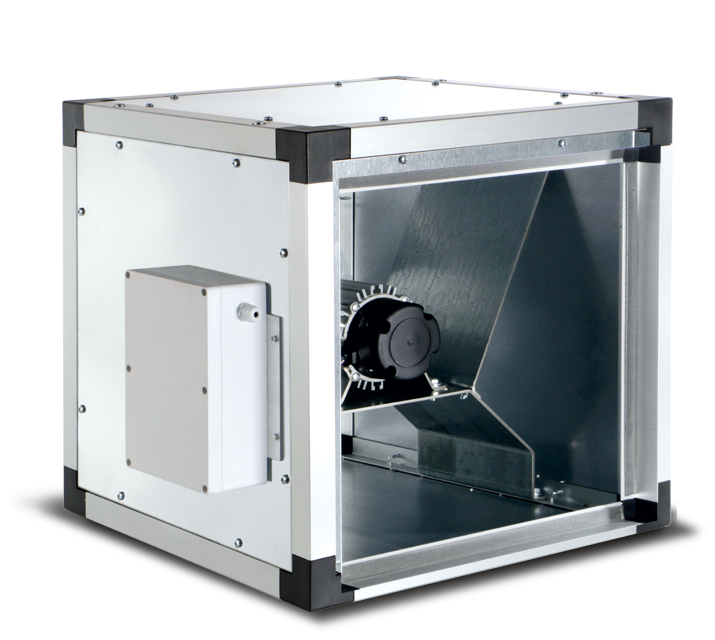

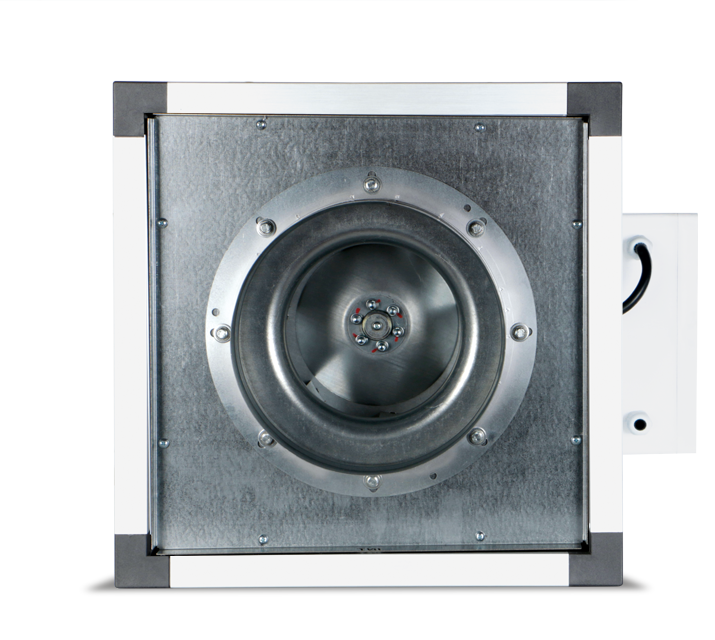

VORT QBK HE SAL 400 4M
High efficiency self-supporting cabinet fans
Description
Certifications
Technical Data Sheet
Accessories
Documentation
70_EN_45768_Libretti_Istruzioni_5671084114__20-06-2022_177077
70_EN_45768_Libretti_Istruzioni_5671084491___22-04-2024_184680
70_EN_45768_Libretti_Istruzioni_5571084281__05-06-2019_152536
70_EN_45768_Libretti_Istruzioni_5571084220__27-03-2019_150499
70_EN_45768_Libretti_Istruzioni_5471084950__17-4-2018_140346
70_EN_45768_Libretti_Istruzioni_5571084504__28-02-2020_164830
70_EN_45768_Libretti_Istruzioni_5571084129__26-10-2018_146199
70_EN_45768_Libretti_Istruzioni_5571084690__09-10-2020_165719
70_EN_45768_Libretti_Istruzioni_5571084415__29-11-2019_157699
70_EN_45768_Schemi_collegamento_E960510B__150459
70_EN_45768_Schemi_collegamento_E960510A_140377
70_EN_45768_Schemi_collegamento_E960510E_157789
70_EN_45768_Schemi_collegamento_E960510C__150591
70_EN_45768_Schemi_collegamento_E960510D__152463
Technical Data Sheet
Energy data
PRODUCTS
COMMERCIAL VENTILATION
BOX FANS
DUCTED
Description
Read full description
Close description
Certifications
CE
Download
EAC
Technical Data Sheet
Technical and performance data
Energy data

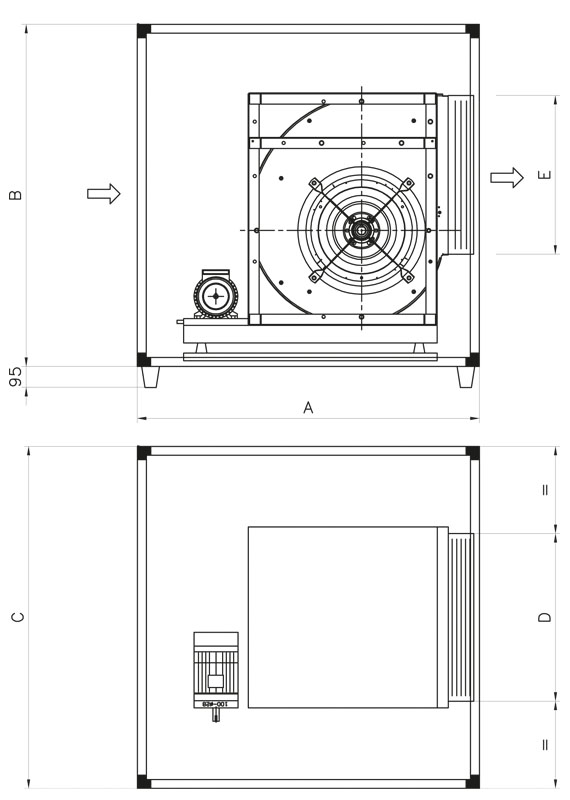

Dimensions

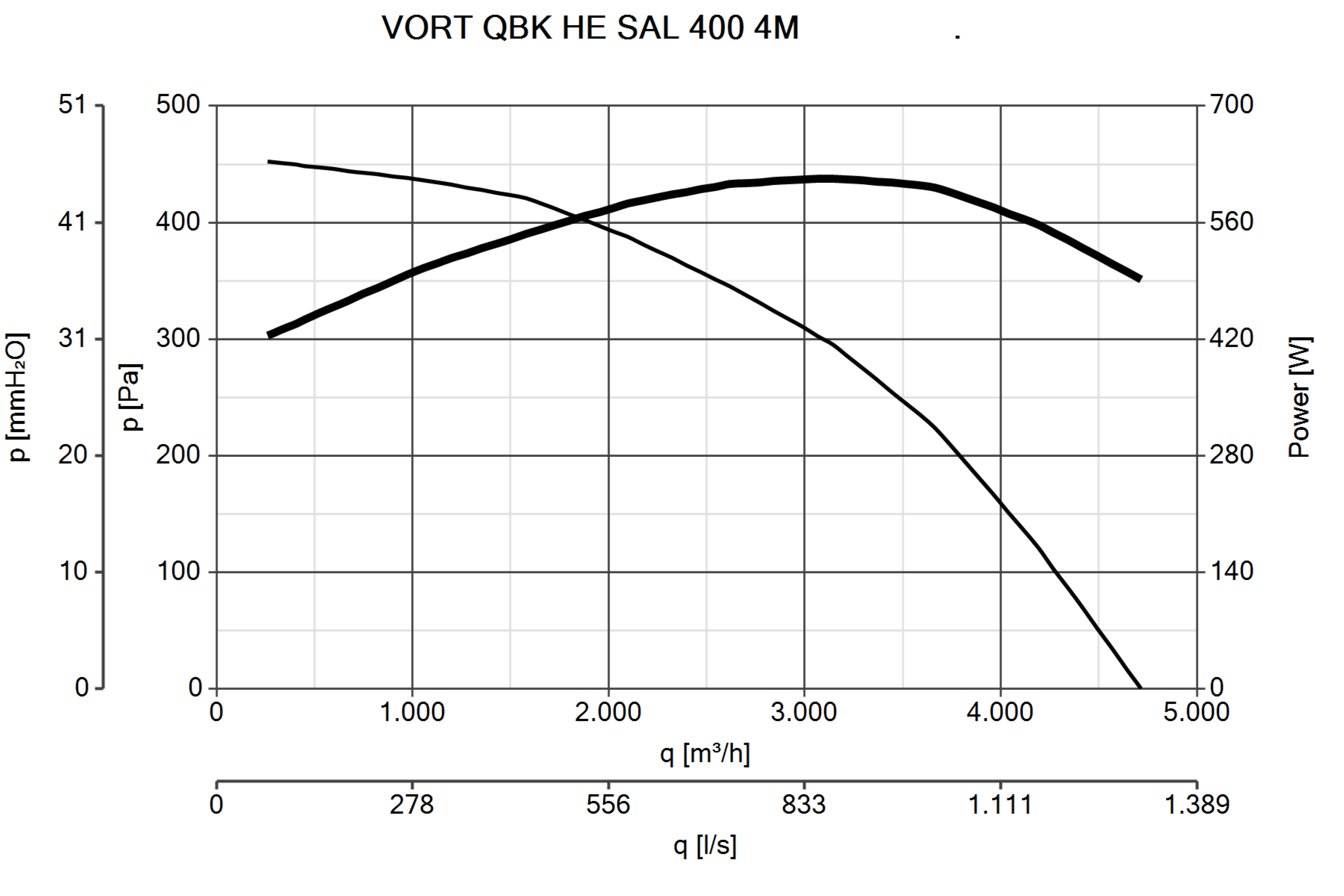

Curves
Frequency (Hz)
50
Max absorbed current (A)
3,98
Max absorbed power (W)
610
Max ambient temperature for continuous operation (°C)
50
Motor class
F
Motor protection IP
55
Voltage (V)
230
Weight (Kg)
49,40
Max airflow (l/s)
1310
Max airflow (m³/h)
4715
Max pressure (mmH2O)
46,10
Max pressure (Pa)
452,1
RPM
1440
Sound power Lw [dB(A)]
76,00
Sound pressure Lp [dB (A)] at 3 m
55,5
Type of heat recovery system HRS
nessuno
Drive type
con variatore di velocità: VSD
Declared type
UVNR-U
Supplier's name or trade mark:
Vortice
SFPint (W/m3/s)
1.021,75
Heat recovery nominal efficiency (%)
N.A.
([m3/s)
0,85
Real absorbed electric power (KW)
0,87
Face velocity at nominal airflow (m/s)
6,77
Nominal external pressure (Pa)
0
Inner pressure drop of ventilation components (Pa)
328,68
Inner pressure drop of components not related to ventilation (Pa)
N.A.
Fan static efficiency according to 327/2011/UE regulation (%)
34,13%
Declared maximum internal leakage rate of the ventilation unit casing (%)
N.A.
Declared maximum external leakage rate of the ventilation unit casing (%)
N.A.
Filter energy performance or classification
N.A.
Description of visual filter warning:
N.A.
Casing sound power level LWA [dB(A)]
76,00
Size A (mm)
650
Size B (mm)
650
Size C (mm)
650
Size D (mm)
590
Size E (mm)
590
Size F (mm)
398
Size G (mm)
46
Size H (mm)
325
Size I (mm)
30
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Contact us
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Documentation
70_EN_45768_Libretti_Istruzioni_5671084114__20-06-2022_177077
70_EN_45768_Libretti_Istruzioni_5671084491___22-04-2024_184680
70_EN_45768_Libretti_Istruzioni_5571084281__05-06-2019_152536
70_EN_45768_Libretti_Istruzioni_5571084220__27-03-2019_150499
70_EN_45768_Libretti_Istruzioni_5471084950__17-4-2018_140346
70_EN_45768_Libretti_Istruzioni_5571084504__28-02-2020_164830
70_EN_45768_Libretti_Istruzioni_5571084129__26-10-2018_146199
70_EN_45768_Libretti_Istruzioni_5571084690__09-10-2020_165719
70_EN_45768_Libretti_Istruzioni_5571084415__29-11-2019_157699
70_EN_45768_Schemi_collegamento_E960510B__150459
70_EN_45768_Schemi_collegamento_E960510A_140377
70_EN_45768_Schemi_collegamento_E960510E_157789
70_EN_45768_Schemi_collegamento_E960510C__150591
70_EN_45768_Schemi_collegamento_E960510D__152463
Technical Data Sheet
Energy data
Accessories
Discover accessories related to the product
SWT 16
Safety switch; max load: 16 A.
Go to data sheet
QBK-HE SAL RRC 400
Rain cover for VORT QBK HE SAL 400 fan.
Go to data sheet
QBK-HE GP 400
Protection grid to be applied on outlet port of VORT QBK HE SAL 400 and VORT QBK HE COMFORT 400.
Go to data sheet
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
QBK SAVIB 75
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet

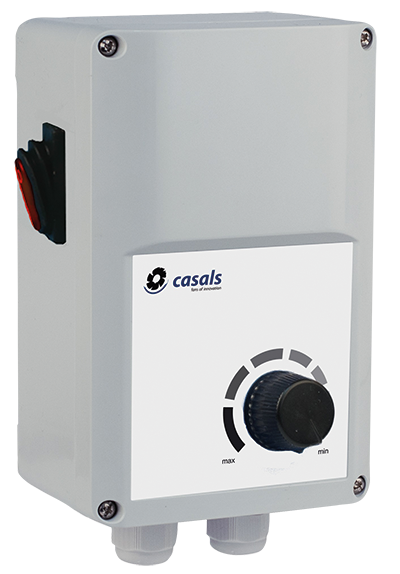

IREM INVERTER 4 M
Single-phase speed controller
Go to data sheet
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet
QBK-HE RF 400
Round flexible joint for VORT QBK HE SAL 400 and VORT QBK HE COMFORT 400 fans.
Go to data sheet
QBK-HE MFL 400
Go to data sheet
EMC-M FTR 2.5-4.2A
Go to data sheet
