Description

Read full descriptionClose description

Certifications

  • CE CE
  • EAC EAC
Regolamento N° 206/2012/UE Regolamento N° 206/2012/UE

Technical Data Sheet

  • Absorbed Current max (A)
    1,93
  • Absorbed Power max (W)
    340
  • Frequency (Hz)
    50
  • Max ambient temperature for continuous operation (°C)
    50
  • Motor Class
    F
  • Motor IP protection
    55
  • Voltage (V)
    230
  • Weight (Kg)
    38,30

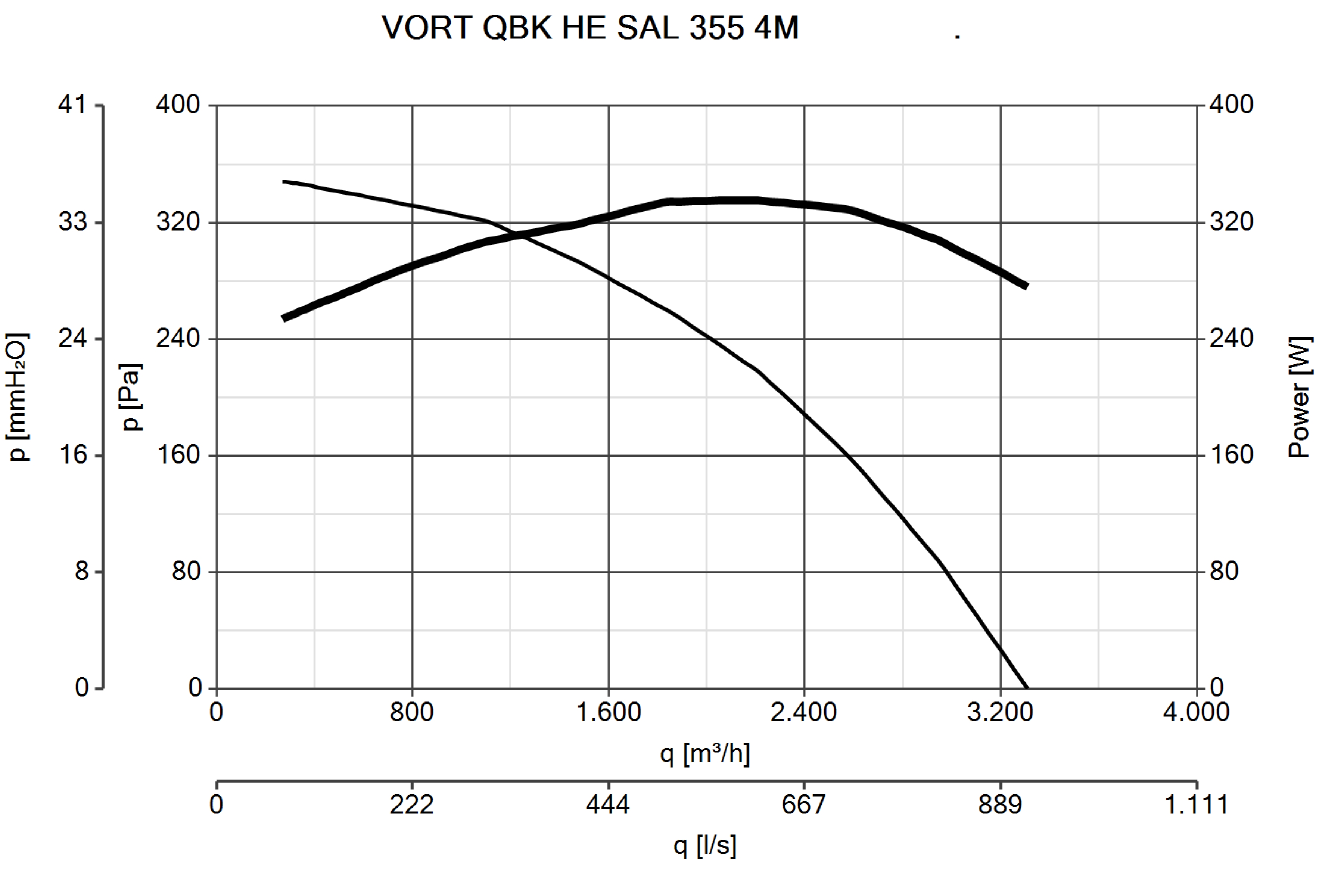

  • Delivery max (l/s)
    919
  • Delivery max (m³/h)
    3310
  • Pressure max (mmH2O)
    35,50
  • Pressure max (Pa)
    348,1
  • RPM
    1390
  • Sound power level Lw [dB(A)]
    71,00
  • Type of heat recovery system HRS:
    nessuno
  • Type of drive:
    con variatore di velocità: VSD
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint [W/m3/s]
    723,76
  • Efficienza termica del recupero di calore [%]
    N.A.
  • Portata nominale [m3/s]
    0,57
  • Potenza elettrica assorbita effettiva [KW]
    0,42
  • Face velocity at design flow rate [m/s]:
    5,81
  • Pressione esterna nominale (?ps, ext) [Pa]
    0
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    240,96
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    N.A.
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    35,29%
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    N.A.
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    N.A.
  • Energy performance energy or classification of the filters:
    N.A.
  • Description of visual filter warning:
    N.A.
  • Casing sound power level (LWA) [dB(A)]:
    71,00
  • Size A (mm)
    585
  • Size B (mm)
    585
  • Size C (mm)
    585
  • Size D (mm)
    525
  • Size E (mm)
    525
  • Size F (mm)
    353
  • Size G (mm)
    46
  • Size H (mm)
    292,5
  • Size I (mm)
    30
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

SWT 16
SWT 16
Safety switch; max load: 16 A.
QBK-HE SAL RRC 355
QBK-HE SAL RRC 355
Rain cover for VORT QBK HE SAL 355 fan.
QBK-HE GP 355                          .
QBK-HE GP 355 .
Protection grid to be applied on outlet port of VORT QBK HE SAL 355 and VORT QBK HE COMFORT 355 fans.
QBK F
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
QBK SAVIB 40
QBK SAVIB 40
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
IREM INVERTER 4 M
IREM INVERTER 4 M
Single-phase speed controller
POT
POT
Potentiometer for installation in Standard DIN box.
QBK-HE RF 355
QBK-HE RF 355
Round flexible joint for VORT QBK HE SAL 355 and VORT QBK HE COMFORT 355 fans.
QBK-HE MFL 355
QBK-HE MFL 355

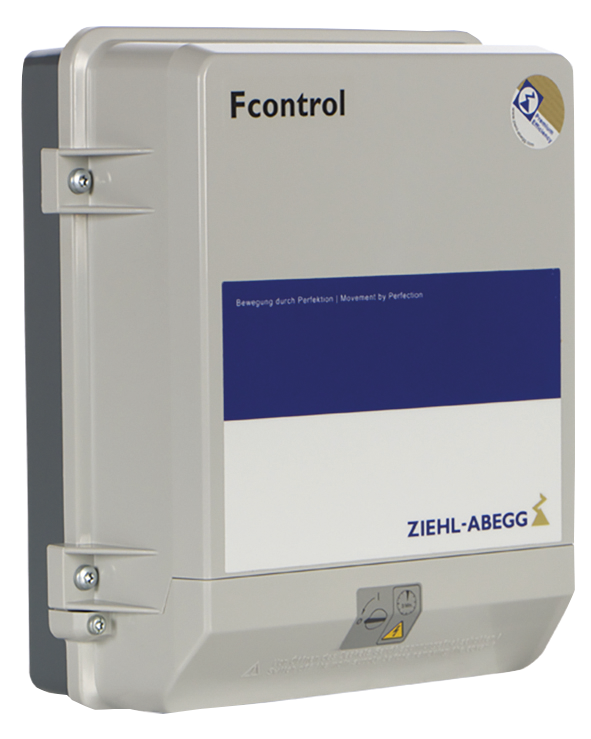

IREM INVERTER 230 2.5A
IREM INVERTER 230 2.5A
Speed frequency inverter; single-phase power supply, three-phase output, maximum load 2.5 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Pr...
EMC-M FTR 2.5-4.2A
EMC-M FTR 2.5-4.2A
