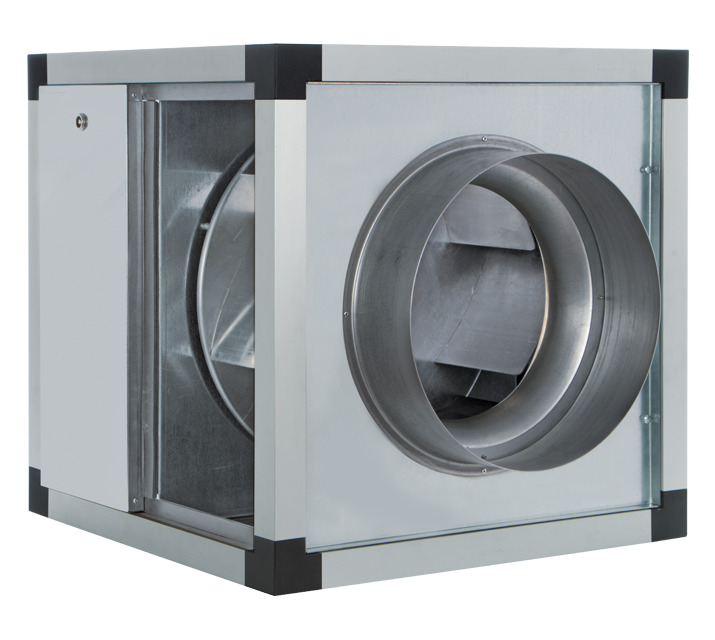

VORT QBK-SAL KC T 400

Cabinet fans designed to extract hot, humid and dirty air

Description

• Cabinet: frames made of aluminium profiles; sandwich panels made of zinc-coated, 0,6 mm thick steel plates, lined with 23 mm thick rockwool.

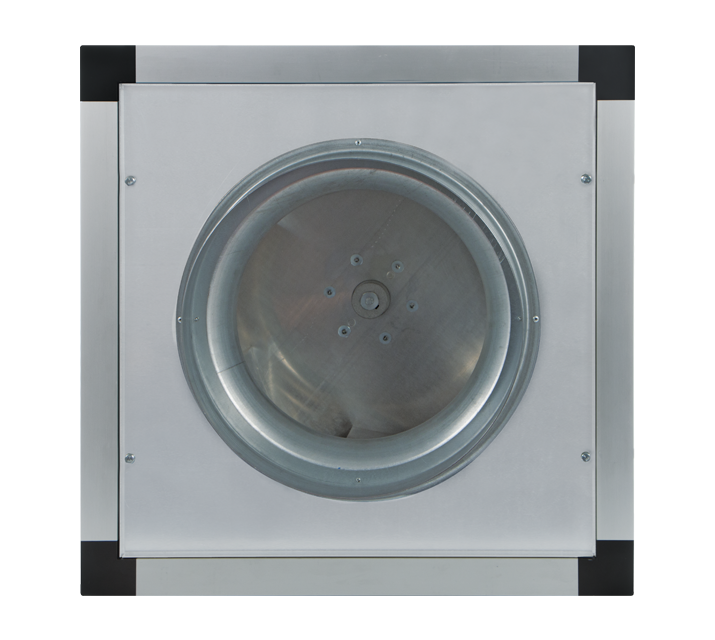

• Circular part of inlet.
• Rectangular outlet. A specific optional adapter allows connection to circular pipes.
• Nominal diameter 400 mm.

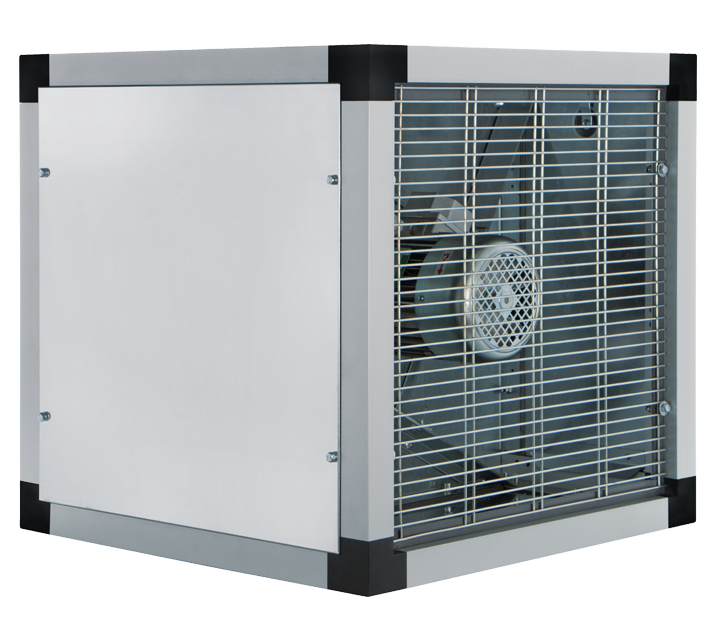

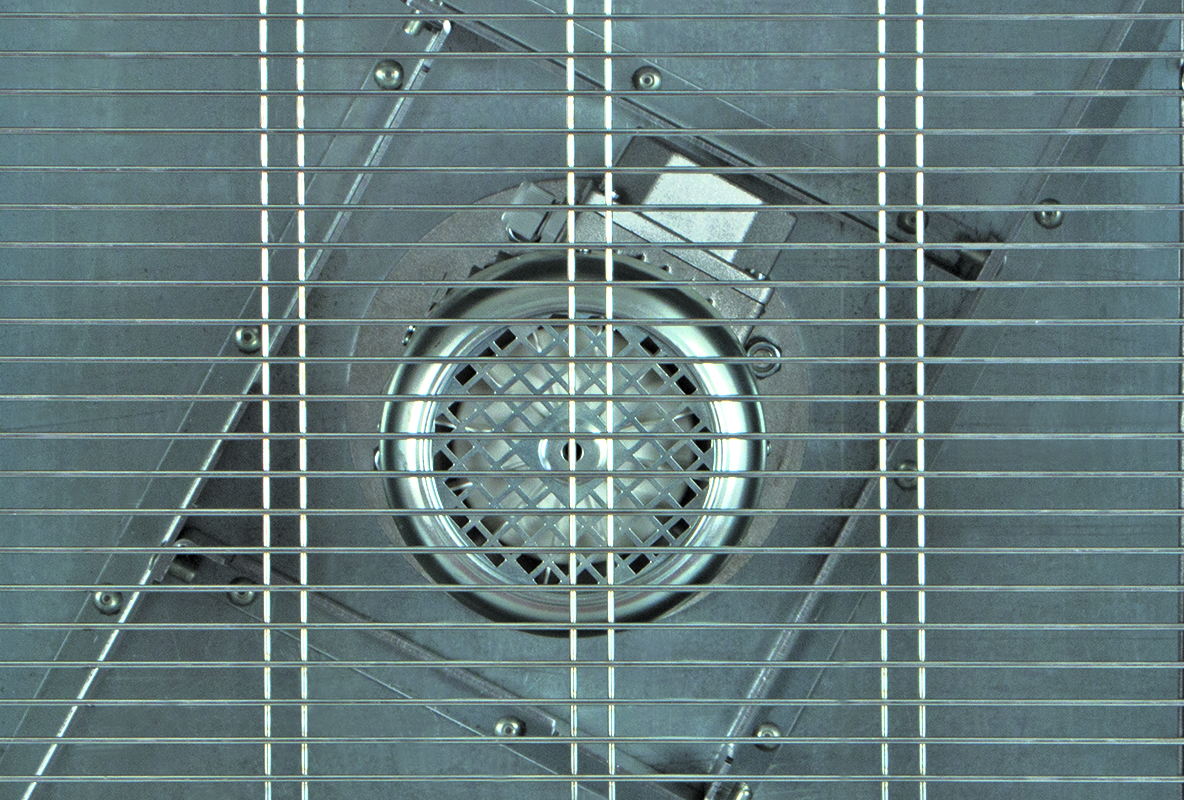

• Three-phase ball bearings AC motor, located outside the airflow and separated from the impeller by a metal panel.
• Backward curved centrifugal impeller, dynamically balanced (ISO 1940, 6.3 class).
• Motor protection guard made of galvanised steel.

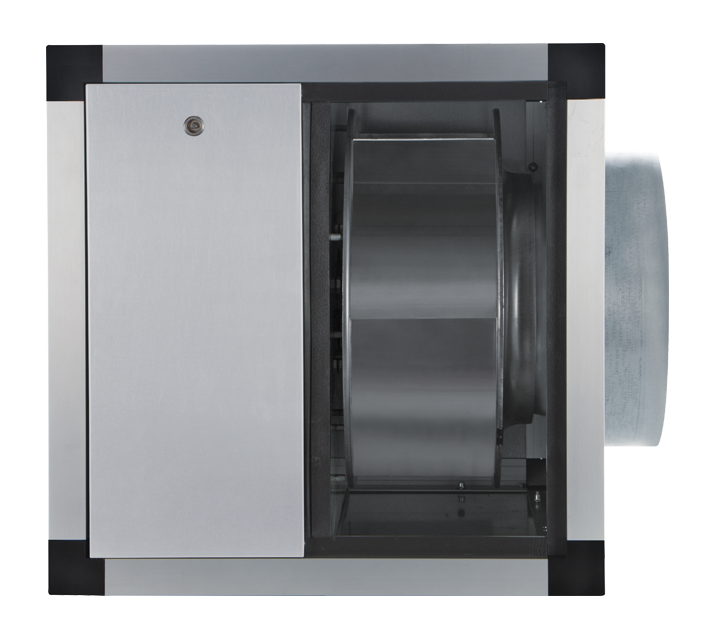

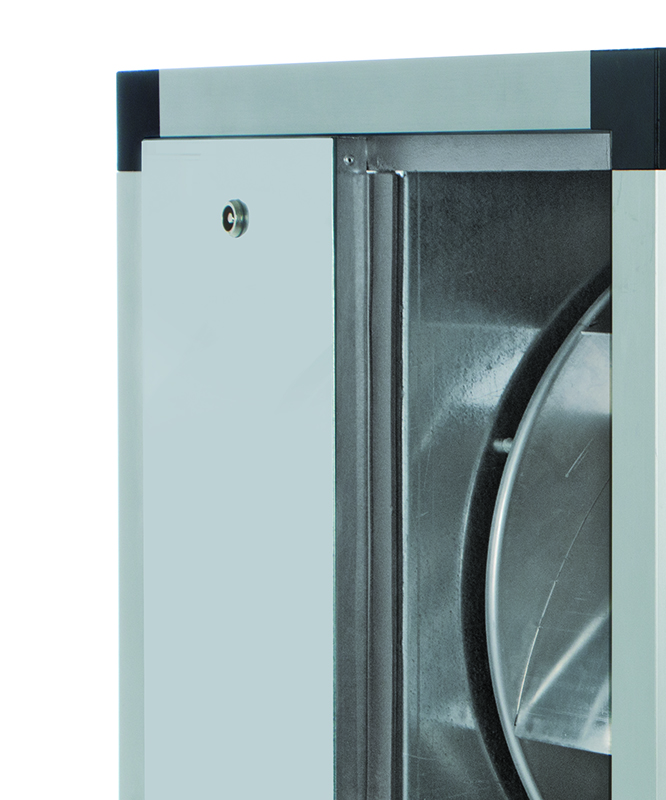

• Inspection panel with handle and triangular key.

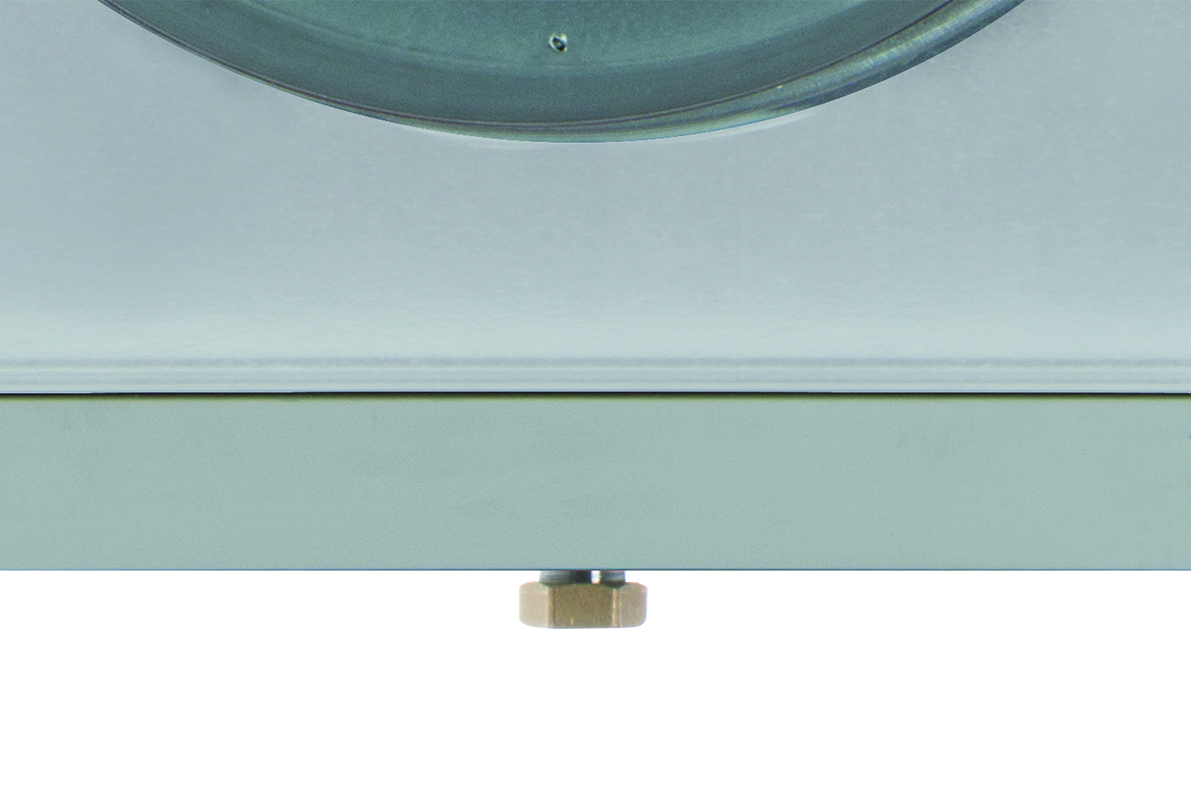

• Condensate tray made of galvanised steel with drain point and blank nut for draining.
• Temperature of extracted air up to 120°C.
• Maximum environment air temperature: 70 ° C (if controlled by IRT5 5 controller code 12855, the maximum temperature drops to 55 ° C).
• Speed adjustable through Vortice’s speed controllers.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current at 380 V (A)
    2,24
  • Absorbed Current at 415 V (A)
    2,22
  • Absorbed Power at 380 V (W)
    1225
  • Absorbed Power at 415 V (W)
    1295
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    55
  • Max ambient temperature for continuous operation (°C)
    70
  • Max Temperature of Exhaust Air (Continuous Operation)
    120
  • Motor Class
    F
  • Motor IP protection
    55
  • Nominal Diameter (mm)
    400
  • Number of Poles
    4
  • Voltage (V)
    380-415
  • Weight (Kg)
    68
  • Delivery max (l/s)
    1805
  • Delivery max (m³/h)
    6500
  • Pressure max (mmH2O)
    63.7
  • Pressure max (Pa)
    625
  • RPM
    1390
  • Sound power level Lw [dB(A)]
    82,9
  • Sound Pressure level Lp [dB (A)] 3m
    62,4

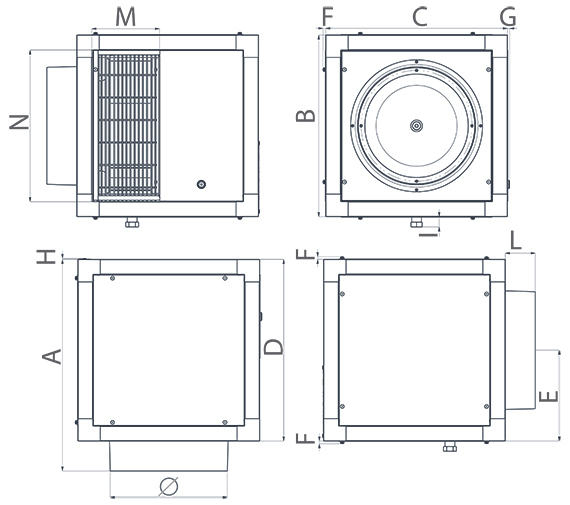

  • Size A (mm)
    731
  • Size B (mm)
    650
  • Size C (mm)
    650
  • Size D (mm)
    650
  • Size E (mm)
    325
  • Size F (mm)
    8
  • Size G (mm)
    6
  • Size H (mm)
    3
  • Size I (mm)
    28
  • Size L (mm)
    82
  • Size M (mm)
    290
  • Size N (mm)
    570
  • Size O (mm)
    Ø 398
