Code 45662

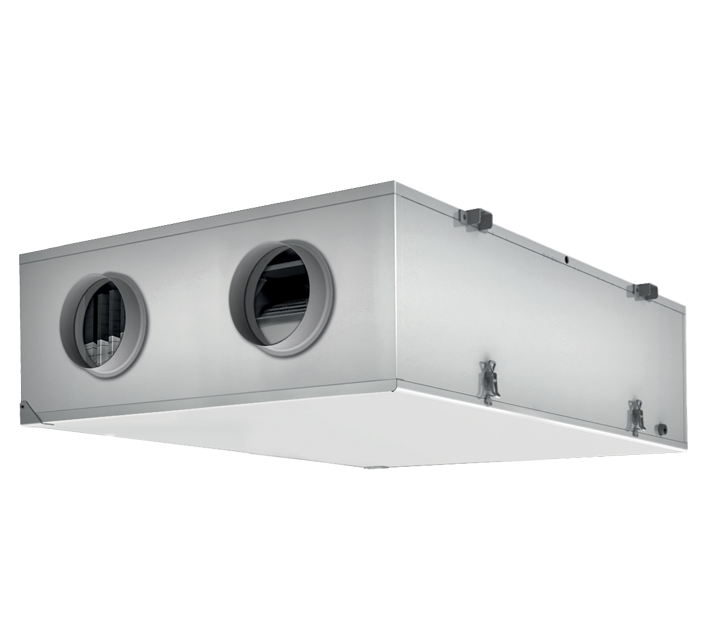

VORT NRG FLAT 1000

Description

Read full descriptionClose description

Technical Data Sheet

  • Filter class on extract
    M5
  • Filter class on supply
    F7
  • Frequency (Hz)
    50
  • Max absorbed power (W)
    720
  • Nominal power (W)
    600
  • Number of phases (Ph)
    1
  • Voltage (V)
    230
  • Weight (Kg)
    167
  • Max airflow (m³/h)
    1000
  • Sound power Lw [dB(A)]
    77,3
  • Sound pressure level at 1m Lp [dB (A)]
    61,8
  • Ø (mm)
    250

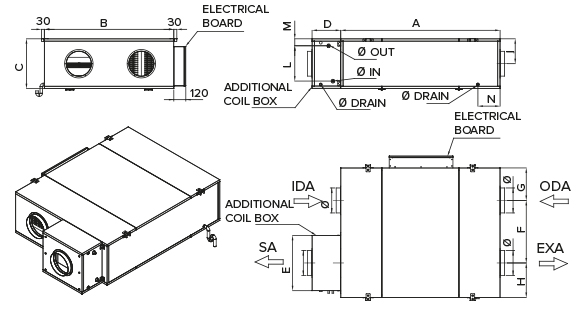

  • Size A (mm)
    1350
  • Size B (mm)
    1000
  • Size C (mm)
    380
  • Size D (mm)
    288
  • Size E (mm)
    535
  • Size F (mm)
    629
  • Size G (mm)
    283
  • Size H (mm)
    388
  • Size I (mm)
    198
  • Size L (mm)
    230
  • Size M (mm)
    71
  • Size N (mm)
    203
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
