Code 45387

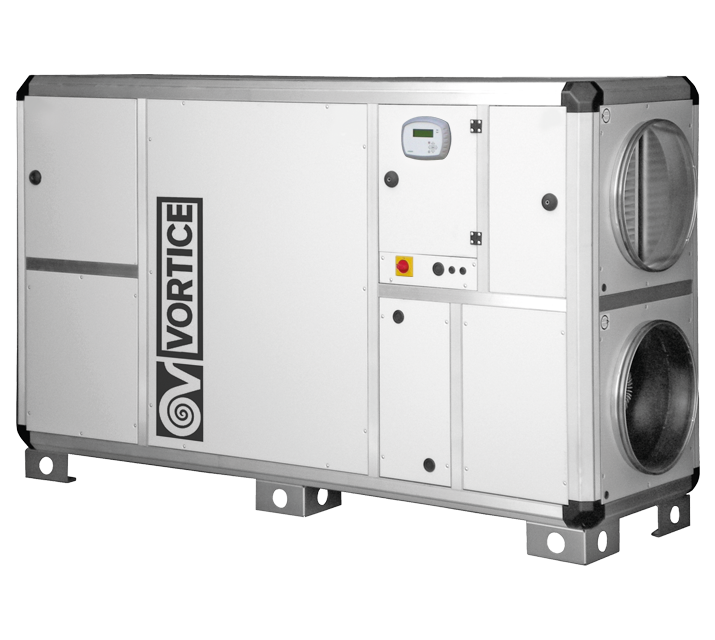

VORT NRG 6000 EC

Description

• Frames consisting of rounded aluminium profiles with built-in, polyamide made, spacers for class TB2 thermal break; corners made of reinforced polyamide; double skin (sandwich), 10/10 panels (inner side with galvanized steel sheet, outer side with pre-laquered metal sheet (RAL 7035) with protective film); insulation through 50 mm high density (M0) mineral wool.
• 2 EC motors, independently adjustable, external rotor type, integrating safety thermal cut-outs, with backward curved impellers directly driven by ball bearings; 2 speeds adjustable during the installation.
• Air-to-air, counter cross-flow, aluminium made heat exchanger whose high performance, certified by Eurovent, exceeds 90% according to EN 308 standard.
• Circular branch connections with lip seals to grant the system air tightness.
• 100% inner automatic by-pass.
• 2 filters, respectively G4 on extracted air (stale) and F7 on (fresh) air supply, both mounted upstream of inner components, on runners fitted with lip seals to ensure effective air tightness.
• Access to filters and inner components by security latch on removable panels.
• Inner slanted tray to assure the proper condensate removal at product horizontally installed.
• A dedicated pressure switch constantly controls the airflow across each fan, which indicates the presence of a fault on any external device which can be connected on the clean contact on board of the machine.
• A podlockable local circuit breaker, mounted on front panel, allows to stop the unit in case of fault.
• Potentiometers to independently adjust each fan speed.
Read full descriptionClose description

Technical Data Sheet

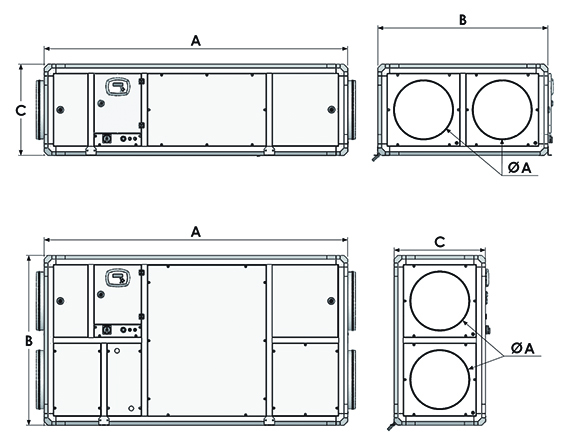

  • Size A (mm)
    2970
  • Size B (mm)
    1715
  • Size C (mm)
    1030
  • Size D (mm)
    455
  • Size E (mm)
    805
  • Size J (mm)
    645
  • Size K (mm)
    840
  • Size T (mm)
    1/2"
  • Vents diameter Ø A (mm)
    630
