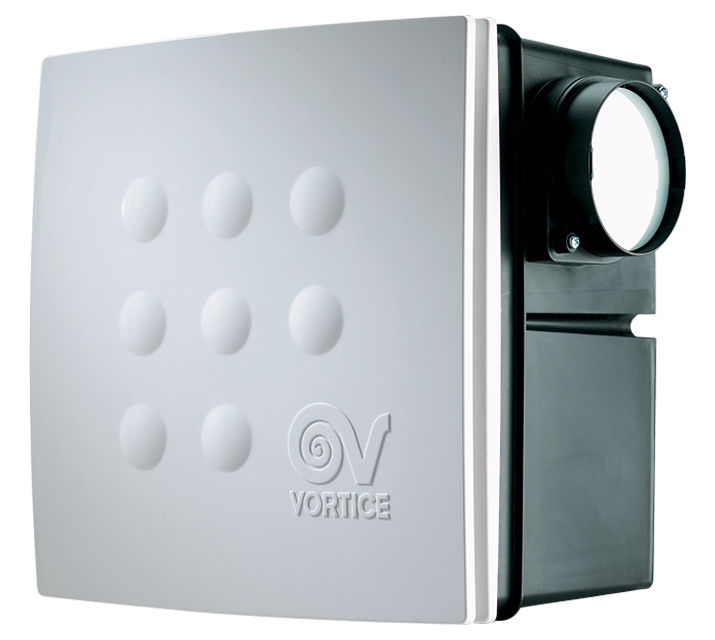

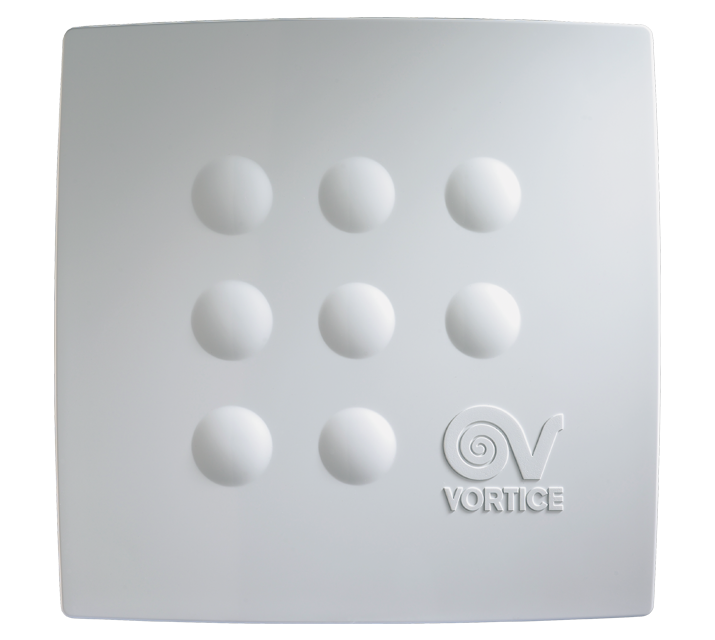

MICRO 100 I T - ES

Description

• Material used for parts not recessed into wall: white ABS plastic.
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• 2-speed EC (electronically controlled) brushless motor with shaft mounted on ball bearings and thermal overload cutout incorporated into pcb.
• Minimum air flow 75 m3/h
Maximum air flow 100 m3/h
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,12
Max absorbed current at Min speed (A)

0,08
Max absorbed power at Max speed (W)

15
Max ambient temperature for continuous operation (°C)

50
Ø Discharge hole (mm)

73,5
Power absorbed at 1st speed (W)

8
Voltage (V)

220-240
Weight (Kg)

1,93
Airflow at 1st speed (l/s)

21
Airflow at 1st speed (m³/h)

75

Max airflow at Max speed (l/s)

28
Max airflow at Max speed (m³/h)

100
Max pressure at Max speed (mmH20)

18
Max pressure at Max speed (Pa)

177
Max RPM

1430
Min RPM

1090
Pressure at 1st speed (mmH20)

9
Pressure at 1st speed (Pa)

88
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

31,8
Sound pressure at 3m at Max speed Lp [dB (A)]

38,4
Sound pressure level at 3 m at Max speed on extraction side [dB(A)]

37,8
Sound pressure level at 3 m at Min speed on extraction side [dB(A)]

29,9

Size A (mm)

258
Size C (mm)

34
Size D (mm)

92
Size E (mm)

90
Size F (mm)

64
Size G (mm)

60
Size H (mm)

118
Size L (mm)

26
