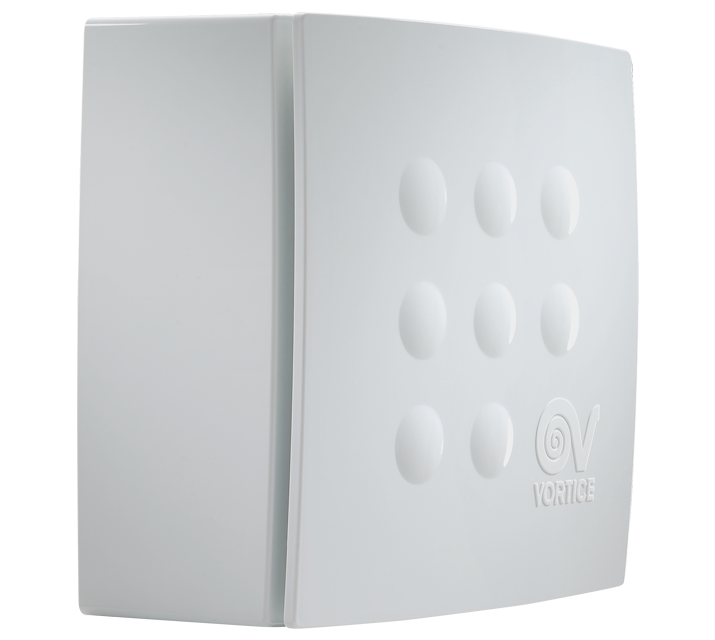

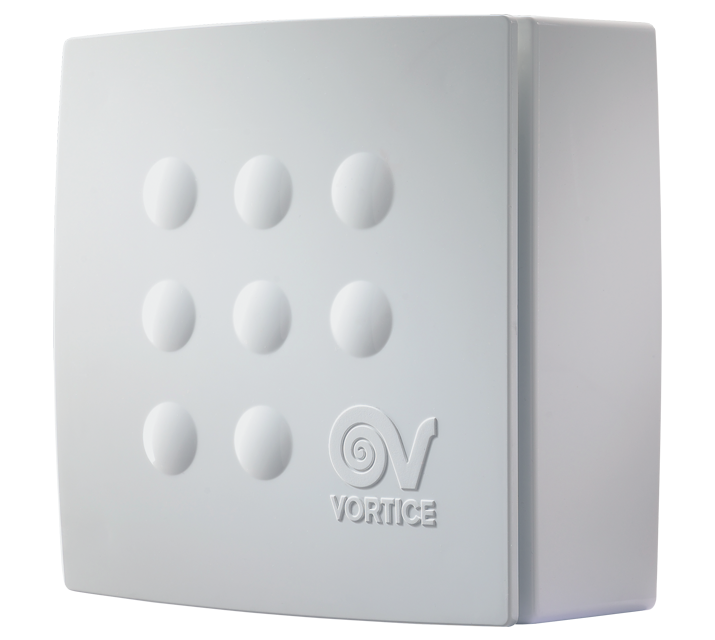

MEDIO T EP AC - Vortice

Description

• Material: white ABS plastic
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings.
• Nominal diameter 100 mm.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,18
Max absorbed current at Min speed (A)

0,14
Max absorbed power at Max speed (W)

29
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

25
Voltage (V)

220-240
Weight (Kg)

2,5

Airflow at 1st speed (l/s)

19,4
Airflow at 1st speed (m³/h)

70
Max airflow at Max speed (l/s)

33,3
Max airflow at Max speed (m³/h)

120
Max pressure at Max speed (mmH20)

33,5
Max pressure at Max speed (Pa)

328
Max RPM

1400
Min RPM

1070
Pressure at 1st speed (mmH20)

22
Pressure at 1st speed (Pa)

216
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

43,5
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]

36,7

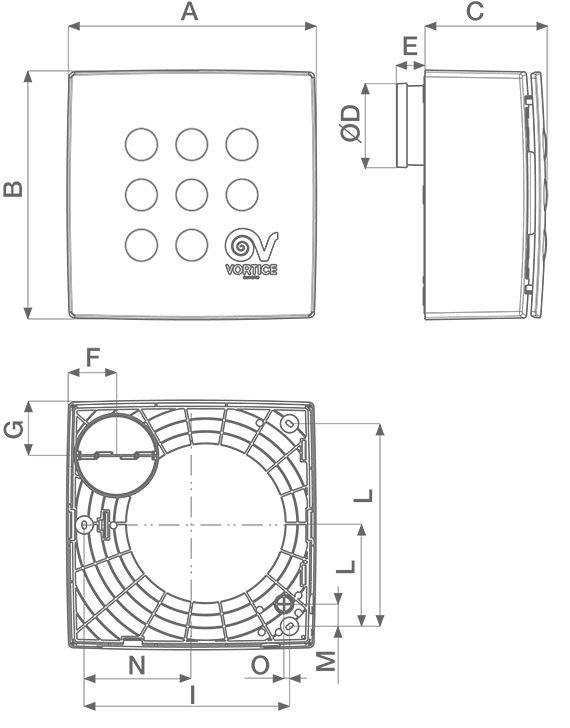

Size A (mm)

261
Size B (mm)

261
Size C (mm)

119
Size D (mm)

97
Size E (mm)

31
Size F (mm)

55.5
Size G (mm)

62
Size H (mm)

212
Size I (mm)

215
Size L (mm)

106
Size M (mm)

24
Size N (mm)

110
Size O (mm)

10
