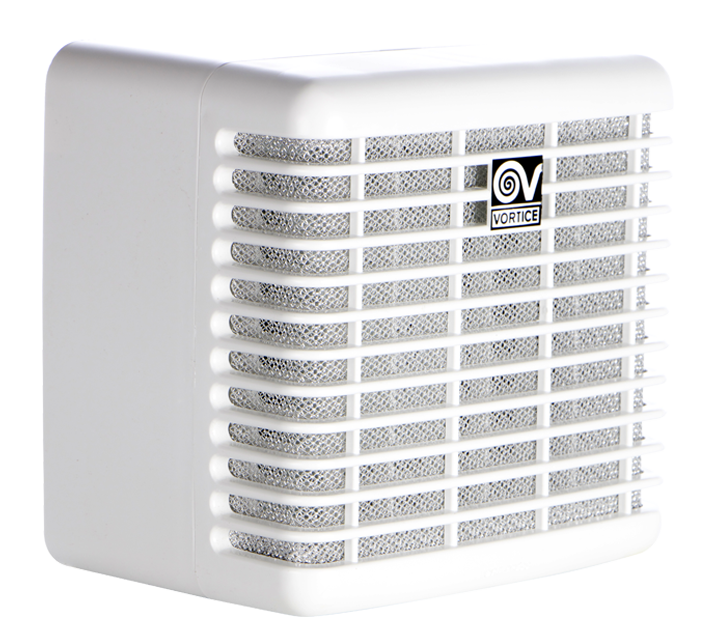

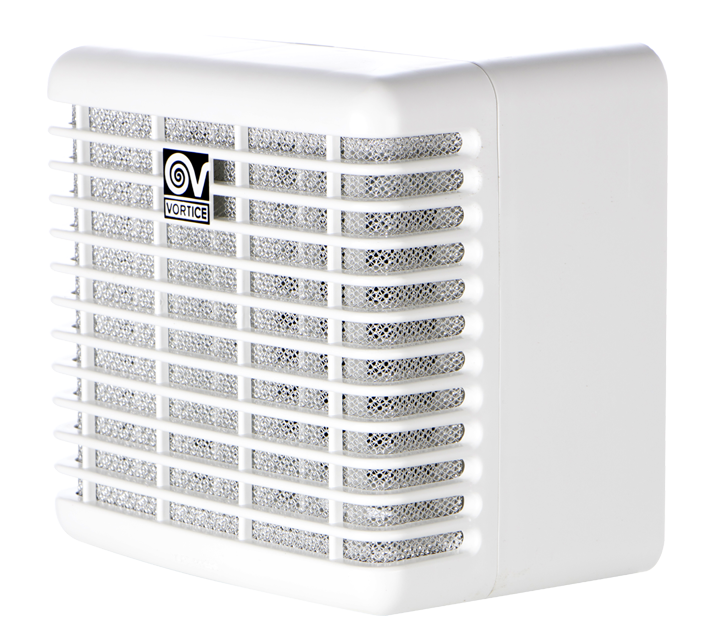

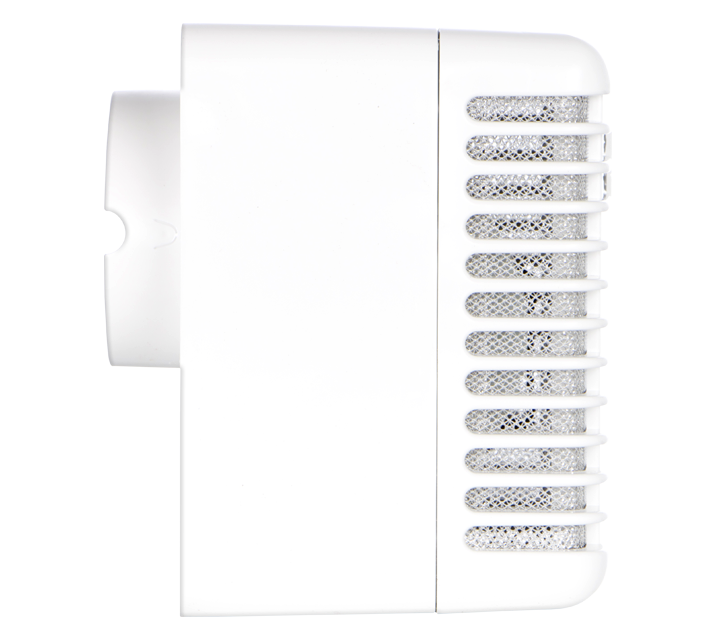

VORT PRESS 220 LL EP

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• 3 speed EC motor with shaft turning in ball bearings, coupled to a forward-bladed centrifugal impeller.
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Removable and washable metal mesh filter (dishwasher safe).
• Closure with silicone diaphragm designed to prevent backdraughts when the appliance is off.
• Vertical outlet port supplied as standard with spigot positionable horizontally by means of diverter.
• Outlet port equipped with non-return damper.
• Vortice speed controller.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,42
Max absorbed current at Min speed (A)

0,11
Max absorbed power at Max speed (W)

64
Max ambient temperature for continuous operation (°C)

40
Nominal diameter (mm)

100
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

14
Voltage (V)

220-240
Weight (Kg)

2,3

Airflow at 1st speed (l/s)

35
Airflow at 1st speed (m³/h)

125
Max airflow at Max speed (l/s)

72
Max airflow at Max speed (m³/h)

260
Max pressure at Max speed (mmH20)

35
Max pressure at Max speed (Pa)

343
Max RPM

2380
Min RPM

1200
Pressure at 1st speed (mmH20)

11
Pressure at 1st speed (Pa)

108
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

55
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]

43

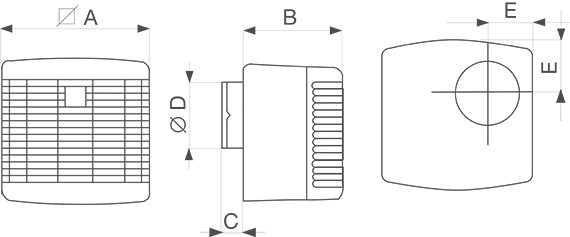

Size A (mm)

275
Size B (mm)

140
Size C (mm)

97
Size D (mm)

28
Size E (mm)

73
