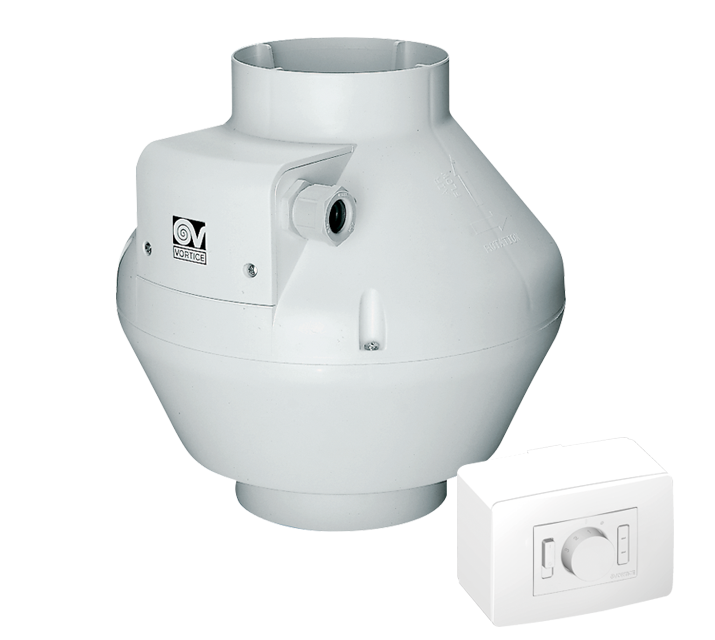

Description
• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 125 mm
• 3 speeds AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
• Minimum air flow 210 m3/h
Maximum air flow 360 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting
• Vortice speed controller
• Nominal diameter 125 mm
• 3 speeds AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
• Minimum air flow 210 m3/h
Maximum air flow 360 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting
• Vortice speed controller
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current at Max speed (A)0,22
-
Max absorbed power at Max speed (W)52
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)125
-
Ø Discharge hole (mm)122
-
Voltage (V)220-240
-
Weight (Kg)2,3
-
Max airflow at Max speed (l/s)83,3
-
Max airflow at Max speed (m³/h)300
-
Max pressure at Max speed (mmH20)34.7
-
Max pressure at Max speed (Pa)340
-
Max RPM2400
-
Sound pressure at 3m at Max speed Lp [dB (A)]56
-

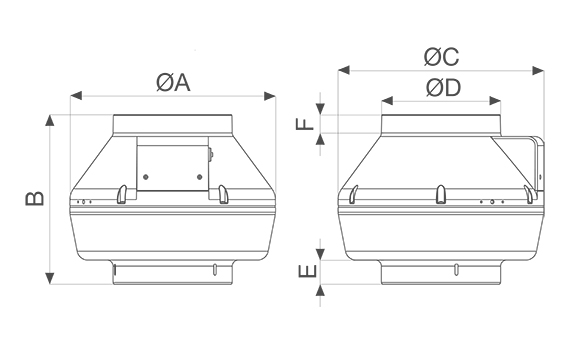

Size A (mm)250
-
Size B (mm)250
-
Size C (mm)250
-
Size D (mm)122
-
Size E (mm)30
-
Size F (mm)30
