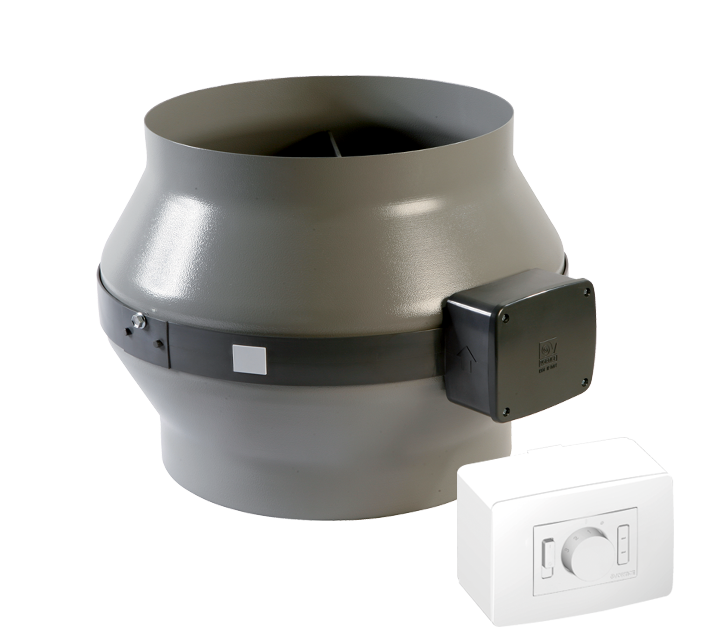

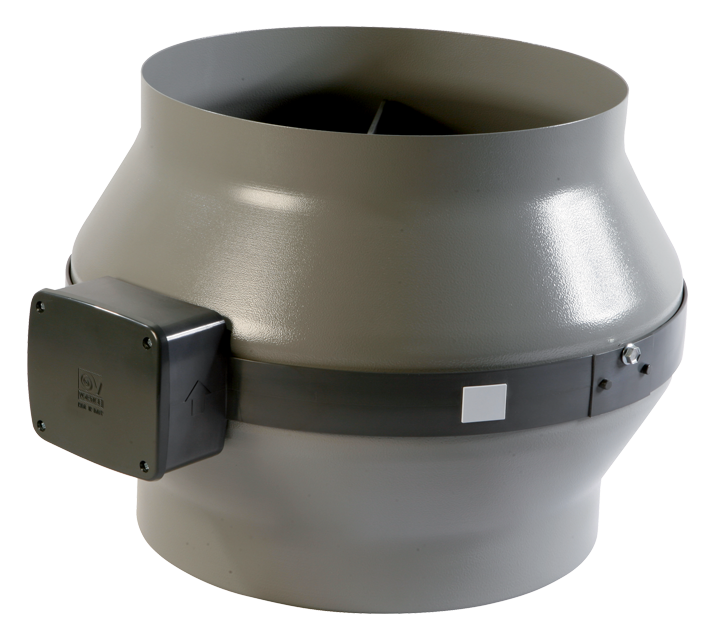

Description
• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 125 mm.
• 3 speeds AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impellers.
• Minimum air flow 280 m3/h
Maximum air flow 450 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• Zinc-coated steel brackets for wall mounting
• Vortice speed controller included.
• Nominal diameter 125 mm.
• 3 speeds AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impellers.
• Minimum air flow 280 m3/h
Maximum air flow 450 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• Zinc-coated steel brackets for wall mounting
• Vortice speed controller included.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,22
-
Max absorbed power at Max speed (W)51
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)125
-
Voltage (V)220-240
-
Weight (Kg)3,00
-
Max airflow at Max speed (l/s)100
-
Max airflow at Max speed (m³/h)360
-
Max pressure at Max speed (mmH20)35,7
-
Max pressure at Max speed (Pa)350
-
Max RPM2300
-
Sound pressure at 3m at Max speed Lp [dB (A)]45.9
-

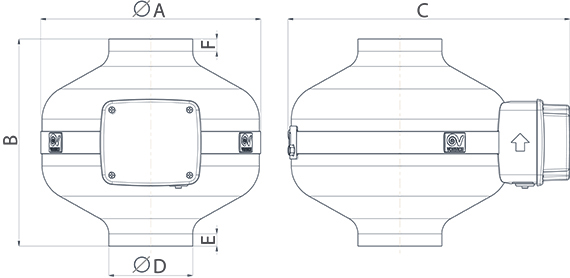

Size A (mm)255
-
Size B (mm)239
-
Size C (mm)300
-
Size D (mm)122
-
Size E (mm)23
-
Size F (mm)23
