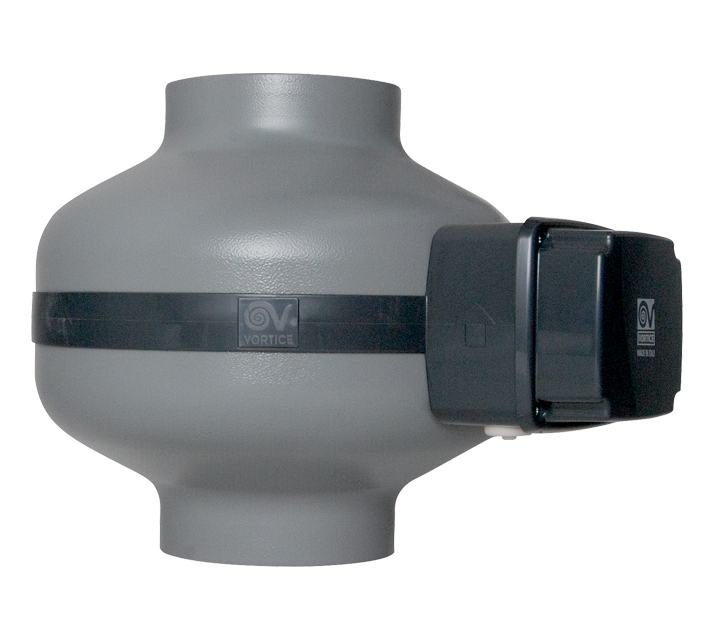

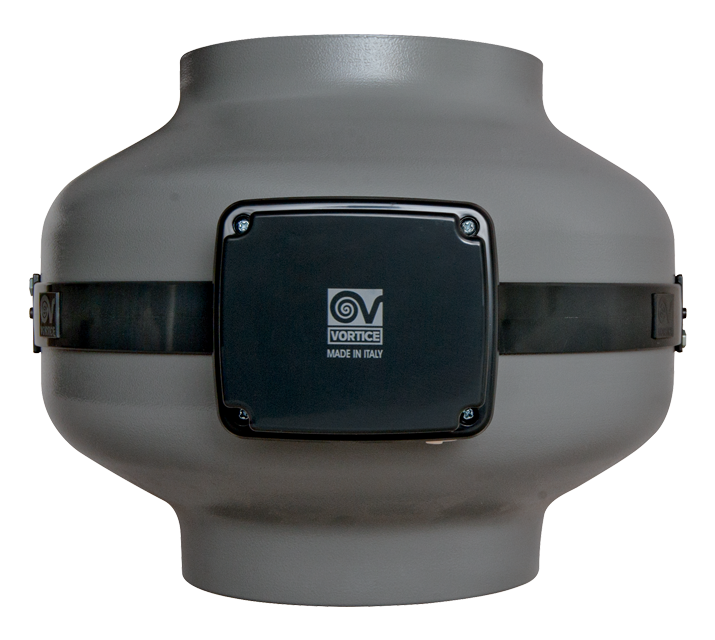

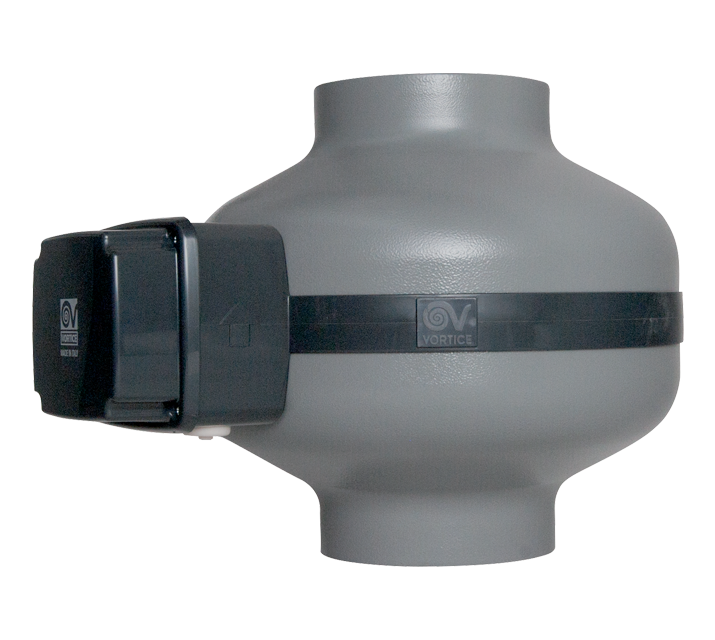

CA 200 ES - Vortice

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents
• Nominal diameter 200 mm
• High efficiency electronically controlled (EC) commutator motor coupled to a backward curved impeller, guaranteeing a wide range of adjustments and significantly reduced energy consumption, per unit of performance delivered.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• Zinc-coated steel brackets for wall mounting
• Speed control with 0-10 V signal

Read full descriptionClose description

Absorbed current at Max speed (reg. Min /Nominal/Max) (A)

0,30/0,93/1,05/
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)

0,21/0,43/0,55/
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)

30/105/120/
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)

20/44/58/
Frequency (Hz)

50
Insulation class

II°
IP

44
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

200
Voltage (V)

230
Weight (Kg)

4,6
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)

187/292/311/

Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)

675/1050/1120/
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)

580/770/880/
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)

161/214/244/
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)

20/47/50/
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)

196/461/490/
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)

15/26/31/
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)

147/255/304/
RPM at Max speed (reg. Min /Nominal/Max)

1385/2140/2240/
RPM at Min speed (reg. Min /Nominal/Max)

1210/1600/1760/
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]

34,8/46,7/47,6/
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]

32,1/38/40,8/

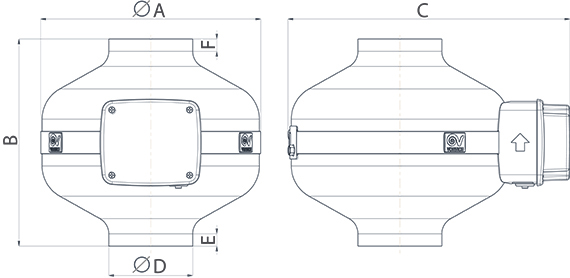

Size A (mm)

ø 347
Size B (mm)

275
Size C (mm)

422
Size D (mm)

ø 197
Size E (mm)

20
Size F (mm)

17
