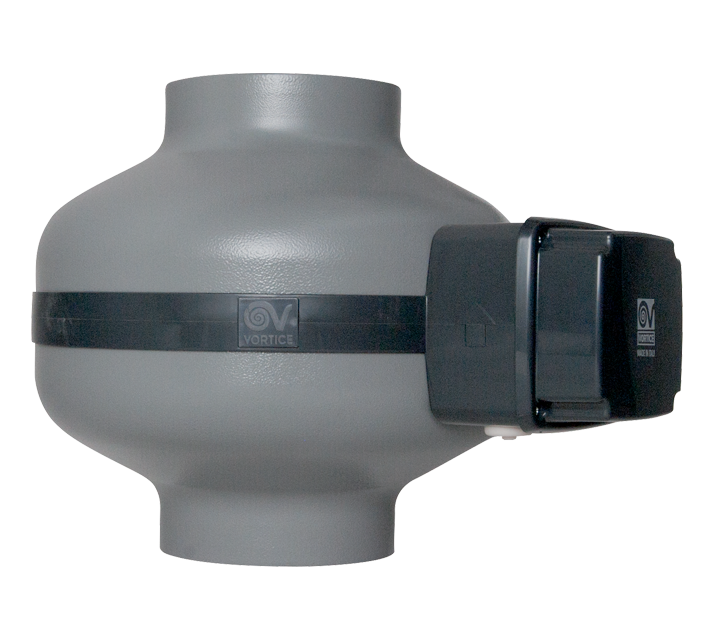

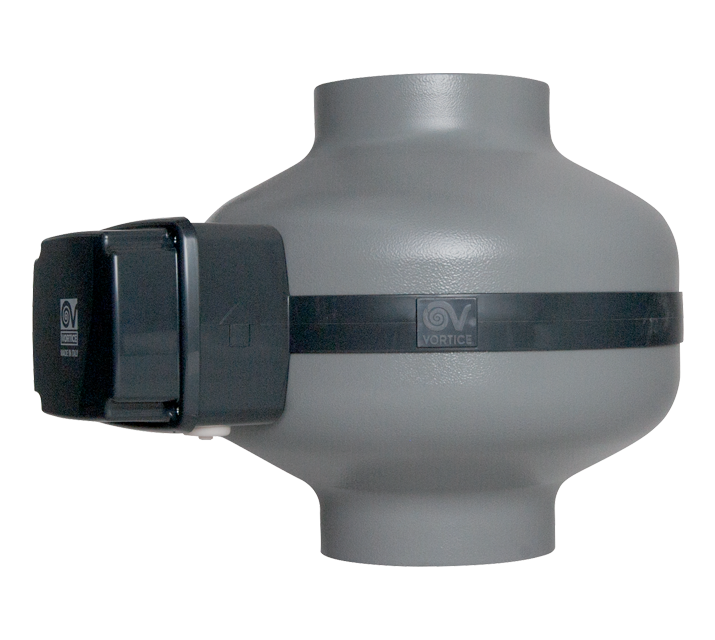

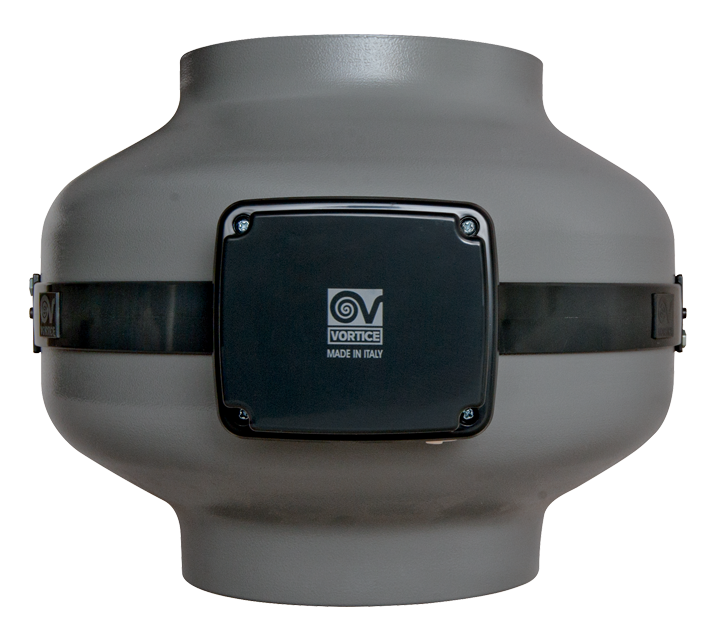

CA 150 ES - Vortice

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents
• Nominal diameter 150 mm
• High efficiency electronically controlled (EC) commutator motor coupled to a backward curved impeller, guaranteeing a wide range of adjustments and significantly reduced energy consumption, per unit of performance delivered.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• Zinc-coated steel brackets for wall mounting
• Speed control with 0-10 V signal

Read full descriptionClose description

Absorbed current at Max speed (reg. Min /Nominal/Max) (A)

0,30/0,93/1,05/
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)

0,21/0,43/0,55/
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)

30/105/120/
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)

20/44/58/
Frequency (Hz)

50
Insulation class

II°
IP

44
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

150
Voltage (V)

230
Weight (Kg)

4,5
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)

133/208/228/

Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)

480/750/820/
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)

420/550/630/
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)

117/153/175/
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)

22/51/56/
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)

216/500/549/
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)

17/29/36/
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)

167/284/353/
RPM at Max speed (reg. Min /Nominal/Max)

1420/2170/2260/
RPM at Min speed (reg. Min /Nominal/Max)

1230/1620/1800/
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]

34,3/47,3/48,1/
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]

30,3/38/41,4/

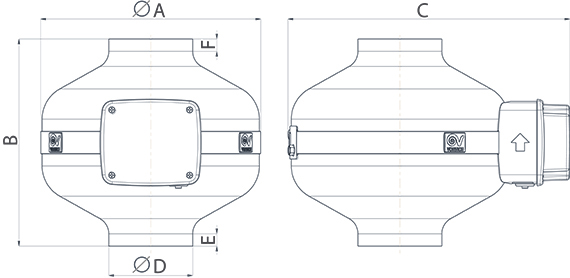

Size A (mm)

ø 347
Size B (mm)

275
Size C (mm)

422
Size D (mm)

ø 147
Size E (mm)

17
Size F (mm)

17
