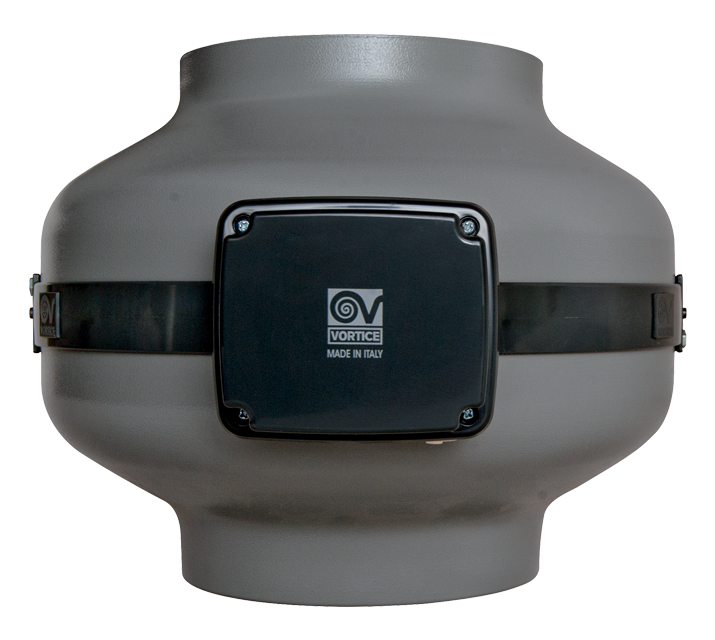

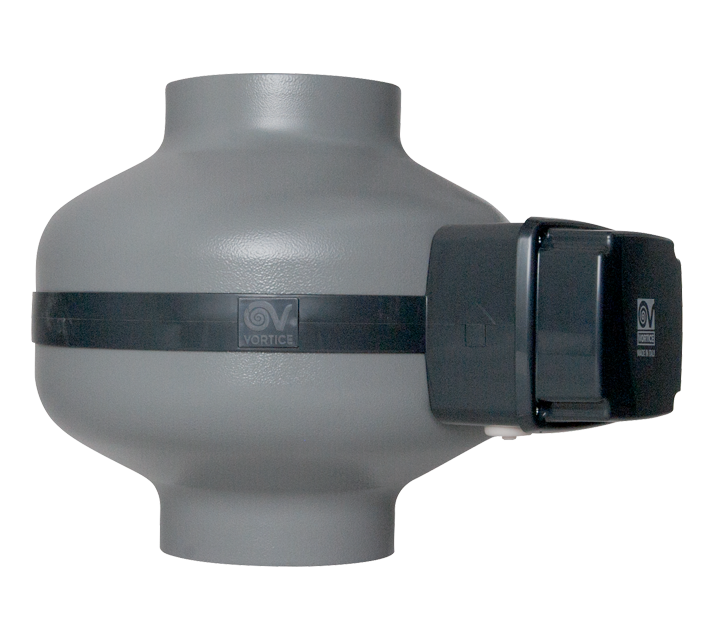

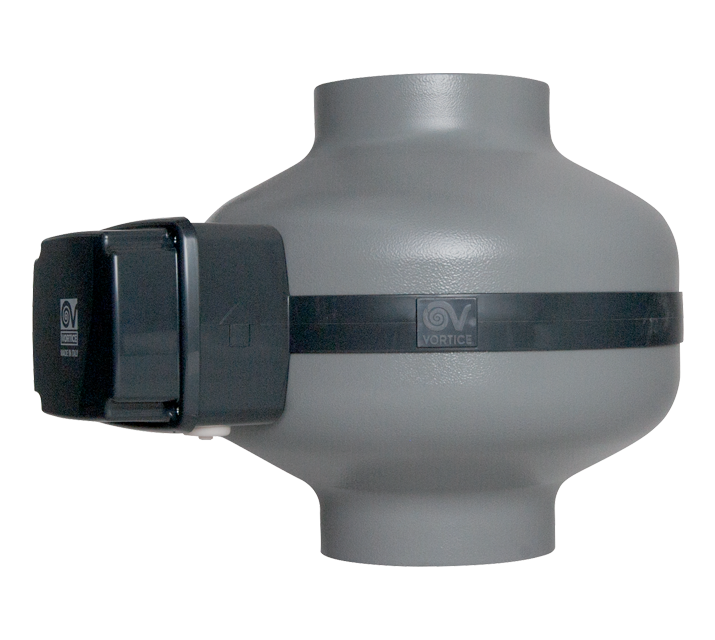

CA 100 ES - Vortice

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents
• Nominal diameter 100 mm
• High efficiency electronically controlled (EC) commutator motor coupled to a backward curved impeller, guaranteeing a wide range of adjustments and significantly reduced energy consumption, per unit of performance delivered.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• Speed control with 0-10 V signal.

Read full descriptionClose description

Absorbed current at Max speed (reg. Min /Nominal/Max) (A)

0,29/0,53/0,75/
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)

0,12/0,20/0,35/
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)

29/55/80/
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)

11/19/35/
Frequency (Hz)

50
Insulation class

II°
IP

44
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Voltage (V)

230
Weight (Kg)

2,7
Airflow at 1st speed (l/s)

61
Airflow at 1st speed (m³/h)

220
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)

75/94/105/
Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)

270/340/380/
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)

170/220/280/
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)

47/61/78/

Max airflow at Max speed (l/s)

106.9
Max airflow at Max speed (m³/h)

385
Max pressure at Max speed (mmH20)

49
Max pressure at Max speed (Pa)

480
Max RPM

2700
Min RPM

1690
Pressure at 1st speed (mmH20)

27
Pressure at 1st speed (Pa)

265
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)

37/49/51/
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)

363/480/500/
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)

16/27/43/
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)

157/265/422/
RPM at Max speed (reg. Min /Nominal/Max)

2020/2530/2880/
RPM at Min speed (reg. Min /Nominal/Max)

1310/1690/2140/
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]

36,8/43,4/46,9/
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]

24,9/35,4/38,5/

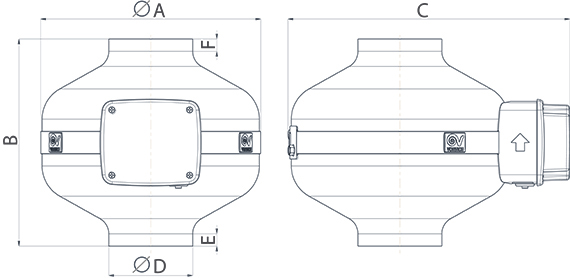

Size A (mm)

ø 255
Size B (mm)

239
Size C (mm)

330
Size D (mm)

ø 97
Size E (mm)

15
Size F (mm)

15
