Description
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,23
-
Max absorbed current at Min speed (A)0.13
-
Max absorbed Power at 60 Hz (W)100
-
Max absorbed power at Max speed (W)85
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)125
-
Power absorbed at 1st speed (W)25
-
Voltage (V)220-240
-
Weight (Kg)3,3
-
Airflow at 1st speed (l/s)44.4
-
Airflow at 1st speed (m³/h)160
-
Max airflow at Max speed (l/s)123.6
-
Max airflow at Max speed (m³/h)445
-
Max pressure at Max speed (mmH20)36.2
-
Max pressure at Max speed (Pa)355.9
-
Max RPM2445
-
Min RPM935
-
Pressure at 1st speed (mmH20)13.9
-
Pressure at 1st speed (Pa)136.5
-
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed25.5
-
Sound pressure at 3m at Max speed Lp [dB (A)]39.4
-

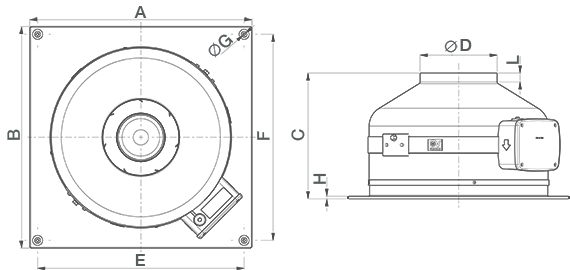

Size A (mm)334
-
Size B (mm)334
-
Size C (mm)210
-
Size D (mm)122
-
Size E (mm)304
-
Size F (mm)304
-
Size G (mm)5
-
Size H (mm)5
-
Size L (mm)23
