CA 100 WE D EP - Vortice

Description

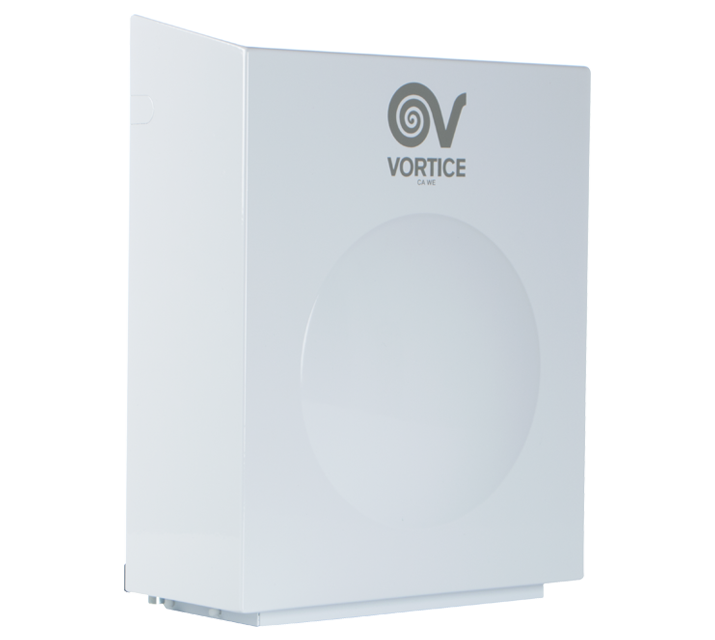

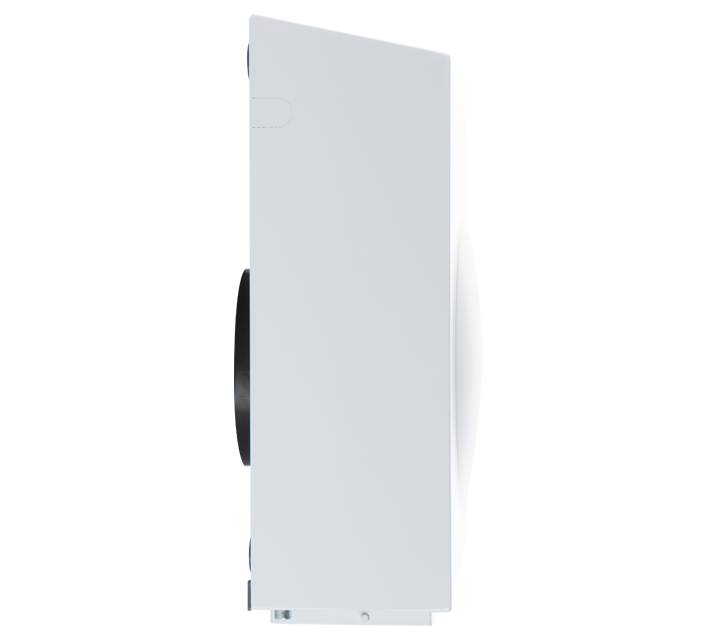

• P04 pressed steel outer enclosure with polyester paint finish, resistant to atmospheric agents.
• Nominal diameter 100 mm
• 3 speed AC motor of external rotor type with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
• Minimum air flow 200 m3/h
Maximum air flow 330 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• IMQ SAFETY and IMQ PERFORMANCE certifications

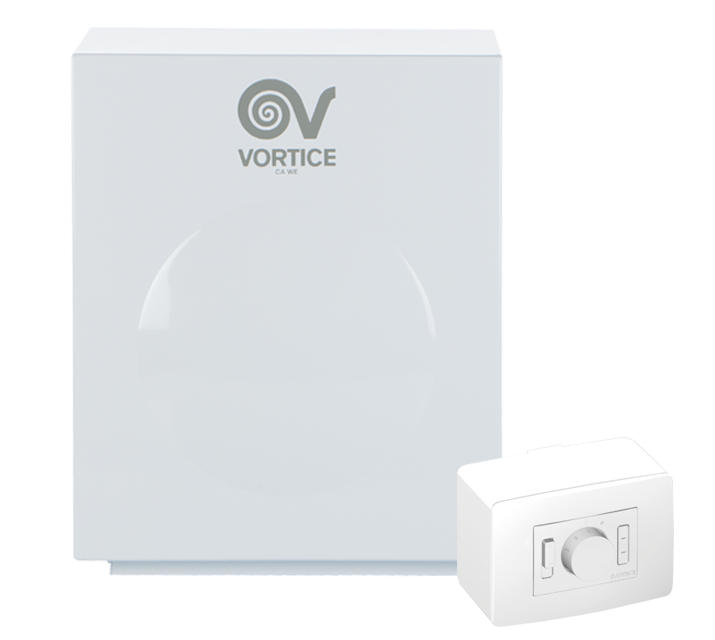

• Vortice speed controller included.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

I°
IP

X5
Max absorbed current at Max speed (A)

0,23
Max absorbed current at Min speed (A)

0.13
Max absorbed power at Max speed (W)

50
Max ambient temperature for continuous operation (°C)

60
Nominal diameter (mm)

100
Power absorbed at 1st speed (W)

12
Voltage (V)

220-240
Weight (Kg)

4,6
Airflow at 1st speed (l/s)

18.8

Airflow at 1st speed (m³/h)

68
Max airflow at Max speed (l/s)

70
Max airflow at Max speed (m³/h)

252
Max pressure at Max speed (mmH20)

38.6
Max pressure at Max speed (Pa)

379.4
Max RPM

2390
Min RPM

925
Pressure at 1st speed (mmH20)

18.3
Pressure at 1st speed (Pa)

180
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

38.3
Sound pressure at 3m at Max speed Lp [dB (A)]

50.1

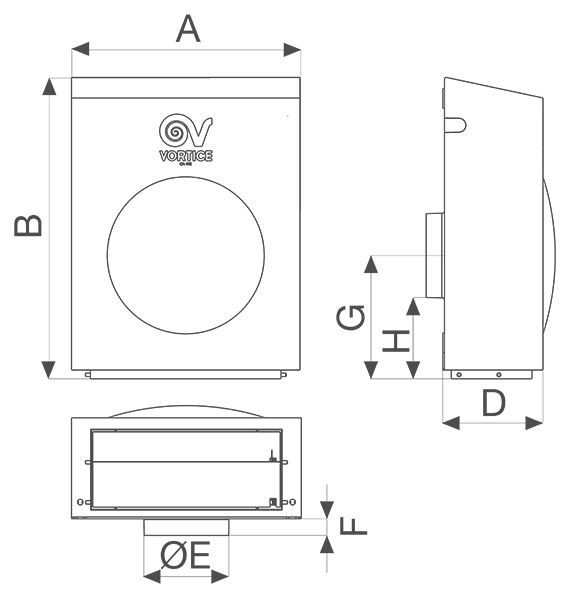

Size A (mm)

262
Size B (mm)

345
Size C (mm)

127
Size D (mm)

113
Size E (mm)

97
Size F (mm)

20
Size G (mm)

142
Size H (mm)

93
