CA 125 MD RF EP

Description

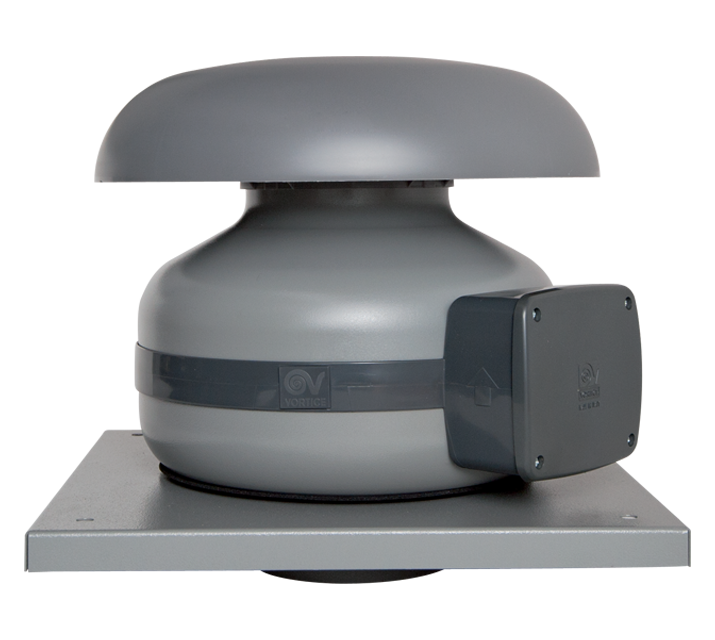

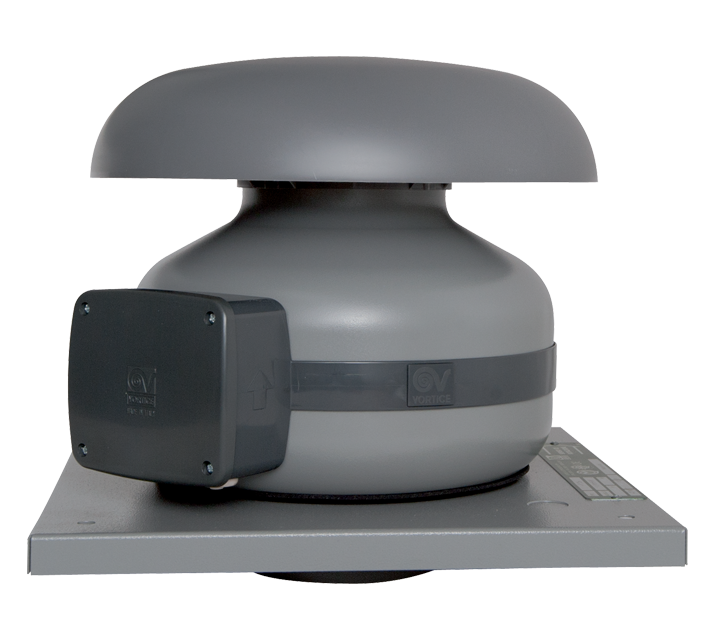

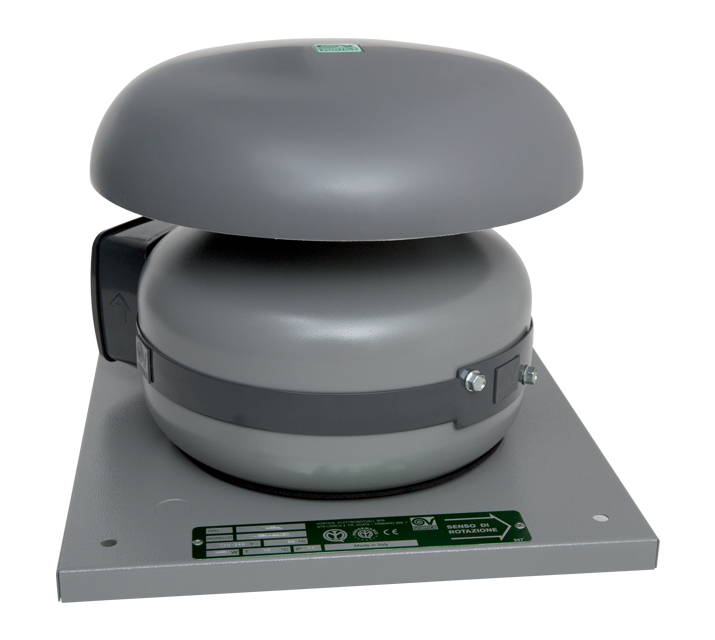

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents
• Nominal diameter 125 mm
• 3 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller
• Minimum air flow 220 m3/h
Maximum air flow 380 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• Zinc-coated steel brackets for wall mounting

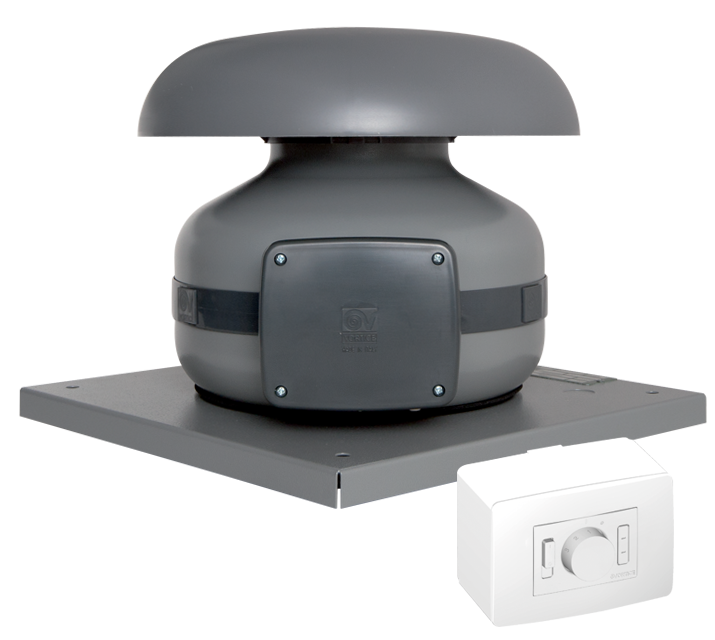

• Vortice speed controller included.

Read full descriptionClose description

Frequency (Hz)

50-60
Insulation class

II°
IP

45
Max absorbed current at Max speed (A)

0,23
Max absorbed current at Min speed (A)

0.13
Max absorbed Power at 60 Hz (W)

65
Max absorbed power at Max speed (W)

50
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

125
Power absorbed at 1st speed (W)

12
Voltage (V)

220-240
Weight (Kg)

3,5

Airflow at 1st speed (l/s)

32.7
Airflow at 1st speed (m³/h)

118
Max airflow at Max speed (l/s)

86.6
Max airflow at Max speed (m³/h)

312
Max pressure at Max speed (mmH20)

36.3
Max pressure at Max speed (Pa)

356.1
Max RPM

2405
Min RPM

915
Pressure at 1st speed (mmH20)

16.5
Pressure at 1st speed (Pa)

161.8
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

21.5
Sound pressure at 3m at Max speed Lp [dB (A)]

40.2

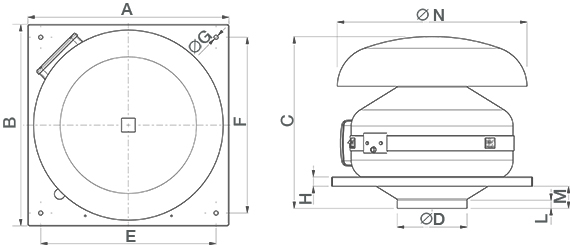

Size A (mm)

334
Size B (mm)

334
Size C (mm)

305
Size D (mm)

122
Size E (mm)

280
Size F (mm)

280
Size G (mm)

9
Size H (mm)

20
Size L (mm)

23
Size M (mm)

35
Size N (mm)

300
