C 31/4 T E - Vortice

Description

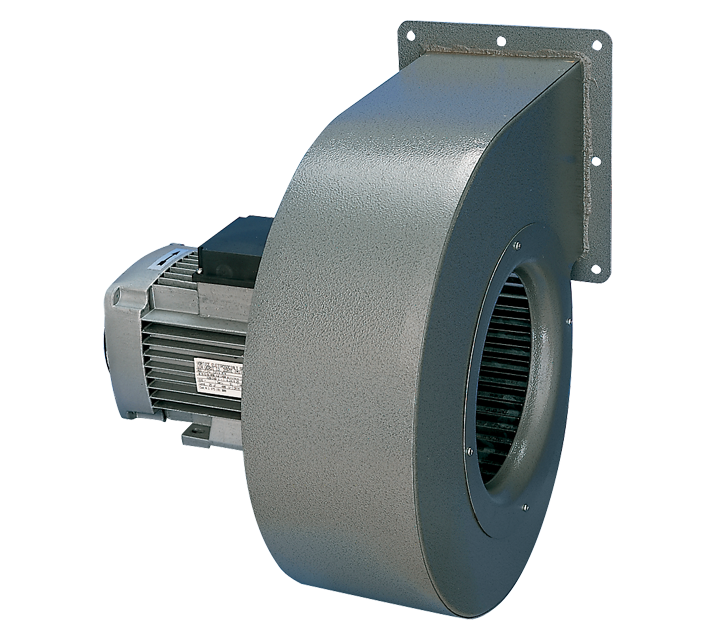

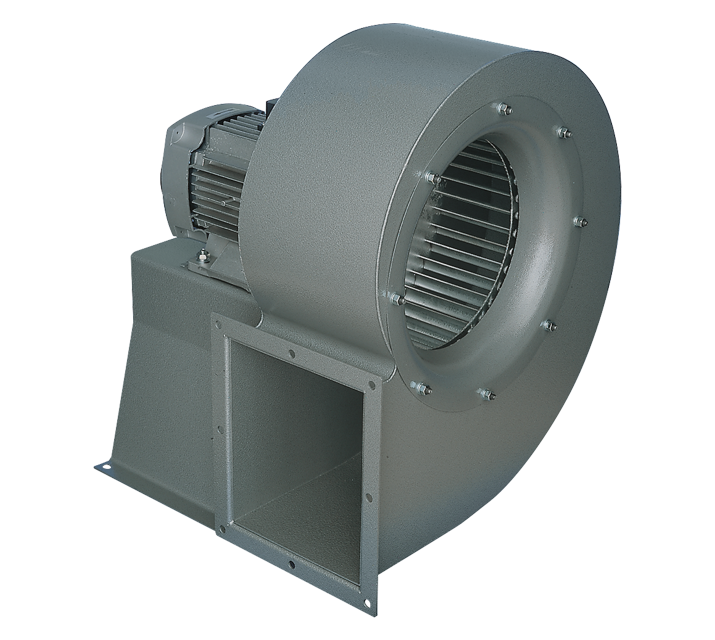

• Frame and scroll: painted pressed steel, with multiple fixing holes configured to allow alignment of the motor in 8 different positions relative to the outlet port.

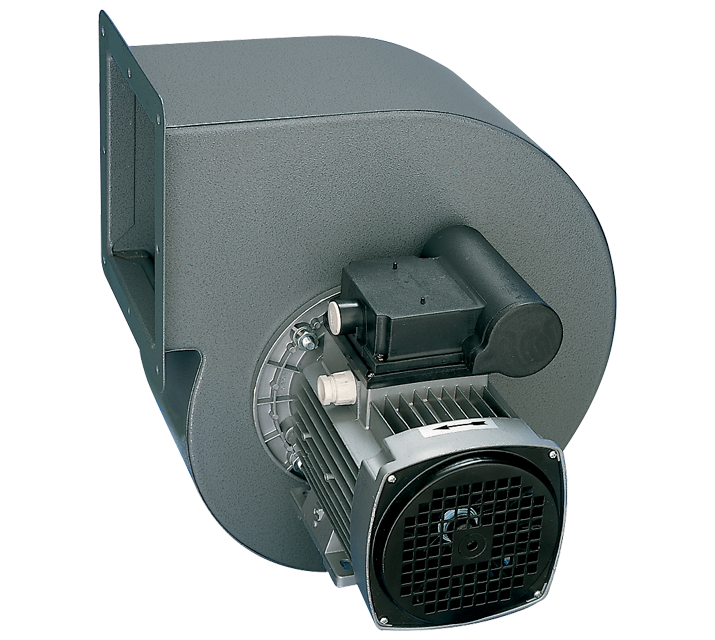

• Three-phase AC motor with 1 operating speed and shaft turning in ball bearings.

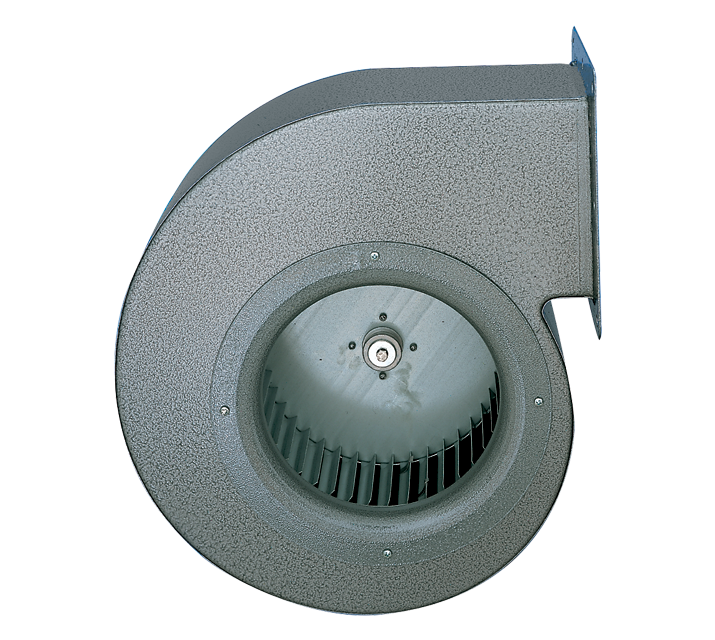

• Centrifugal impeller with forward-curved blades of zinc-coated steel, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3).
• Maximum air flow: 1100 m3/h.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

I°
Max absorbed current (A)

0.28
Max absorbed power (W)

175
Max ambient temperature for continuous operation (°C)

50
Motor ATEX marking

55
Number of phases (Ph)

3
Number of poles

4

Voltage (V)

400
Weight (Kg)

9,5
Max airflow (l/s)

229
Max airflow (m³/h)

825
Max pressure (mmH2O)

28.7
Max pressure (Pa)

281
RPM

1400
Sound pressure Lp [dB (A)] at 3 m

61.0

Dimension Q (mm)

45
Dimension R (mm)

90
Size A (mm)

357
Size B (mm)

400
Size C (mm)

340
Size D (mm)

164
Size E (mm)

139
Size F (mm)

8,5
Size G (mm)

71
Size H (mm)

112
Size L (mm)

137
Size M (mm)

ø 170
Size N (mm)

152
Size P (mm)

144
Size S (mm)

112
