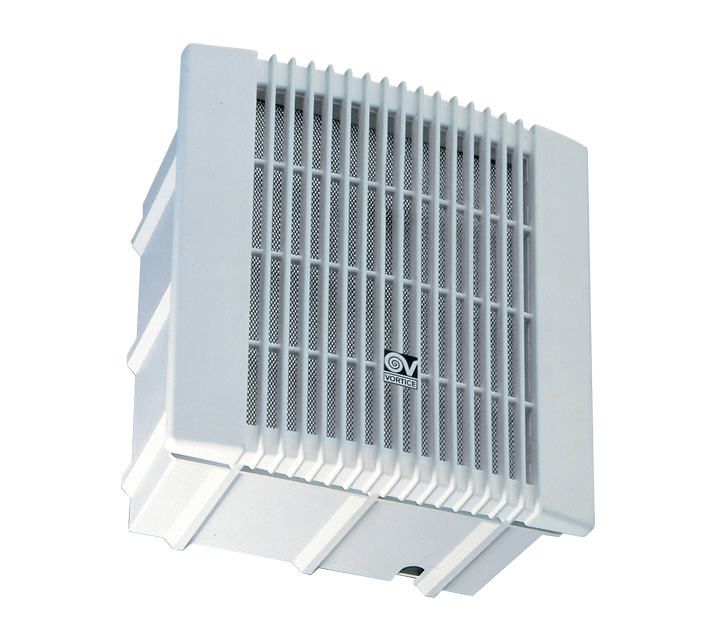

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• High efficiency electronically controlled (EC) commutator motor coupled to a centrifugal impeller, guaranteeing a wide range of adjustments and significantly reduced energy consumption, per unit of performance delivered.
• Equipped with “smart” timer: when lights are switched on, the fan will start up after 40”approx; when lights are switched off, the fan stays on for between 30” and 30’ (adjustable), running at minimum speed.
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Supplied with front grille mounting springs, suitable for any kind of false ceiling (65 mm max).
• Removable and washable metal mesh filter.
• Outlet port equipped with non-return damper.
• Vortice speed controller supplied as optional.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,4
  • Max absorbed current at Min speed (A)
    0,1
  • Max absorbed power at Max speed (W)
    40
  • Max ambient temperature for continuous operation (°C)
    40
  • Nominal diameter (mm)
    100
  • Ø Discharge hole (mm)
    97
  • Power absorbed at 1st speed (W)
    9
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,3
  • Airflow at 1st speed (l/s)
    28
  • Airflow at 1st speed (m³/h)
    100
  • Max airflow at Max speed (l/s)
    58
  • Max airflow at Max speed (m³/h)
    210
  • Max delivery of side outlet at max speed (l/s)
    75
  • Max delivery of side outlet at max speed (m³/h)
    270
  • Max delivery of side outlet at min speed (l/s)
    39
  • Max delivery of side outlet at min speed (m³/h)
    140
  • Max pressure at Max speed (mmH20)
    31
  • Max pressure at Max speed (Pa)
    304
  • Max pressure at side outlet - max speed (mmH2O)
    34,4
  • Max pressure at side outlet - min speed (mmH2O)
    9,1
  • Max pressure at side outlet - min speed (Pa)
    89
  • Max pressure at side outlet (Pa)
    338
  • Max RPM
    2110
  • Min RPM
    1150
  • Pressure at 1st speed (mmH20)
    8,5
  • Pressure at 1st speed (Pa)
    84
  • RPM side air outlet - max speed
    1810
  • RPM side air outlet - min speed
    1015
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    44
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    56

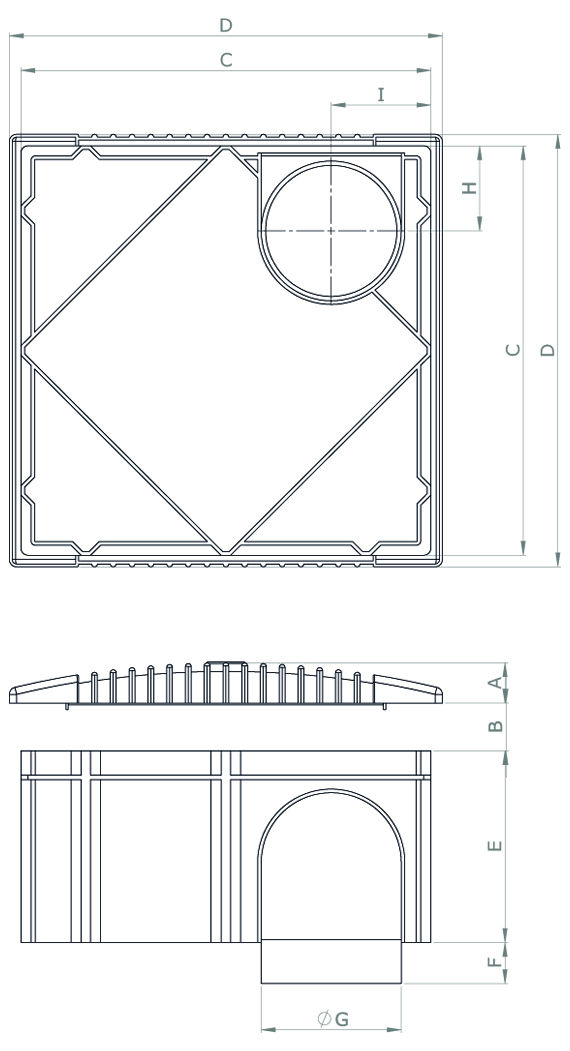

  • Size A (mm)
    28
  • Size B (mm)
    35
  • Size C (mm)
    284
  • Size D (mm)
    300
  • Size E (mm)
    133
  • Size F (mm)
    28,5
  • Size G (mm)
    Ø 97
  • Size H (mm)
    59
  • Size I (mm)
    69
quota
