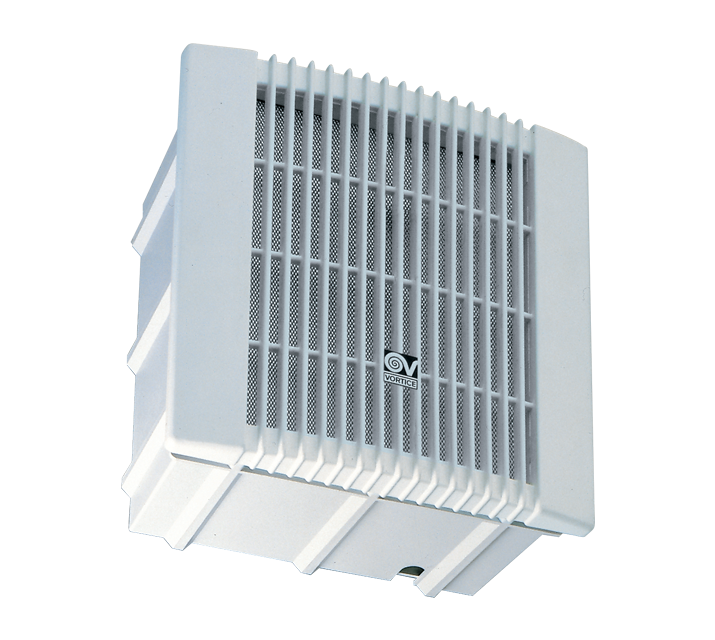

VORT PRESS 240 LL I EP

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• 3 speed motor with thermal overload protection and shaft turning in ball bearings.
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Supplied with front grille mounting springs, suitable for any kind of false ceiling (65 mm max).
• Removable and washable metal mesh filter.
• Outlet port equipped with non-return damper.
• Vortice speed controller.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0.3
Max absorbed current at Min speed (A)

0,1
Max absorbed power at Max speed (W)

45
Max ambient temperature for continuous operation (°C)

40
Nominal diameter (mm)

100
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

12
Voltage (V)

220-240
Weight (Kg)

3,3
Airflow at 1st speed (l/s)

28
Airflow at 1st speed (m³/h)

100
Max airflow at Max speed (l/s)

58
Max airflow at Max speed (m³/h)

210
Max delivery of side outlet at max speed (l/s)

75

Max delivery of side outlet at max speed (m³/h)

270
Max delivery of side outlet at min speed (l/s)

39
Max delivery of side outlet at min speed (m³/h)

140
Max pressure at Max speed (mmH20)

31
Max pressure at Max speed (Pa)

304
Max pressure at side outlet - max speed (mmH2O)

34,4
Max pressure at side outlet - min speed (mmH2O)

9,1
Max pressure at side outlet - min speed (Pa)

89
Max pressure at side outlet (Pa)

338
Max RPM

2110
Min RPM

1150
Pressure at 1st speed (mmH20)

8,5
Pressure at 1st speed (Pa)

84
RPM side air outlet - max speed

1810
RPM side air outlet - min speed

1015
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

44
Sound pressure at 3m at Max speed Lp [dB (A)]

56

Size A (mm)

28
Size B (mm)

65
Size C (mm)

284
Size D (mm)

300
Size E (mm)

133
Size F (mm)

28,5
Size G (mm)

Ø 97
Size H (mm)

62
Size I (mm)

71,5
