Code 61052

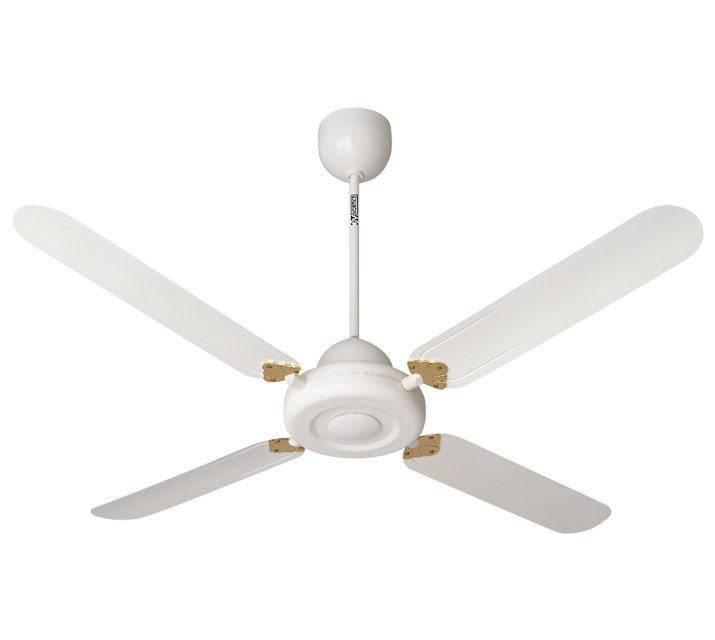

NORDIK DECOR 1S 90/36 B. S.GR.COM. P/L

Description

• Top and bottom motor covers moulded from heat-resistant and UV-resistant thermoplastic resin (ABS), colour white
• Wiring connections at end of ceiling rod concealed by domes moulded from impact- and UV-resistant PP, colour white.
• Nominal diameter of blades 900 mm
• Single phase start capacitor motor with external rotor, and shaft turning in ball bearings.
• Maximum air flow 8,520 m3/h
• 4 galvanized sheet steel blades powder coated with scratch-resistant polyester, colour white, connected to the hub by reinforced brass coloured mounts.
• Steel ceiling rod, polyester powder coated in the same colour as the blades, length 375 mm.
• Bag of accessories containing nuts and bolts required for assembly of blades, ceiling hook and rubber anti-vibration washer.
• Factory-prepared to accept Light Kit (optional), suitable for lamp rated 150W max with
E27 screw fitting, or equivalent energy-saving lamp with E27 screw fitting.
• Globe lampshade of laminated glass, colour opaline.
• IMQ safety and performance certifications
• Speed selectable by way of control units or Telenordik 5T remote control (optional).
Read full descriptionClose description

Technical Data Sheet

  • Size A (mm)
    Ø 914
  • Size B (mm)
    Ø 248
  • Size C (mm)
    491
  • Size D (mm)
    Ø 130
  • Size E (mm)
    Ø 200
  • Size F (mm)
    180
  • Size G (mm)
    756
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
