Code 65328

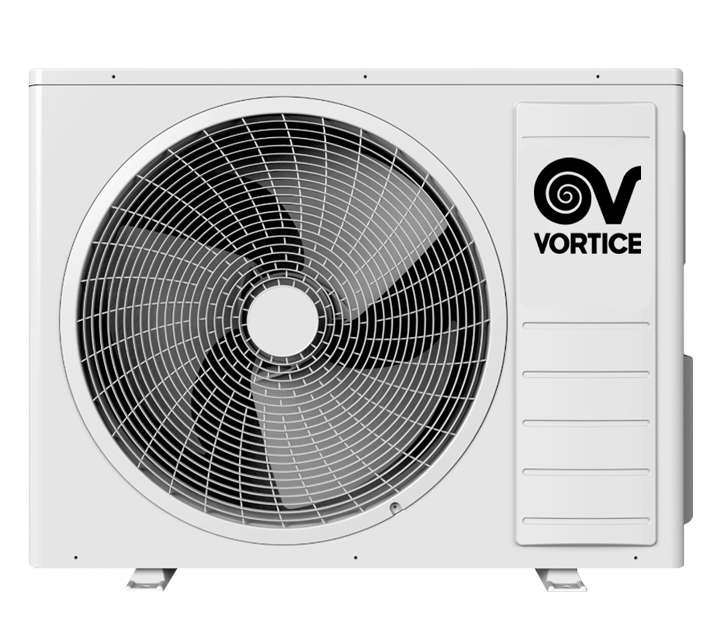

VORT ARTIK 24 DUCT UE

Accessorio_1

Description

Read full descriptionClose description

Technical Data Sheet

  • Absorbed power - Cooling mode (W)
    2230
  • Absorbed power - Heating mode (W)
    1840
  • Additional refrigerant charge (g/m)
    22
  • Compressor type
    Rotativo
  • Condensate draining pipe Ø (mm)
    26
  • Energy class in cooling mode
    A++
  • Energy class in heating mode
    A+
  • Frequency (Hz)
    50
  • Insulation class
    I°
  • Max height difference (m)
    10
  • Max lenght of cooling pipes (m) - I.U.
    30
  • Max lenght of cooling pipes with standard charge of refrigerant
    15
  • Max pipe lenght (m)
    30
  • Nominal current - Cooling mode (A)
    9,70
  • Nominal current - Heating mode (A)
    8,00
  • Number of phases (Ph)
    1
  • Refrigerant pipe Ø (inch)
    1/4"-5/8"
  • Refrigerant type
    R410A
  • Standard refrigerant charge (g)
    1800
  • Voltage (V)
    220-240
  • Weight (Kg)
    46
  • Cooling capacity (BTU/h)
    23.884
  • Cooling capacity (W)
    7.000
  • COP (Coefficient of Performance)
    3,8
  • Heating capacity (BTU/h)
    23.884
  • Heating capacity (W)
    7.000
  • Indoor operation temperature (cooling/heating) (°C)
    -15~52/-15~30
  • Outdoor operation temperature (cooling/heating) (°C)
    16~31
  • Sound power Lw [dB(A)]
    68

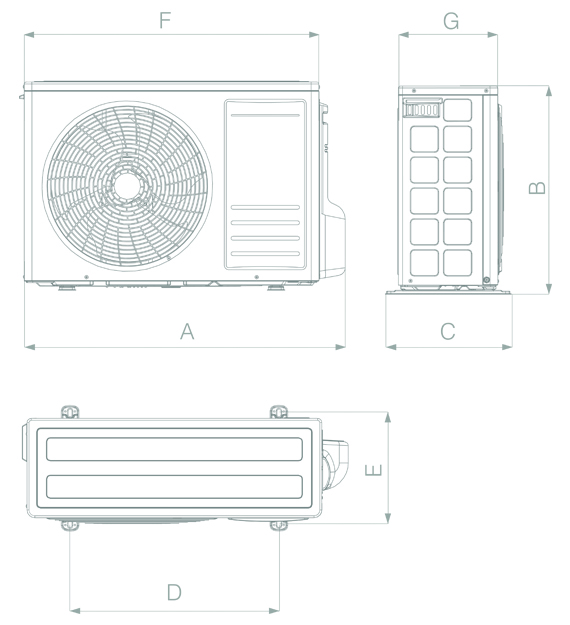

  • Size A (mm)
    960
  • Size B (mm)
    700
  • Size C (mm)
    396
  • Size D (mm)
    560
  • Size E (mm)
    364
  • Size F (mm)
    890
  • Size G (mm)
    340
