Code 45319

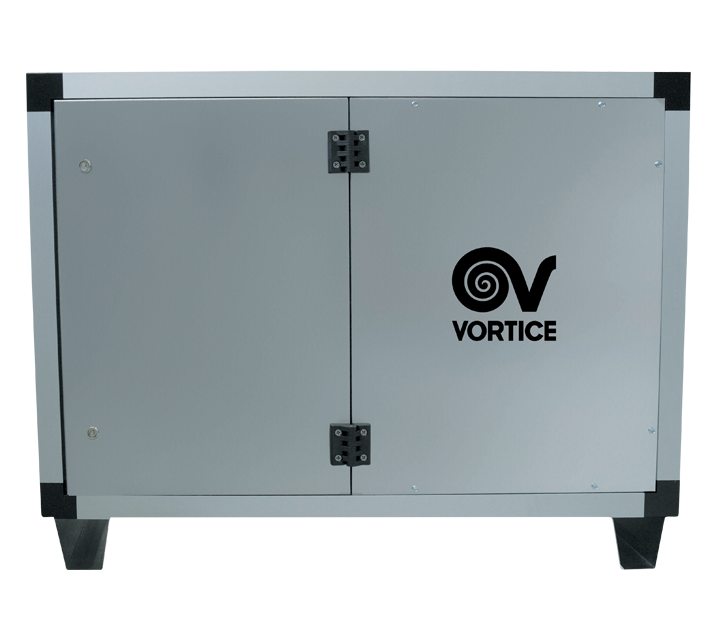

VORT QBK POWER 15/15 1V 3

Description

• Cabinet fabricated from extruded aluminium angle sections (UNI 9006) and zinc-coated sheet metal panels, insulated with polyethylene sound absorbent padding, surface finish self-adhesive metal foil, Class I.
• 1 speed three-phase AC motor, coupled by way of belt and pulley drive to a forward-bladed double inlet centrifugal impeller.
• Maximum air flow: 10,000 m3/h.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max ambient temperature for continuous operation (°C)
    40
  • Motor ATEX marking
    55
  • Motor class
    F
  • Nominal current (A)
    6,47
  • Nominal power (W)
    3000
  • Number of phases (Ph)
    3
  • Number of speeds
    1
  • Voltage (V)
    230/400
  • Max airflow (l/s)
    2778
  • Max airflow (m³/h)
    10000
  • Max RPM
    960
  • Sound pressure at 1m at Max speed at extraction side Lp [dB (A)]
    78

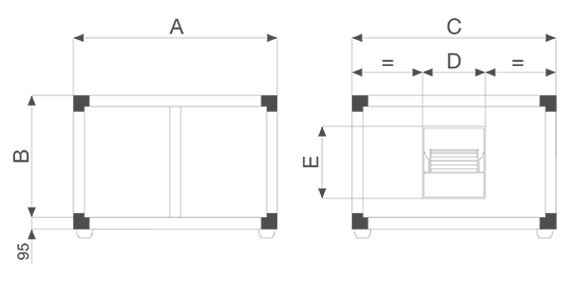

  • Size A (mm)
    1040
  • Size B (mm)
    1040
  • Size C (mm)
    1040
  • Size D (mm)
    470
  • Size E (mm)
    405
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
