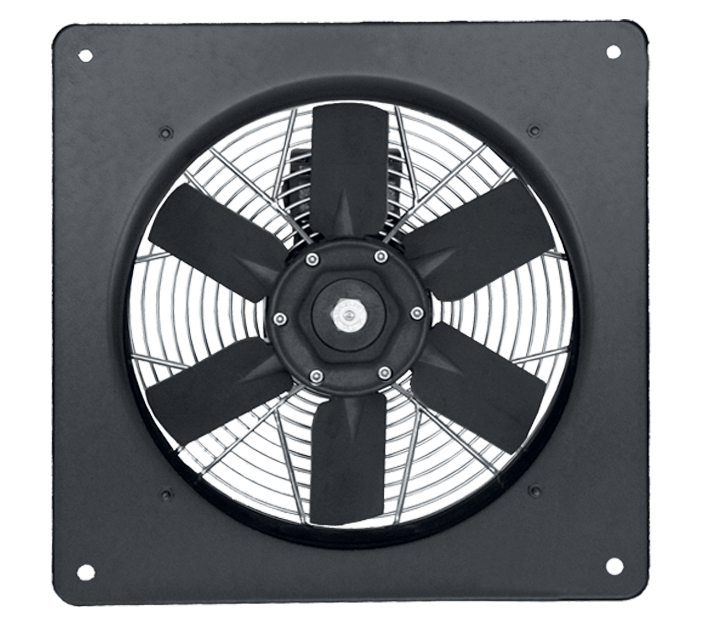

• Nominal diameter: 400 mm.
• Panel made of galvanized sheet steel, epoxy powder coated, granting long-term resistance against atmospheric agents.
• Protection grid, combining the function of motor bracket, made of electrically welded steel rings. Easy removal simplifies fan maintenance and cleaning.
• 4-pole, single-phase, external rotor AC motor, designed to minimize axial dimensions, insulation class F, IP55 protection.
• Variable pitch impeller with blades made of polyamide reinforced with fiberglass.
• Electrical connection box with IP65 protection degree.
• Maximum continuous operating temperature: +50°C.
Read full descriptionClose description

Technical Data Sheet

  • Size A (mm)
  • Size B (mm)
  • Size C (mm)
  • Size D (mm)
  • Size E (mm)
  • Size F (mm)
    Ø 406
  • Size G (mm)
    Ø 11
If you are interested in this product, contact us or locate your nearest Vortice dealer.
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
