VORTICE 300/12" ARI

Description

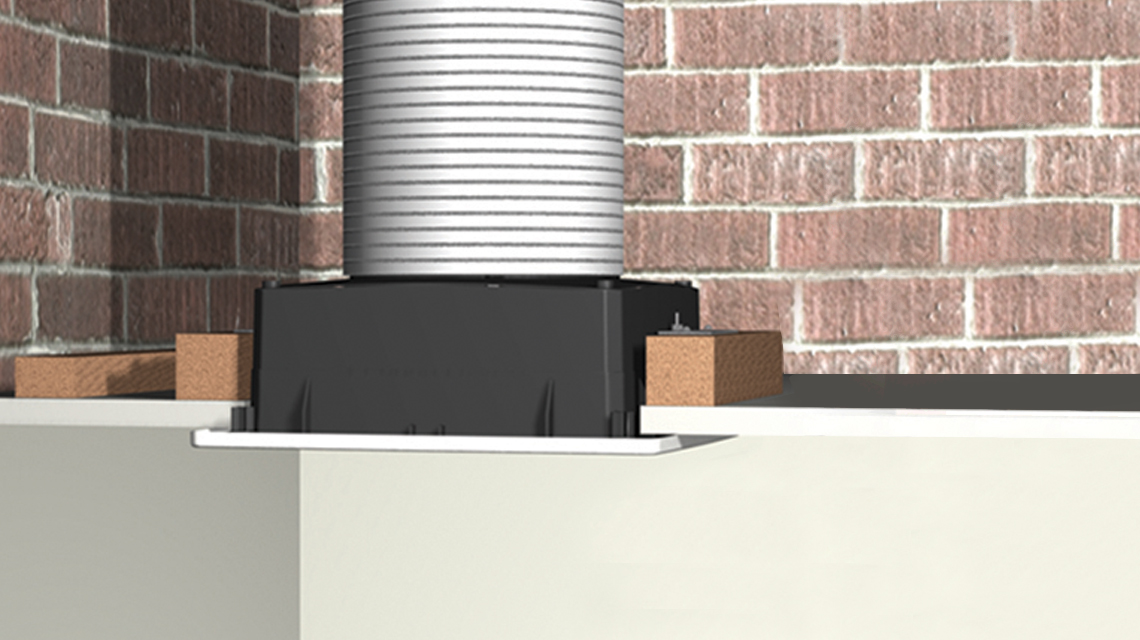

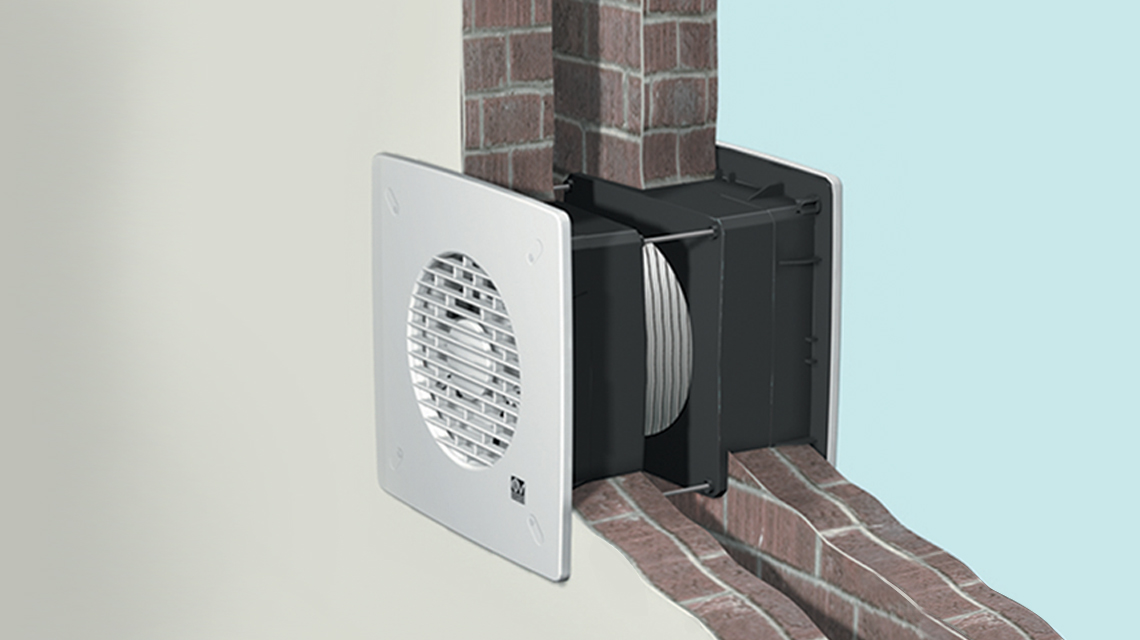

• Model designed for installation recessed into wall.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 300 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.

Read full descriptionClose description

Frequency (Hz)

50-60
Insulation class

II°
IP

X4
Max absorbed current (A)

0,21
Max absorbed power (W)

45
Max absorbed Power at 60 Hz (W)

45
Max ambient temperature for continuous operation (°C)

50
Max room temperature for continuous operation at 60 Hz (°C)

40
Ø Discharge hole (mm)

300
Voltage (V)

220-240

Weight (Kg)

7,2
Max airflow - extract (l/s)

333,3
Max airflow - extract (m3/h)

1200
Max airflow - intake (l/s)

236,1
Max airflow - intake (m3/h)

850
Max airflow (m³/h)

1200
RPM

850
Rpm - exhaust

850
Rpm - supply

1150
Sound pressure Lp [dB (A)] at 3 m

40,7

Ø hole thorugh the glass

324/329
Ø hole through the wall

435/440
Size A (mm)

495
Size B (mm)

10,5
Size C (mm)

11,5
Size D (mm)

210
Size E (mm)

2/38
