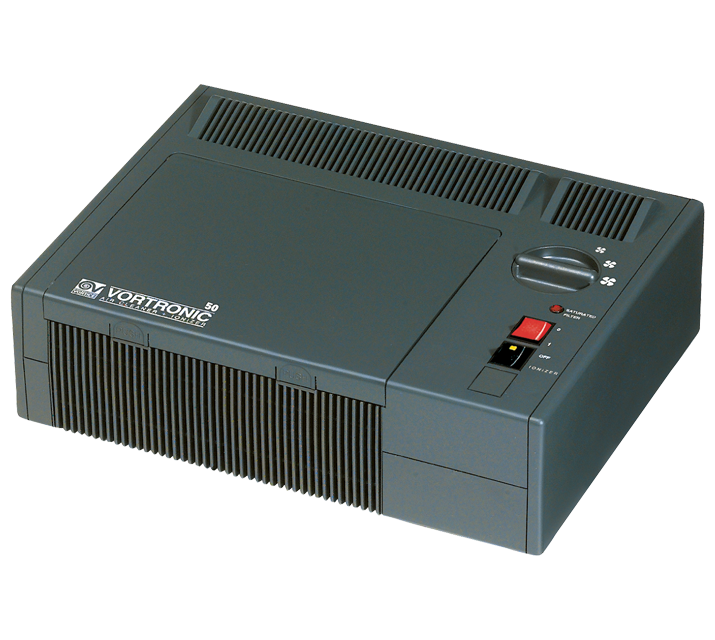

Description

• Casing, filter cover, sides, grille and base moulded from impact-resistant thermoplastic material, colour black.

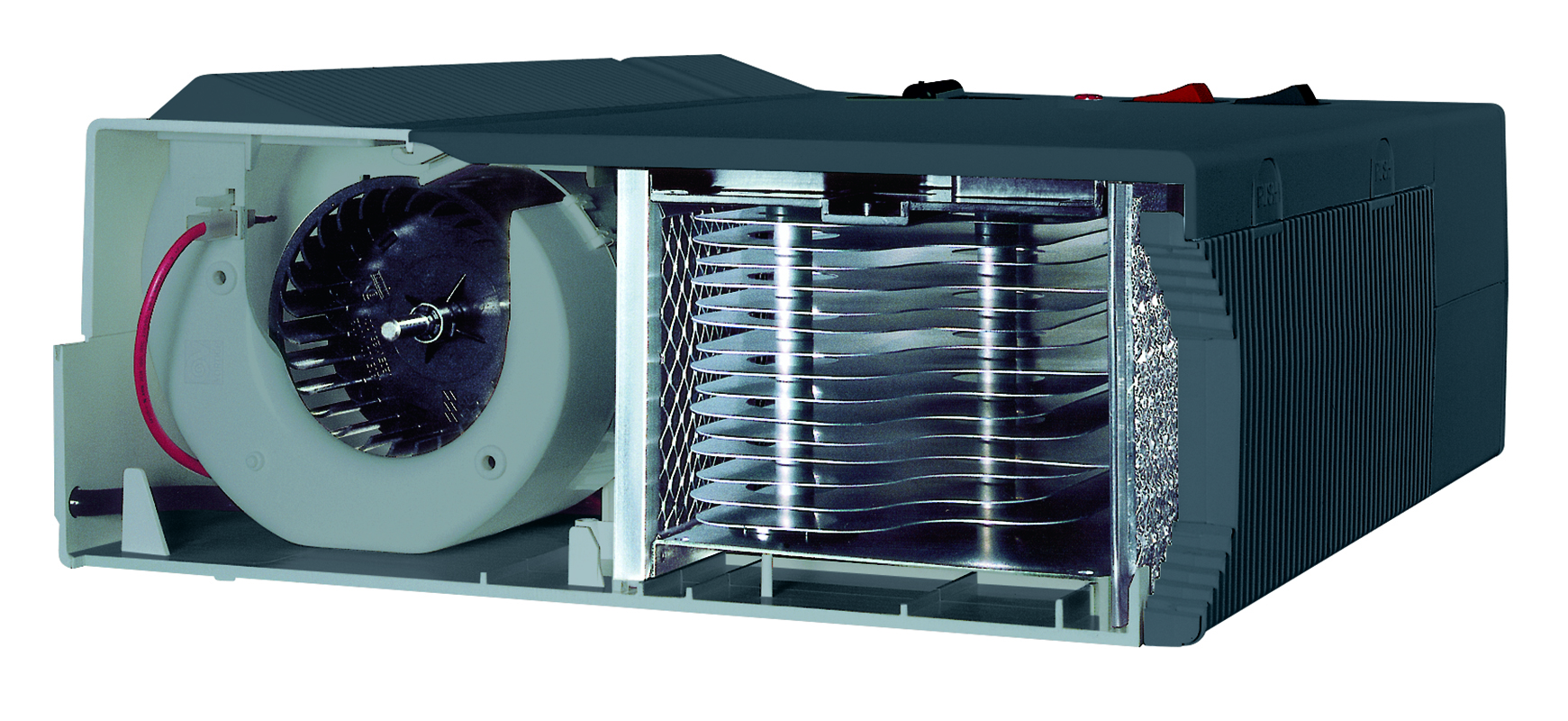

• 3 speed motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Aluminium mesh prefilter.
• Electrostatic filter, electronically controlled.
• Granular activated carbon filter.
• Ionizing electrodes selectable by way of dedicated switch.
• On/off switch.
• Fan speed controlled by 3-position rotary switch.

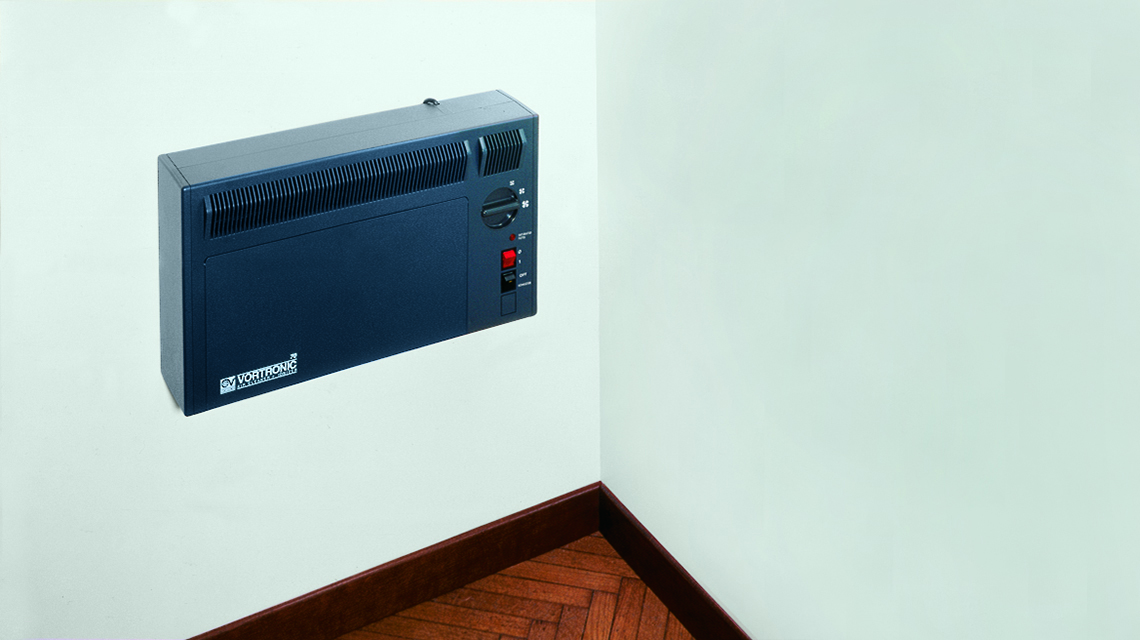

• Base interchangeable with one side to allow floor-standing operation.
• Power cord with moulded plug.
• IMQ safety certification.
Read full descriptionClose description

Certifications

  • CE CE
vortronic_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • Max absorbed current (A)
    0,22
  • Max absorbed power (W)
    36
  • Recommended room size (m³)
    50
  • Voltage (V)
    230
  • Weight (Kg)
    5,0
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

FILTRI POLIEST.CARB.A.PER DEPURO 50
FILTRI POLIEST.CARB.A.PER DEPURO 50

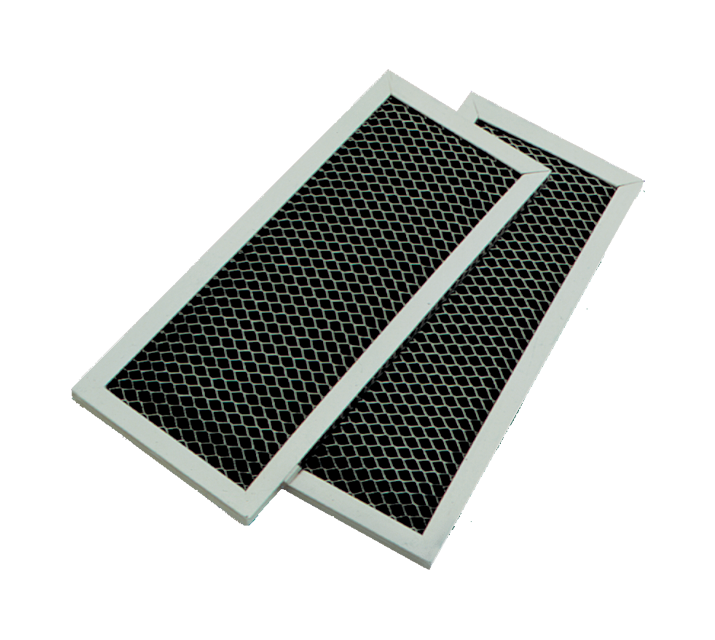

• Activated-carbon fibre filter (6 per package).
KIT APPLICAZIONE A MURO DEPURO-VORTRONIC
KIT APPLICAZIONE A MURO DEPURO-VORTRONIC
• Optional wall-mounting kit.
