Description

• Upper casing, filter cover, sides, grille and base moulded from impact-resistant thermoplastic material, colour grey.

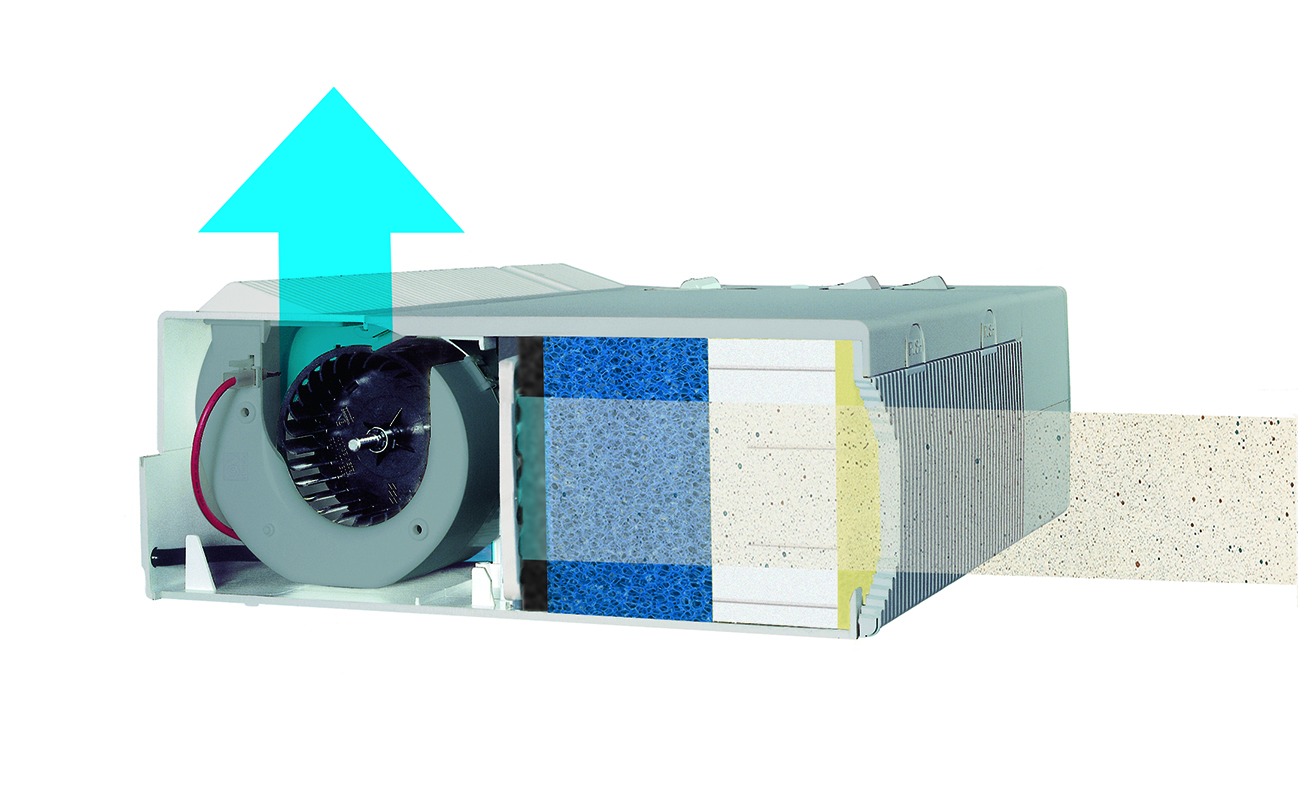

• 3 speed motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Washable polyester-polyurethane prefilter.

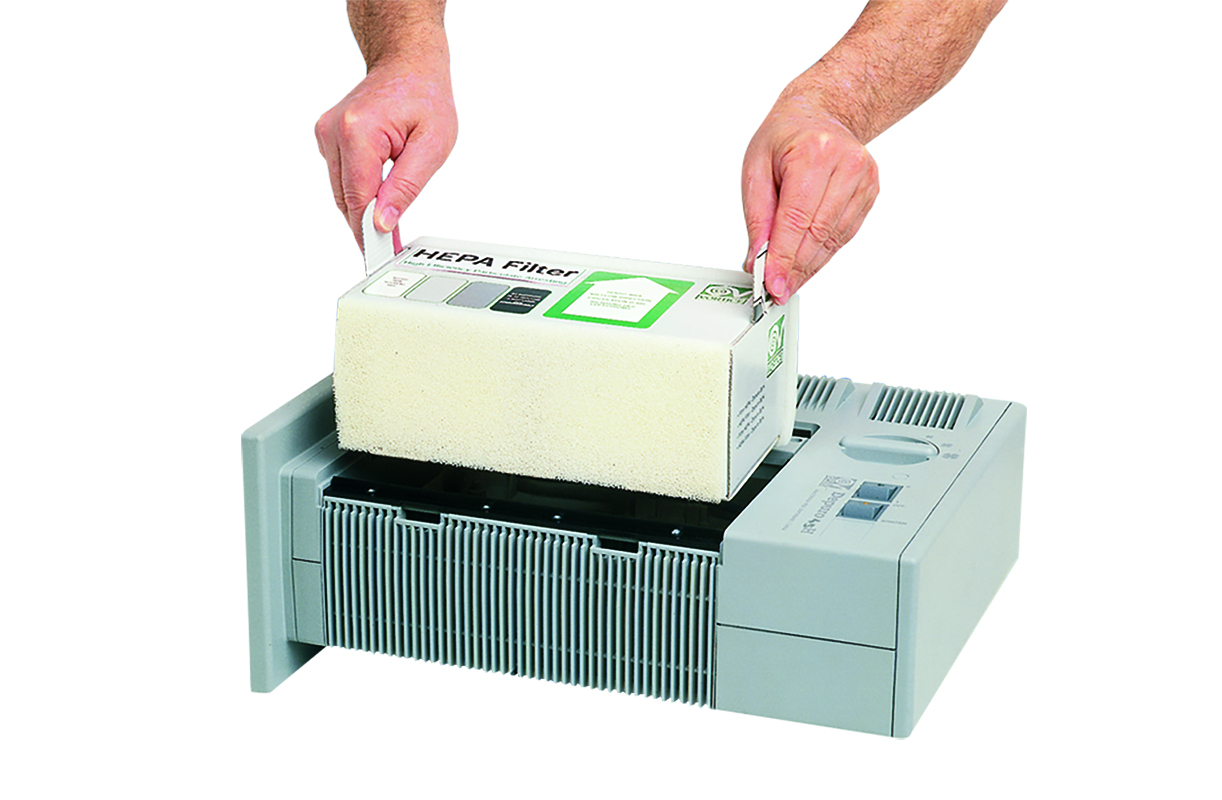

• HEPA H10 filter
• Electrostatic double layer filter impregnated with activated carbon.
• Ionizing electrodes selectable by way of dedicated switch.
• On/off switch.
• Fan speed controlled by 3-position rotary switch.

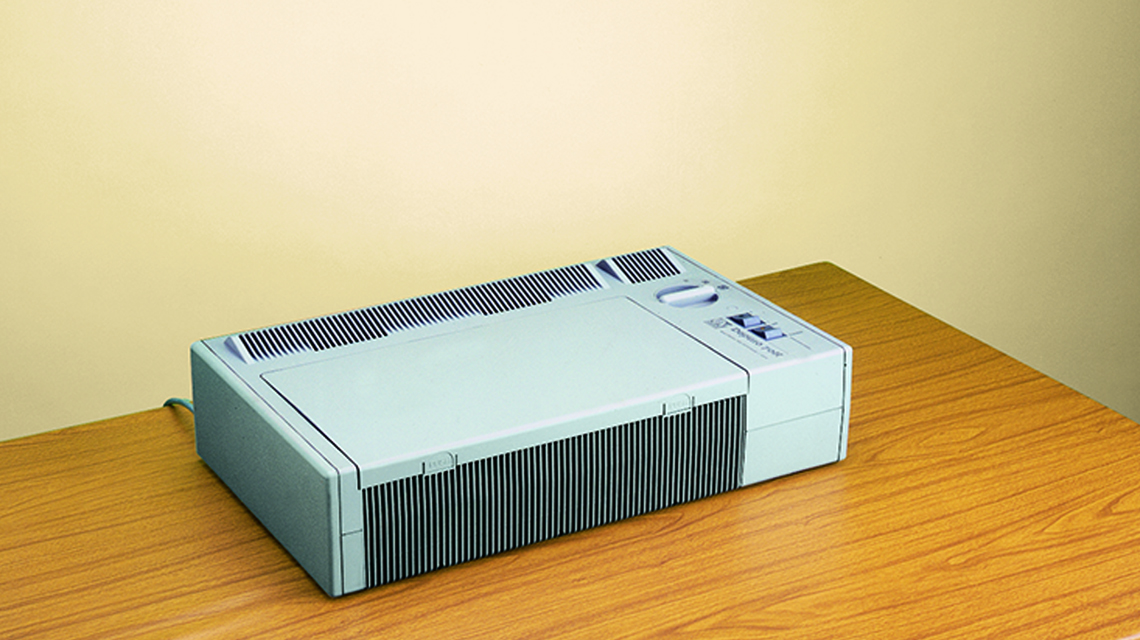

• Base interchangeable with one side to allow floor-standing operation.
• Power cord with moulded plug.
• IMQ safety certification.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE

Technical Data Sheet

  • Absorbed Current max (A)
    0,27
  • Absorbed Power max (W)
    30
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • Recommended Room Size (m³)
    70
  • Voltage (V)
    230
  • Weight (Kg)
    4,7
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

CONFEZIONE RICAMBIO FILTRO DEPURO 70 H
CONFEZIONE RICAMBIO FILTRO DEPURO 70 H

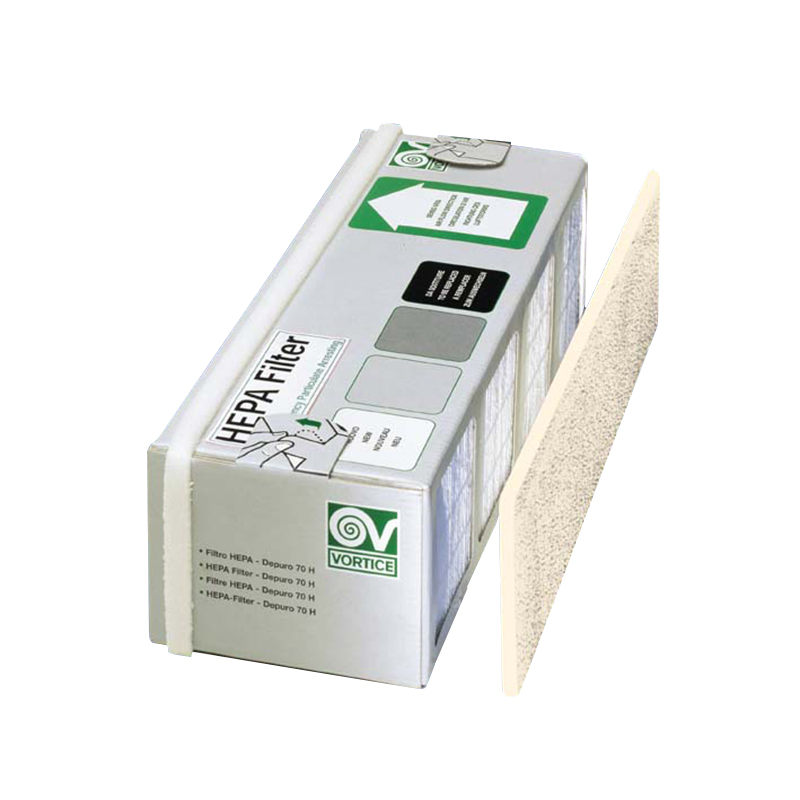

• Hepa filters with active carbon Depuro 70H (2 per package).
KIT APPLICAZIONE A MURO DEPURO-VORTRONIC
KIT APPLICAZIONE A MURO DEPURO-VORTRONIC

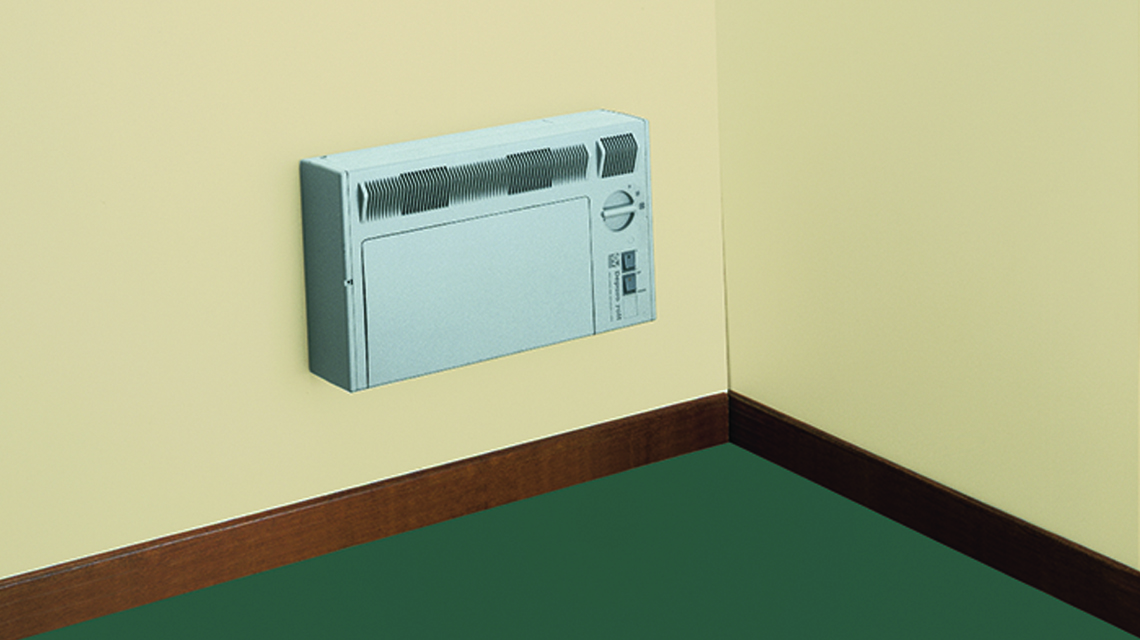

• Optional wall-mounting kit.
