Description
Technical Data Sheet
-
Filter class on extractePM1 60%
-
Filter class on supplyH14
-
Frequency (Hz)50-60
-
Insulation classI°
-
Max absorbed current (A)1,7
-
Max absorbed power (W)225
-
Max ambient temperature for continuous operation (°C)45
-
Min continuous operation room temperature (°C)-10
-
Number of phases (Ph)1
-
Voltage (V)220-240
-
Weight (Kg)45
-
Max airflow (m³/h)860
-
Sound power LWA at Max speed [dB (A)]67,2
-
Sound pressure at 1m at Max speed Lp [dB (A)]56,2
-
Sound pressure at 3m at Max speed Lp [dB (A)]46,7
-
Surface up to (m2)160
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

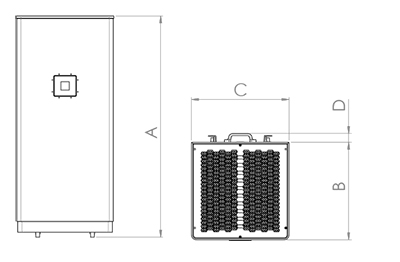

Size A (mm)1039
-
Size B (mm)455
-
Size C (mm)455
-
Size D (mm)41
