Code 25085

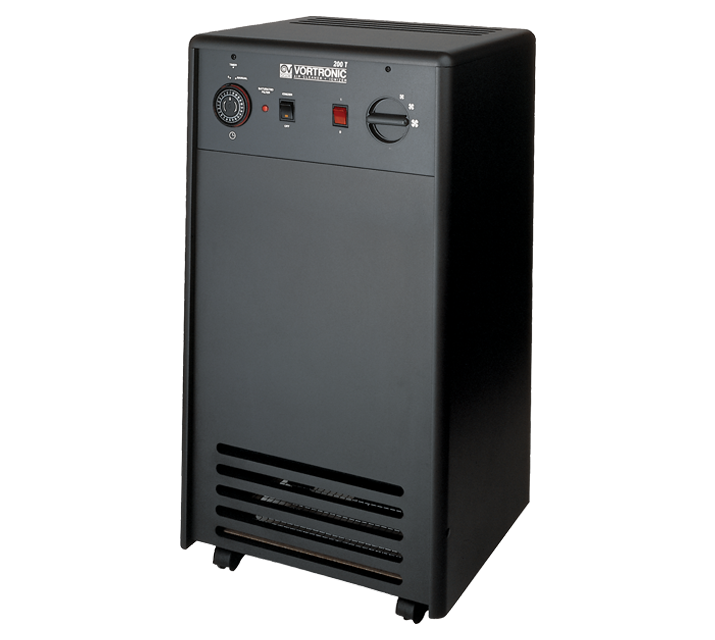

VORTRONIC 200 T FR

Air cleaners + ionisers with electronically controlled electrostatic cell

Description

• Cabinet, filter cover and grille made of wood finished both inside and outside with two-part naturally hardening polyurethane paint, colour black.
• 3 speed start capacitor motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Aluminium mesh prefilter.
• Electrostatic filter, electronically controlled.
• Granular activated carbon filter.
• Ionizing electrodes selectable by way of dedicated switch.
• On/off switch.
• Fan speed controlled by 3-position rotary switch.
• Electromechanical 24h timer with option of manual or automatic operation.
• 4 caster wheels.
• Power cord with moulded plug.
• IMQ safety certification.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE

Technical Data Sheet

  • Absorbed Current max (A)
    0,38
  • Absorbed Power max (W)
    72
  • Frequency (Hz)
    50
  • Insulation Class
  • Recommended Room Size (m³)
    200
  • Voltage (V)
    230
  • Weight (Kg)
    29,4
  • Sound Pressure level Lp [dB (A)] 3m
    39,7
  • Size A (mm)
    420
  • Size B (mm)
    120
  • Size C (mm)
    315
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

FILTRI POLIEST.CARB.A.PER DEPURO 150/200
FILTRI POLIEST.CARB.A.PER DEPURO 150/200
Activated carbon fibre filter, (2 per package) for DEPURO 200.
FILTRO CARBOCOCCO DEPURATORI 200
FILTRO CARBOCOCCO DEPURATORI 200
• Activated-carbon filter (1 per package).
