Description

• External case moulded from ABS thermoplastic resin.
• 5 operating modes: automatic, cooling, dehumidifying, ventilation, heating.
• Class A appliance capable of two operating modes: air-air and water-air (“SUPER COOL” function), the second of which guarantees superior cooling capacity and significantly greater energy efficiency of the product.
• No installation procedures necessary: the only requirement is to ensure that hot air can be ducted away from the climate-controlled room via the exhaust hose.

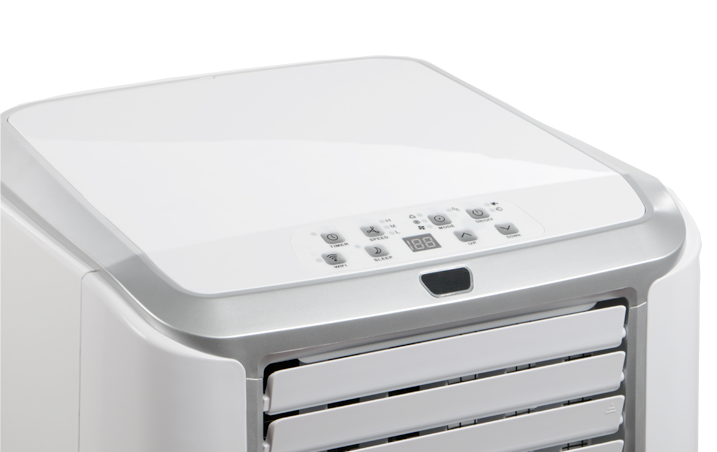

• Equipped with electronic controls and LCD display at the cabinet, and with a modern infrared remote control.
• Continuous internal drainage system automatically converts water of condensation into vapour, which is then exhausted outdoors.
• Programmable timer: allows selection of ON/OFF cycles at intervals of 1 hour over a period of 24 hours.
• “SLEEP”: optimizes energy consumption at night; the set temperature is increased (cooling mode) / decreased (heating mode) by 1 °C every two hours.

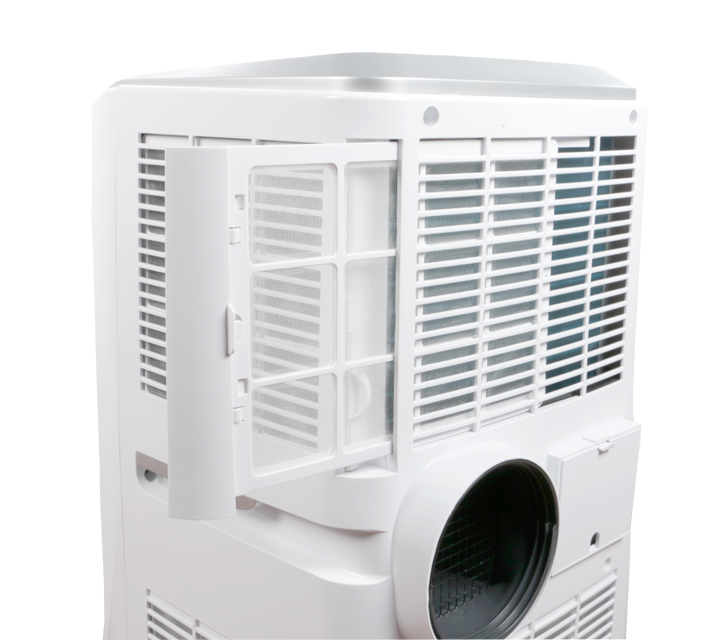

• Washable dust filters.
• Activated carbon filter serving to remove unpleasant smells.
• It contains fluorinated greenhouse gas (R290), with GWP – Global Warning Potential – near zero, able to limit carbon dioxide emissions into the atmosphere and to favor the global temperature containment of the planet.
• Hermetically sealed equipment.
• Accessories supplied:
• Round adapter
• Cover for round adapter
• Hot air exhaust hose
• Plastic board
• Plastic board with round hole
• Pipe for continuous condensation drainage
• Activated carbon filter
• Infrared remote control.
Read full descriptionClose description

Certifications

  • CE CE
  • INTERTEK-GS INTERTEK-GS
Energy label Energy label Regolamento N° 206/2012/UE Regolamento N° 206/2012/UE

Technical Data Sheet

  • Absorbed power - Cooling Mode (W)
    1380
  • Absorbed power - Heating Mode (W)
    1120
  • Compressor Type
    rotativo
  • Energy class - cooling
    A
  • Energy class - heating
    A+
  • Frequency (Hz)
    50
  • Max ambient temperature for continuous operation (°C)
    35
  • Min ambient temperature for continuous operation (°C)
    18
  • Number of Phases (Ph)
    1
  • Number of speeds
    3
  • Potenza assorbita raffrescamento modalità “water-to-air” (W):
    1120
  • Refrigerant Type
    R290
  • Standard refrigerant charge (g)
    300
  • Voltage (V)
    220-240
  • Weight (Kg)
    32
  • Area di utilizzo (m2)
    17-25
  • Cooling Capacity (BTU/h)
    12.495
  • Cooling Capacity (W)
    3,7
  • Delivery max (m³/h)
    438
  • EER (Energy Efficiency Ratio)
    2,6
  • EER in modalità “water-to-air”
    2,98
  • Heating capacity (BTU/h) 1332
    10.372
  • Heating capacity (W)
    3,0
  • Potenza Raffrescamento “water-to-air” ((BTU/h)
    11.435
  • Potenza Raffrescamento “water-to-air” (W)
    3,35
  • Sound power level Lw [dB(A)]
    65
  • Sound pressure level Lp in free field [dB(A)] 3 m
    43,5
  • Diametro Ø (mm)
    150

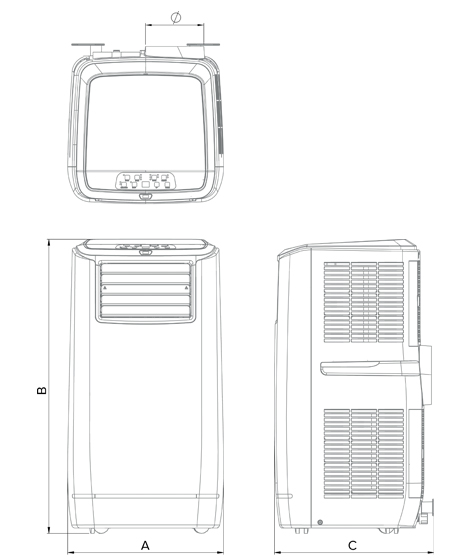

  • Size A (mm)
    414,5
  • Size B (mm)
    782,8
  • Size C (mm)
    424,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
