Description

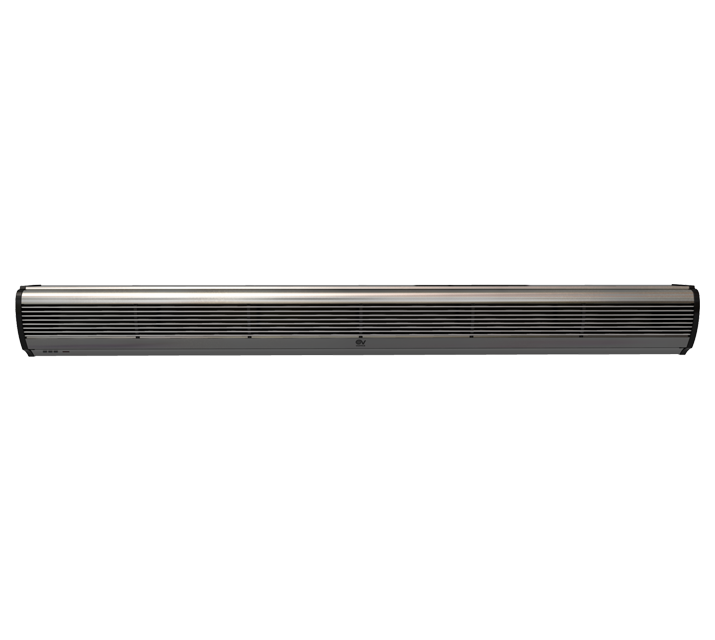

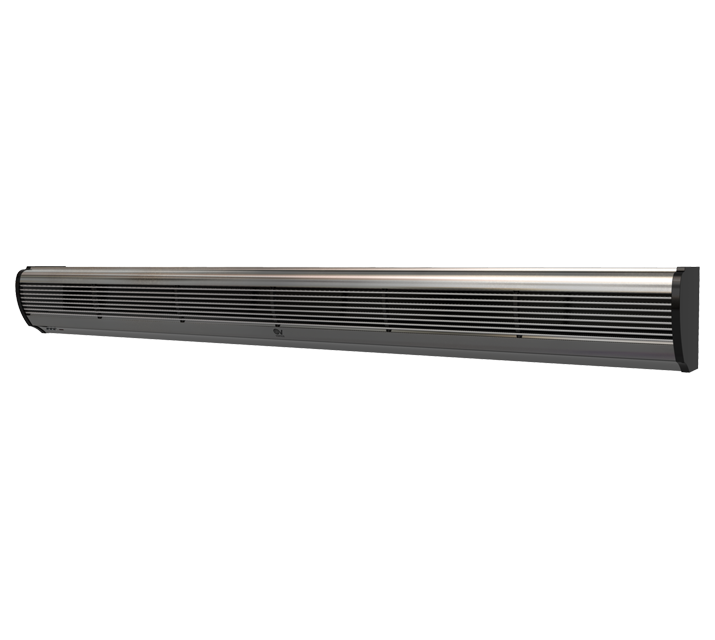

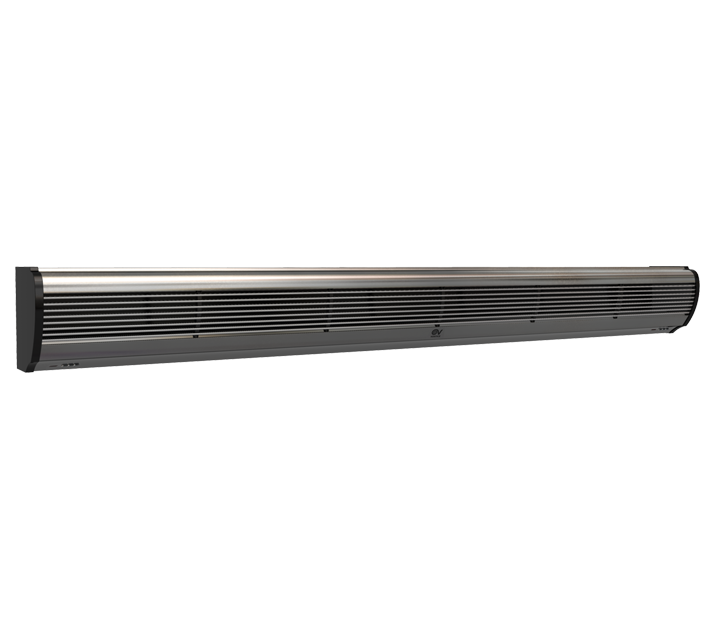

• Aluminium front panel with satin finish, colour silver, and air inlet grille comprising 9 horizontal sections of polished aluminium. Rear pressed steel casing, colour black, functions as a frame to which all internal components are fixed. End caps moulded in ABS thermoplastic resin, colour black.
• Nominal width of appliance: 2000 mm.
• Neutral version (air circulated at ambient temperature), 2 operating speeds.
• AC motor with double shaft extension and thermal overload protection.
• Minimum air flow: 2900 m3/h
• Maximum air flow: 3600 m3/h
• 2 tangential fans moulded in thermoplastic resin (SAN) and ultrasonically welded, colour black, force air through a longitudinal vent located in the underside of the appliance.
• IR remote control with on/off and speed selection buttons; these same controls are also available on the front panel of the appliance (3 buttons).
• Power cord with moulded Schuko euro plug.
• Able to operate in conjunction with standard "door sensors".
• Adjustable vanes for orientation of air stream.
Read full descriptionClose description

Certifications

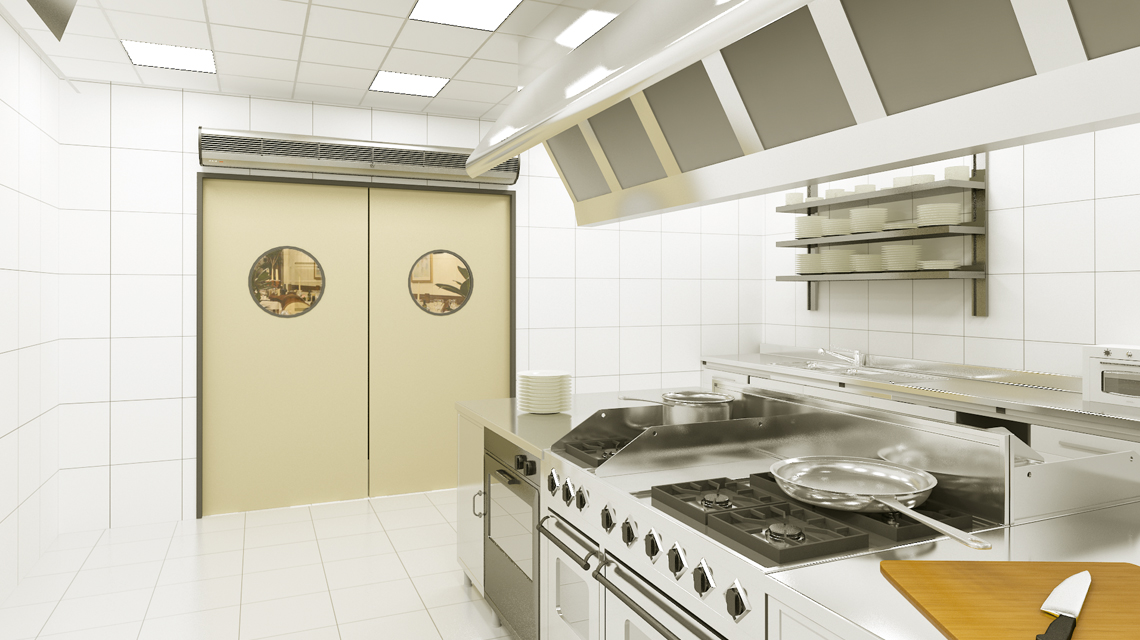

air_door_ad_2000_ambiente01

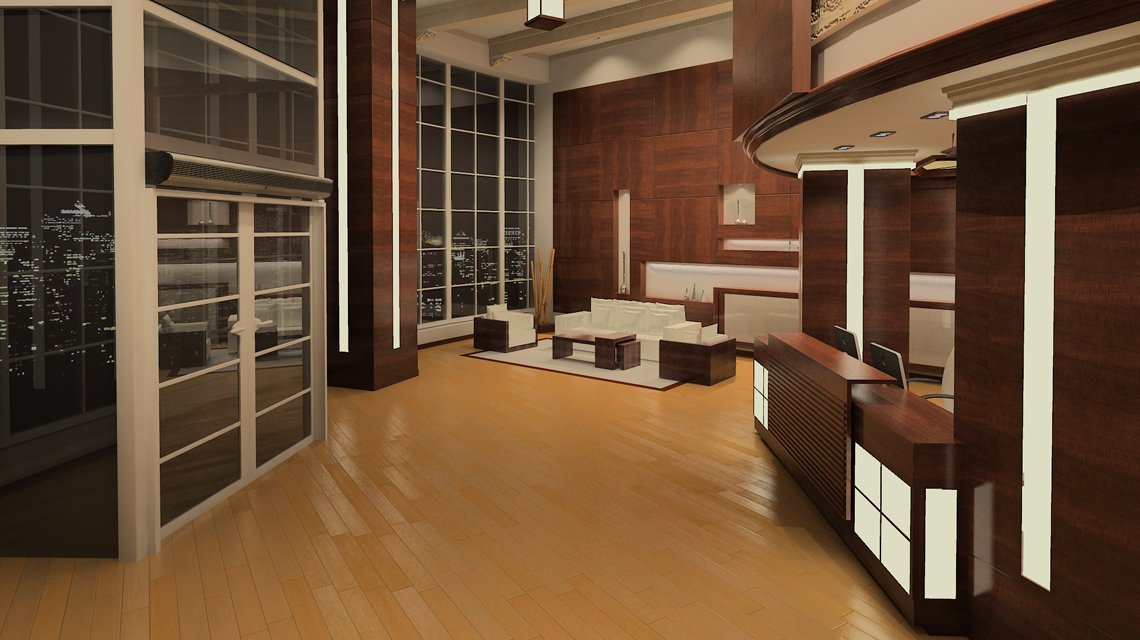

air_door_ad_2000_ambiente02

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    1,52
  • Max absorbed power at Max speed (W)
    350
  • Max ambient temperature for continuous operation (°C)
    30
  • Number of speeds
    2
  • Power absorbed at 1st speed (W)
    300
  • Voltage (V)
    220-240
  • Weight (Kg)
    20,5
  • Airflow at 1st speed (l/s)
    805
  • Airflow at 1st speed (m³/h)
    2900
  • Max airflow at Max speed (l/s)
    1000
  • Max airflow at Max speed (m³/h)
    3600
  • Max flow speed (m/s)
    11
  • Max RPM
    1450
  • Min flow speed (m/s)
    9
  • Min RPM
    1400
  • Sound pressure at 2m at Max speed Lp [dB (A)]
    61
  • Sound pressure at 2m at Min speed Lp [dB (A)]
    59

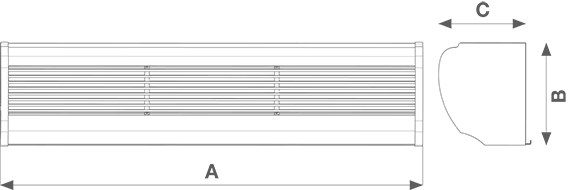

  • Size A (mm)
    2000
  • Size B (mm)
    220
  • Size C (mm)
    190
quota
