Description

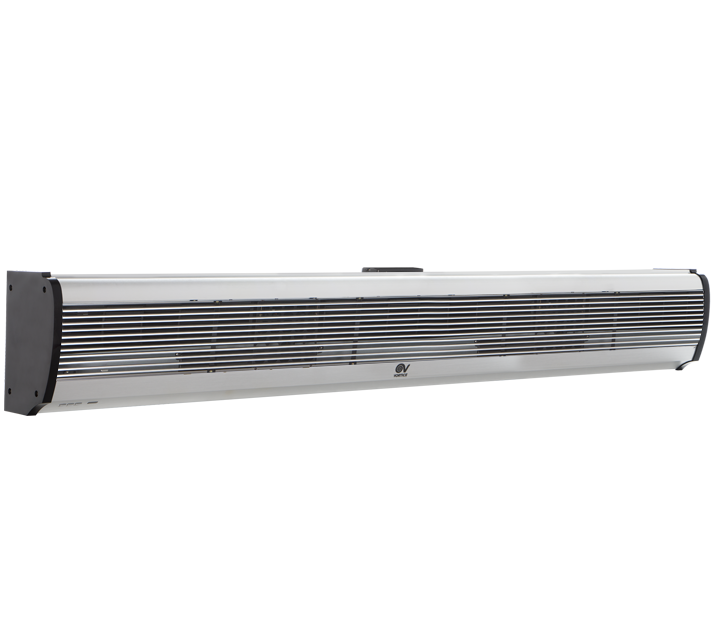

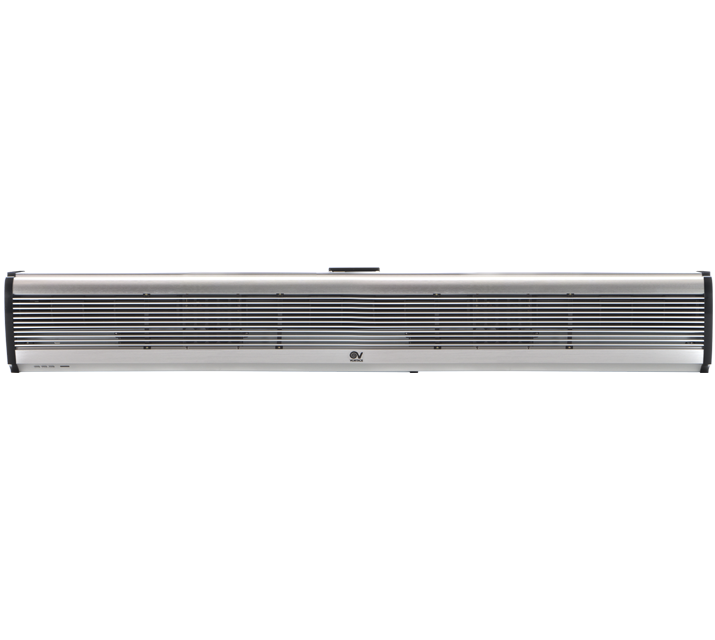

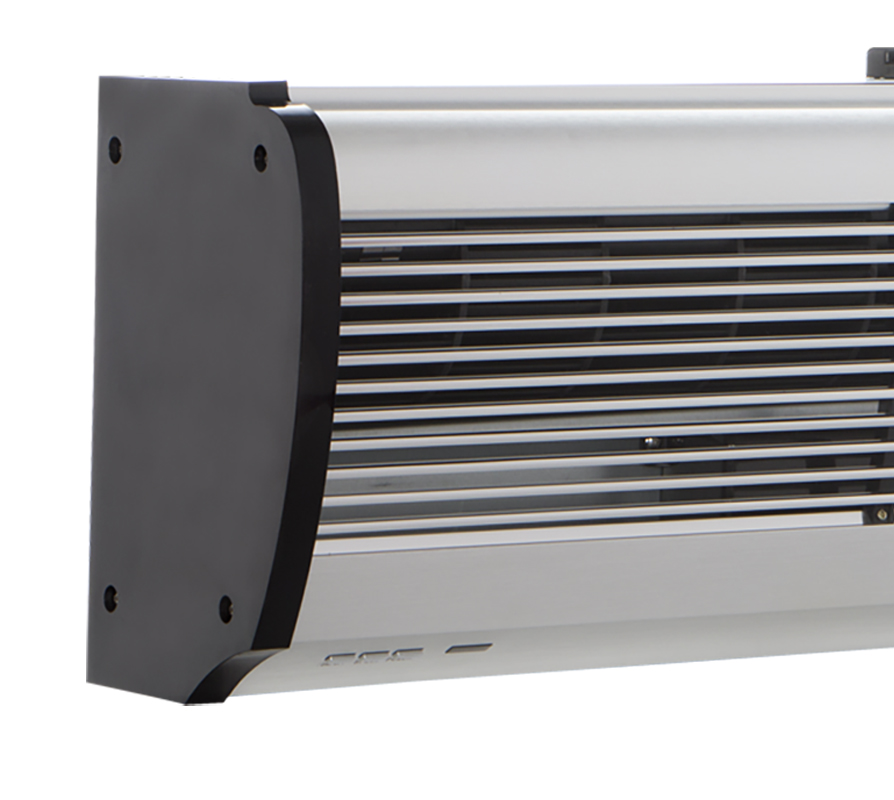

• Aluminium front panel with satin finish, colour silver, and air inlet grille comprising 9 horizontal sections of polished aluminium. Rear pressed steel casing, colour black, functions as a frame to which all internal components are fixed. End caps moulded in ABS thermoplastic resin, colour black.
• Nominal width of appliance: 1500 mm.
• Twin-shaft induction motor with thermal overload protection, 2 speeds.
• Minimum air flow: 1900 m3/h
• Maximum air flow: 2200 m3/h
• 2 tangential fans moulded in thermoplastic resin (SAN) and ultrasonically welded, colour black, force air through a longitudinal vent located in the underside of the appliance.
• Electric battery with thermistors (PTC) featuring high thermal yields and reduced aerodynamic drag , protected against overtemperatures and power surges.
• Fun shutdown system by 30” after switching off the heating element.

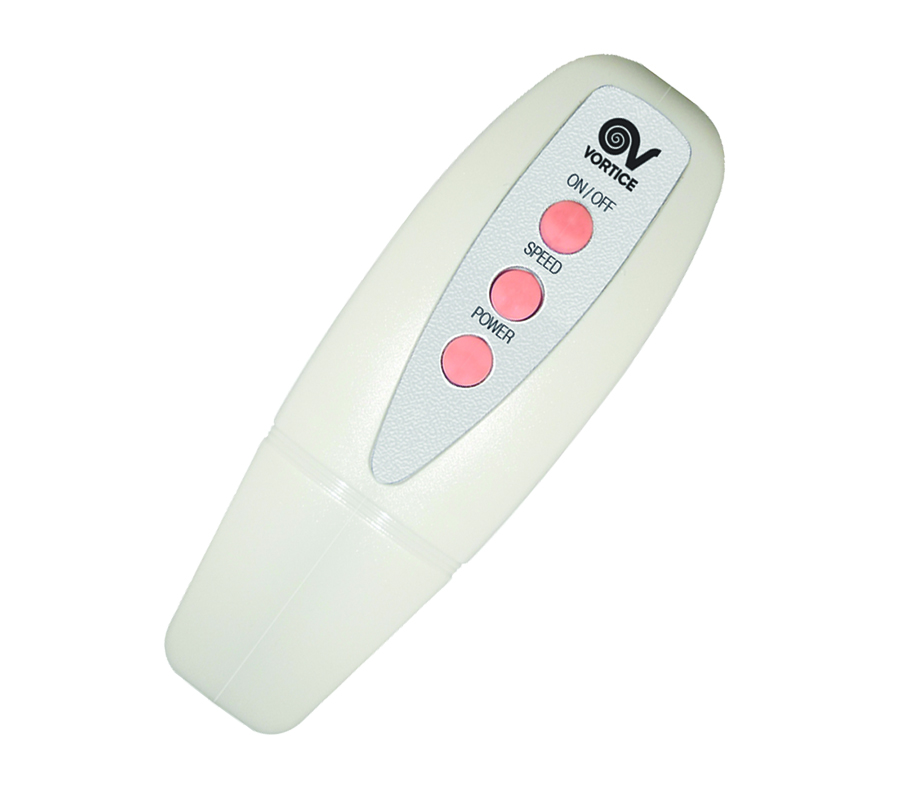

• Infrared remote control for switching on/off, selecting the desired operating speed and switching on the heating element. These same controls are also available on the front panel of the appliance (3 buttons).
• Adjustable flaps for orientation of air stream.
Read full descriptionClose description

Certifications

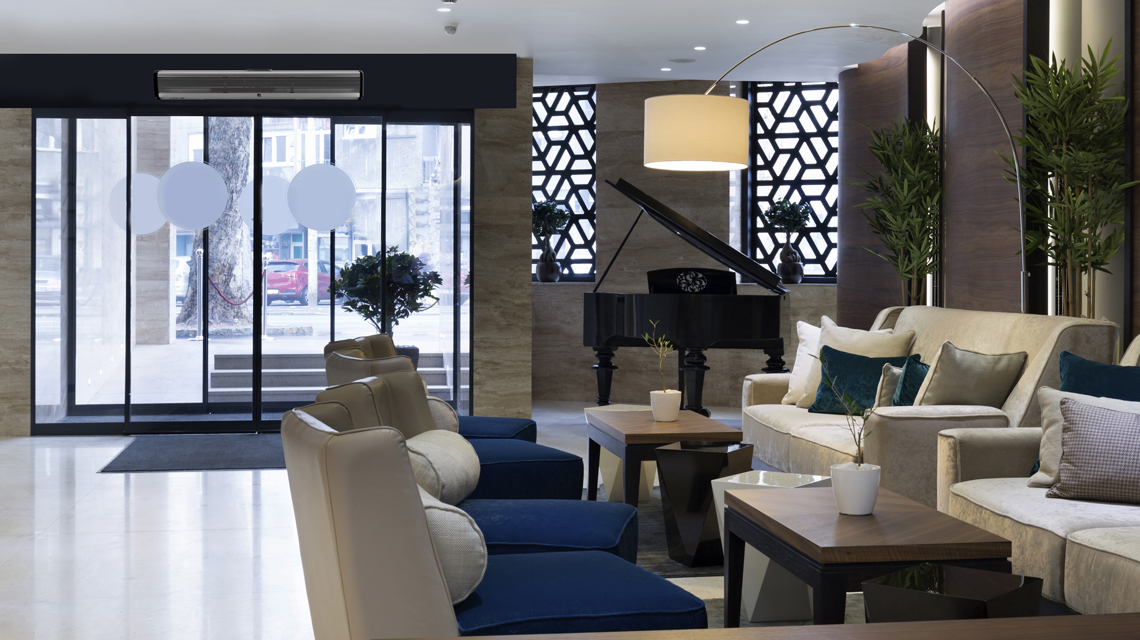

air_door_h_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    18
  • Max absorbed power at Max speed (W)
    10650
  • Max ambient temperature for continuous operation (°C)
    25
  • Number of speeds
    2
  • Voltage (V)
    400
  • Weight (Kg)
    18
  • Airflow at 1st speed (l/s)
    528
  • Airflow at 1st speed (m³/h)
    1900
  • Max airflow at Max speed (l/s)
    611
  • Max airflow at Max speed (m³/h)
    2200
  • Max flow speed (m/s)
    9.5
  • Min flow speed (m/s)
    8.5
  • Power setting 1 (W)
    3300
  • Power setting 2 (W)
    6700
  • Power setting 3 (W)
    10000
  • Sound pressure at 2m at Max speed Lp [dB (A)]
    59
  • Sound pressure at 2m at Min speed Lp [dB (A)]
    57

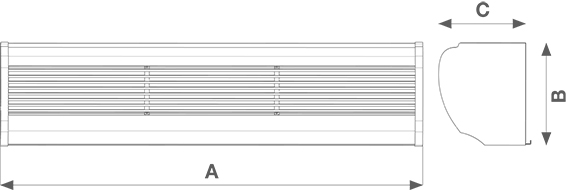

  • Size A (mm)
    1500
  • Size B (mm)
    260
  • Size C (mm)
    190
