Description

• Cabinet, filter cover and grille made of wood finished both inside and outside with two-part naturally hardening polyurethane paint, colour black.
• 3 speed start capacitor motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Aluminium mesh prefilter.
• Electrostatic filter, electronically controlled.
• Granular activated carbon filter.
• Ionizing electrodes selectable by way of dedicated switch.
• On/off switch.
• Fan speed controlled by 3-position rotary switch.
• Electromechanical 24h timer with option of manual or automatic operation.
• 4 caster wheels.
• Power cord with moulded plug.
• IMQ safety certification.
Read full descriptionClose description
vortronic_ambiente01
vortronic_ambiente02

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • Max absorbed current (A)
    0,38
  • Max absorbed power (W)
    72
  • Recommended room size (m³)
    200
  • Voltage (V)
    230
  • Weight (Kg)
    30
  • Sound power at Mid speed LWA [dB(A)]
    55
  • Sound power at Min speed LWA [dB(A)]
    36
  • Sound power at Min speed LWA [dB(A)]
    56
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    24,9
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    41,8
  • Sound pressure at 3m at Min speed Lp [dB (A)]
    40,4

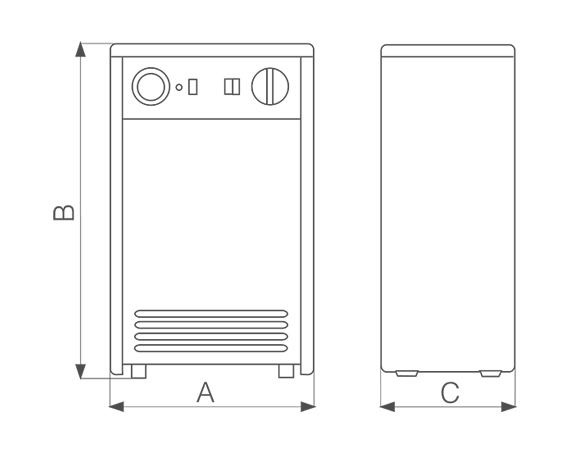

  • Size A (mm)
    425
  • Size B (mm)
    800
  • Size C (mm)
    370
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
