Description

Device for CO2 environmental concentration monitoring; adjustable threshold in the range 0 - 5,000 ppm.
Exceeding the threshold value causes the switch on of the two VORTICE VARIO fans; the drop in the concentration of carbon dioxide below the safety value causes the fans switch off.
• Integrated relative humidity sensor allows to show temperature and RH values.
• Possibility to program, on a weekly basis, the switching on/off of the fans (ideal, for example, in the case of use in classrooms, refectories, canteens, etc.).
• Possibility of integration into a building management system (BMS - Building Management System), Modbus protocol, integrated RS485 port.
• Graphic display, for immediate understanding of system status and environmental parameters.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50/60
  • Voltage (V)
    220-240
  • Weight (Kg)
    0,16

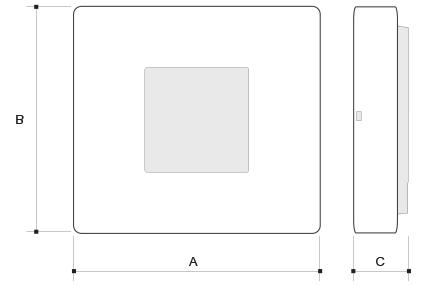

  • Size A (mm)
    101
  • Size B (mm)
    93
  • Size C (mm)
    24
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
