Description

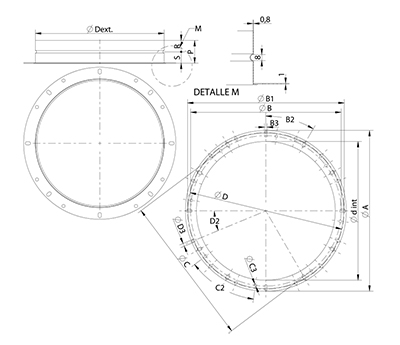

Technical Data Sheet
-
Weight (Kg)0,70
-
DExt (mm)298
-
Dimension B2 (mm)8x45°
-
Dimension B3 (mm)11
-
Dimension C2 (mm)8x45°
-
Dimension C3 (mm)7
-
Dimension R=S (mm):35
-
DInt (mm)299
-
Size A (mm)380
-
Size B (mm)355
-
Size B1 (mm)366
-
Size C (mm)320
-
Size D (mm)332
-
Size D2 (mm)8x45°
-
Size D3 (mm)12
-
Size P (mm)70
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
