Description

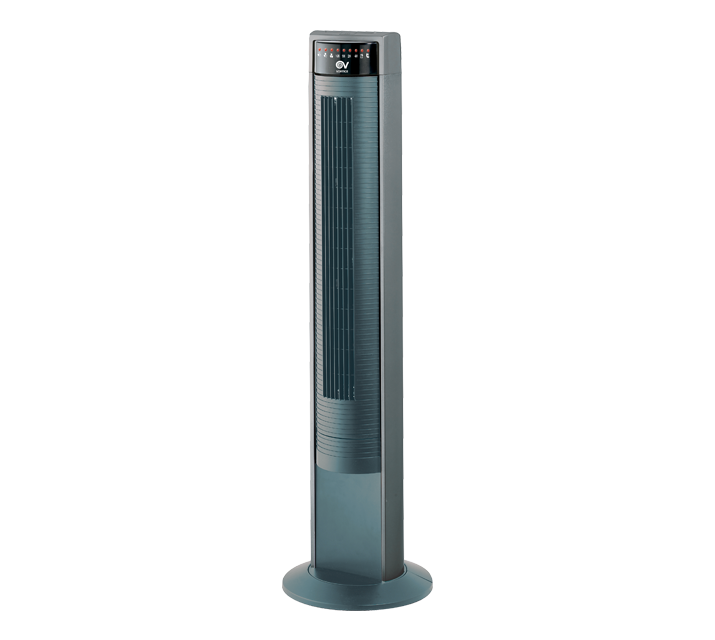

• Outer casing, base, tangential (cross-flow) impeller, scroll and remote control shell moulded from thermoplastic resin (ABS).
• Supporting structure provided by two extruded aluminium columns, one on either side, connected to the base and rotatable about a vertical axis through 60° approx to channel the flow of air in the preferred direction
• 3 speed induction motor with start capacitor, shaft turning in high quality self-aligning and self-lubricating bushings; protected by thermal load limiter
• Air flow 1300 m3/h
• Mechanism inducing oscillation about vertical axis, driven by synchronous electric motor.

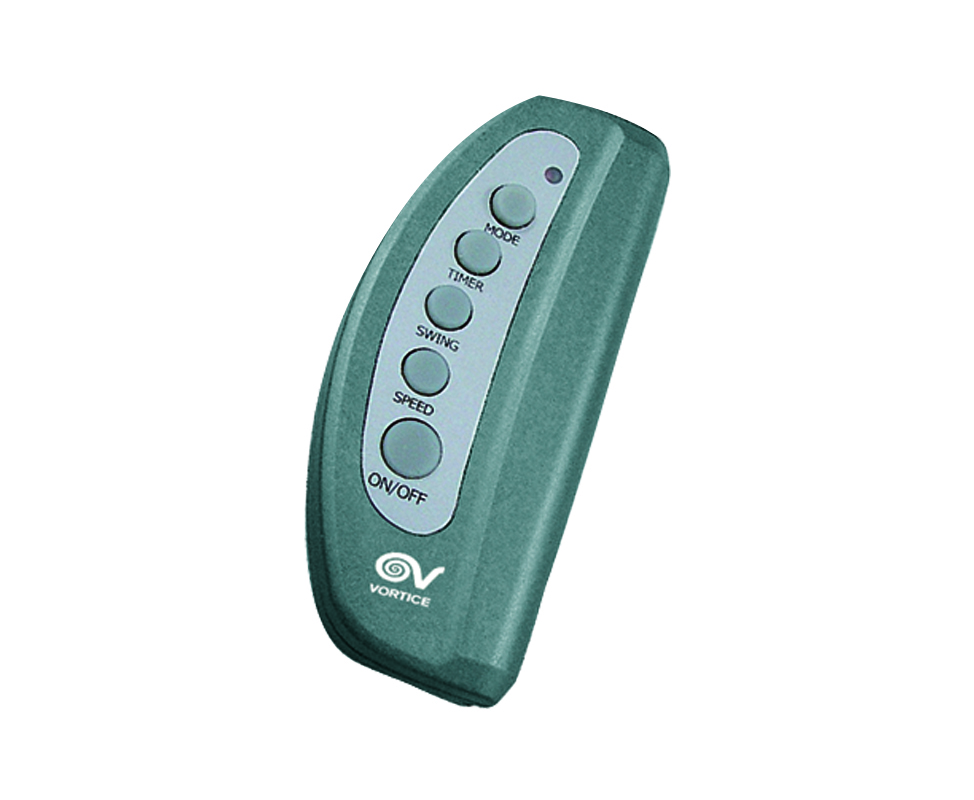

• Infrared remote control supplied as standard

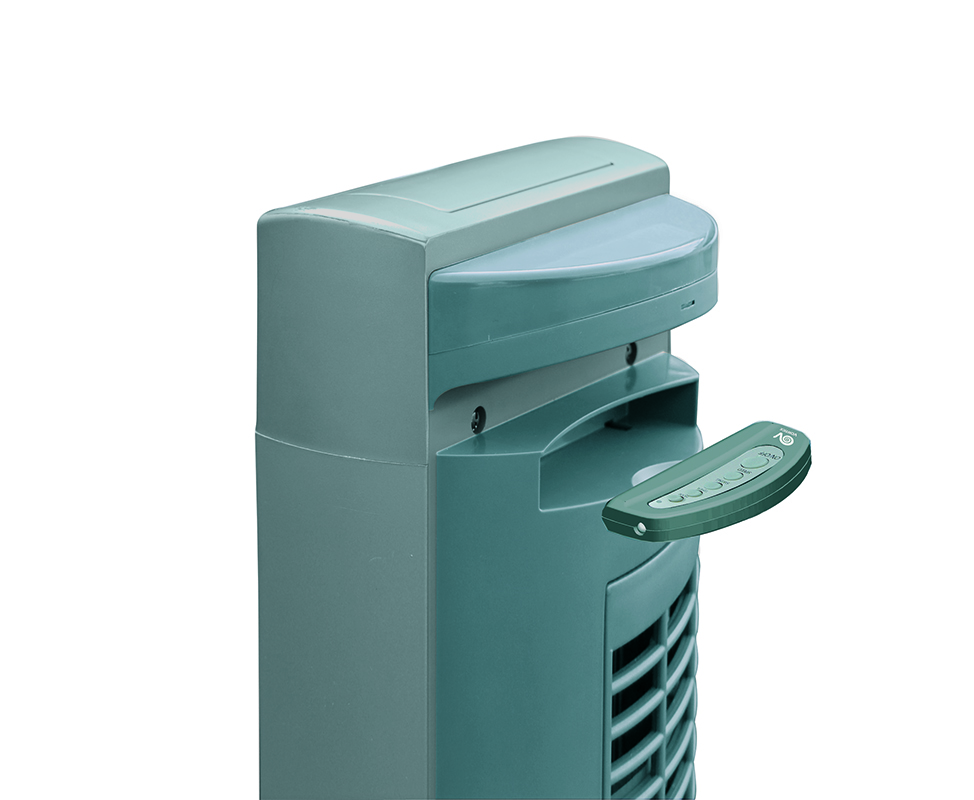

• Remote control functions duplicated by Soft Touch local controls positioned at the top of the tower and protected by a cover provided with cushioned retaining catch.

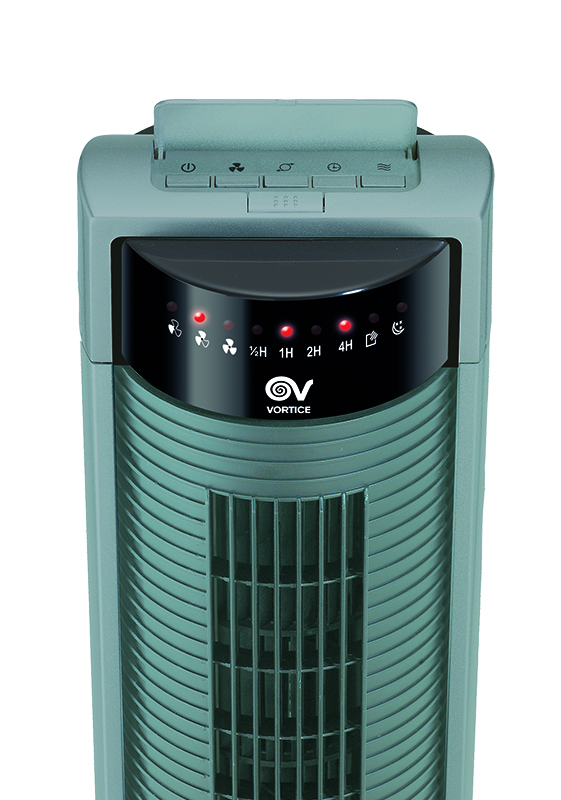

• Set of luminous indicators located on the top front section of the tower casing, showing the selected operating mode of the appliance
• PVC power cord, length 2 m, with 10A moulded plug (versions also available with Schuko 16A plug and UK 13A plug).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,18
  • Absorbed Power max (W)
    40
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • Voltage (V)
    220-240
  • Weight (Kg)
    5,2
  • Airflow speed at max speed (m/s)
    2,52
  • Delivery max (m³/h)
    2323
  • Delivery max (m³/min)
    38,72
  • Power in stand-by mode (W)
    0.1577
  • RPM
    1200
  • Service value (m³/min)/W
    0,968
  • Sound power level Lw [dB(A)]
    55,2
  • Size A (mm)
    306
  • Size B (mm)
    172
  • Size C (mm)
    1050
