Code 60610

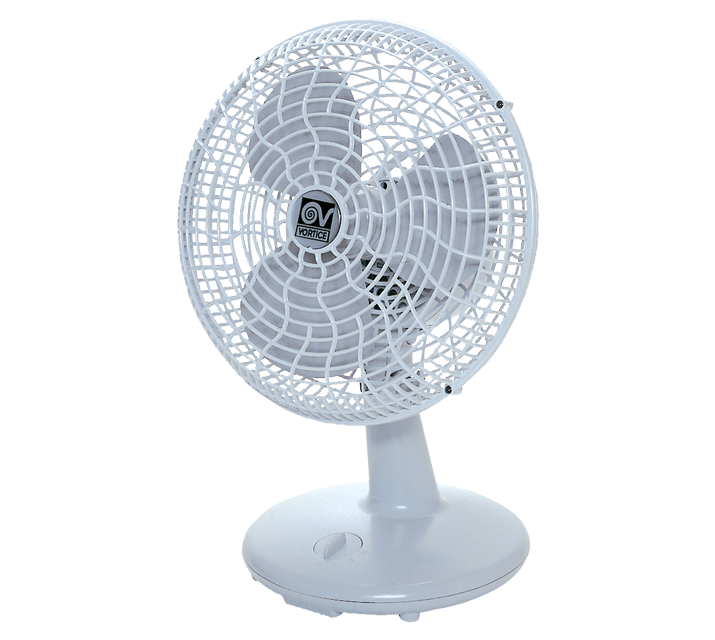

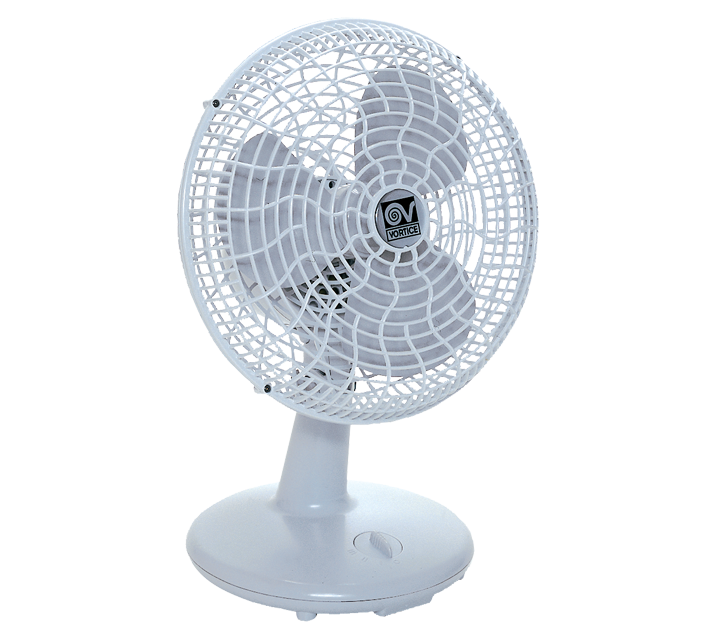

GORDON 30/12"

Oscillating table, wall-mounting and pedestal fans

Description

• Material: plastic resin able to withstand aging induced by exposure to sunlight (UV-resistant), and formulated with an antistatic compound to prevent accumulation of dust.
• Nominal diameter 300 mm
• 3 speed asynchronous motor with thermal overload protection and shaft turning in self-aligning and self-lubricating bushings, coupled to oscillating mechanism generating movement through an angle of approx 90° maximum.
• Motor housing equipped with hinge and clamp knob for adjustment of tilt angle.
• Rotary on/off switch and fan speed selector
• Power cord with moulded plug.
• Maximum air flow 2,400 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,18
  • Absorbed Power max (W)
    35
  • Frequency (Hz)
    50/60
  • Insulation Class
    II°
  • Max. absorbed power at max speed (W)
    35
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,4
  • Airflow speed at max speed (m/s)
    1,70
  • Delivery max (m³/h)
    2400
  • Delivery max (m³/min)
    40,00
  • giri_minuto
    1300
  • RPM
    1300
  • Service value (m³/min)/W
    1,143
  • Sound power level Lw [dB(A)]
    50,8

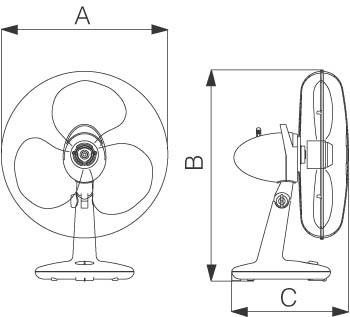

  • Size A (mm)
    Ø 364
  • Size B (mm)
    523,5
  • Size C (mm)
    302,6
