Code 45093

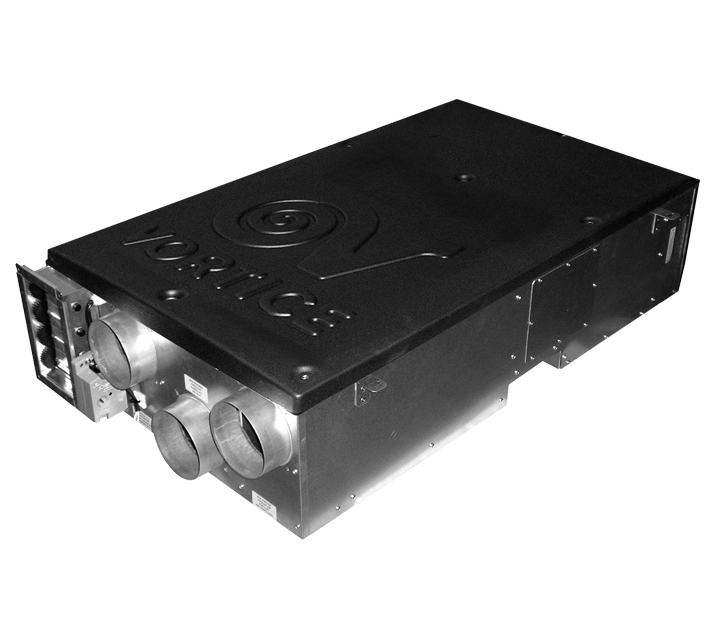

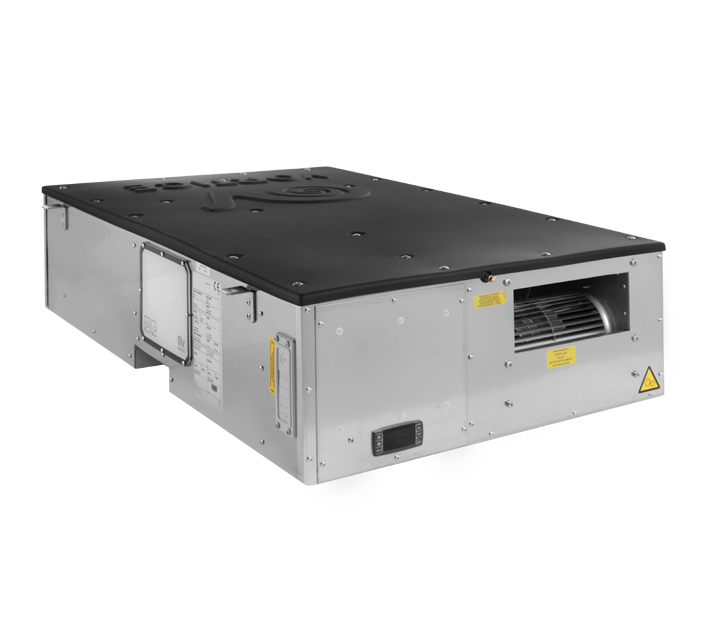

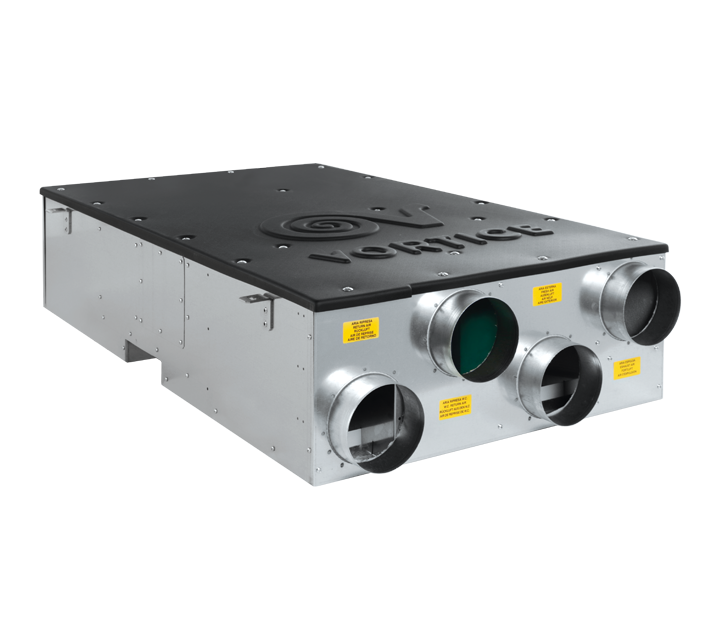

VORT HRI 500 DH

Ceiling-mounting heat recovery units with built-in dehumidifier

Description

• Zinc-coated pressed steel enclosure with removable panels.
• 2 x EC brushless motor with shafts turning in ball bearings, coupled to centrifugal impellers.
• Trimmer control allowing selection of speeds from 0 to Max in response to system pressure losses.
• Ventilation air flow between 140 m3/h and 250 m3/h.
Dehumidifying air flow between 250 m3/h and 500 m3/h.
• Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic (PS)
• It contains fluorinated greenhouse gases.
• Compressor operating with HFC-R410A refrigerant
• Prewired for electronic thermo-hygrostat (product code 22608)
• Dual water/air condenser
• Flow switch
• Three-way modulating valve

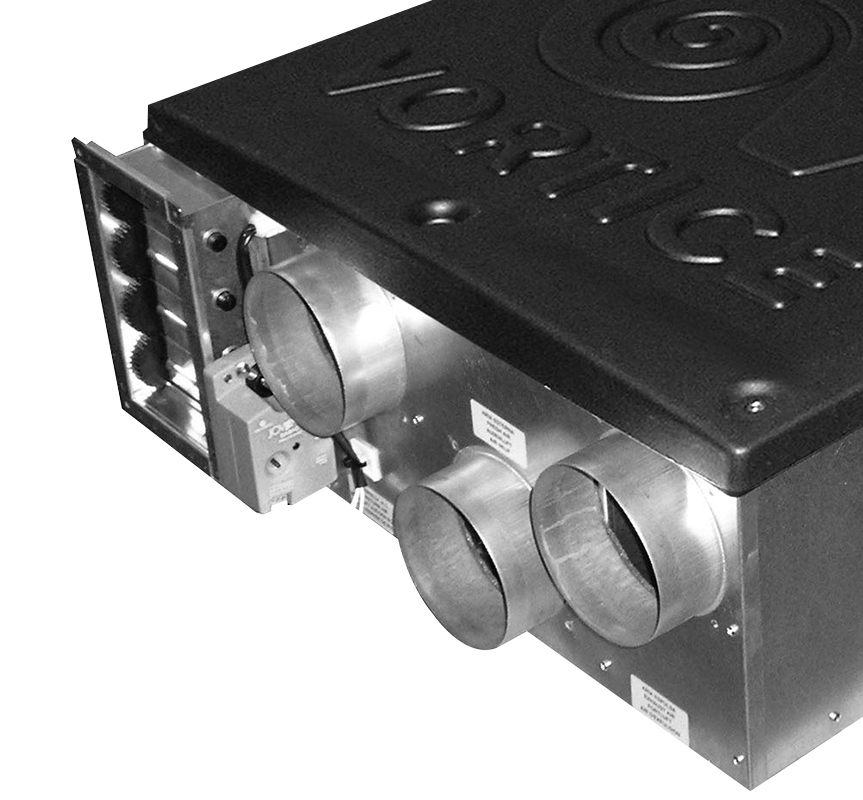

• Motorized recirculation damper
• Antifreeze protection
• 2 x G4 filters

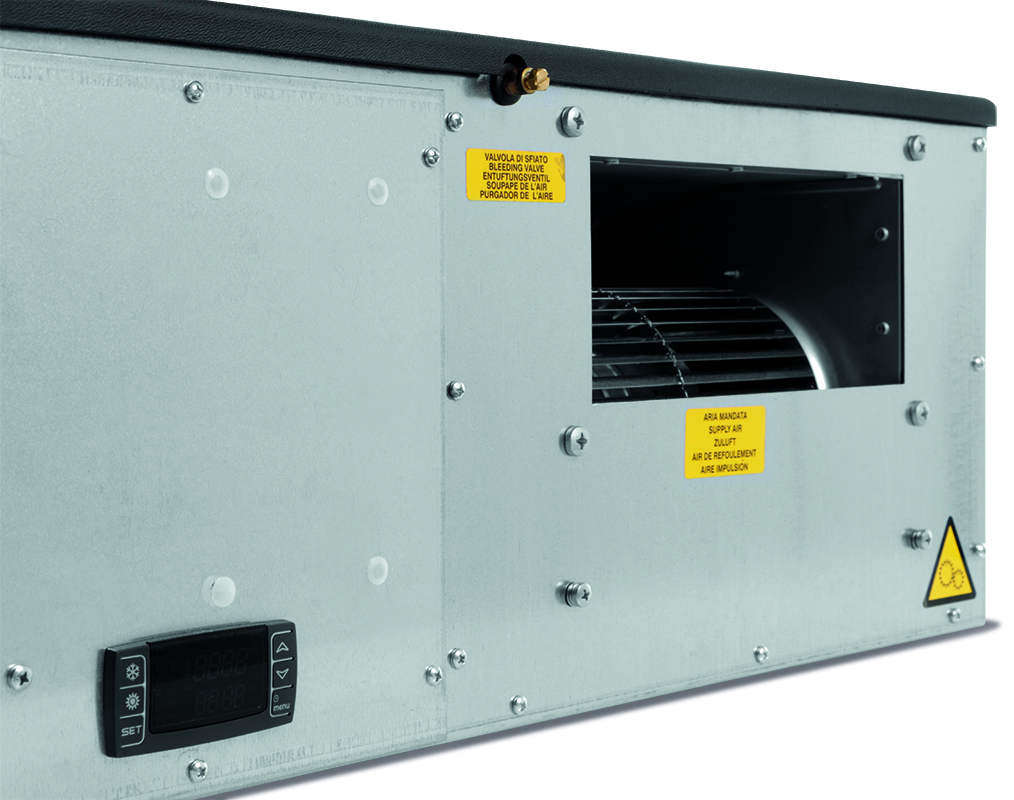

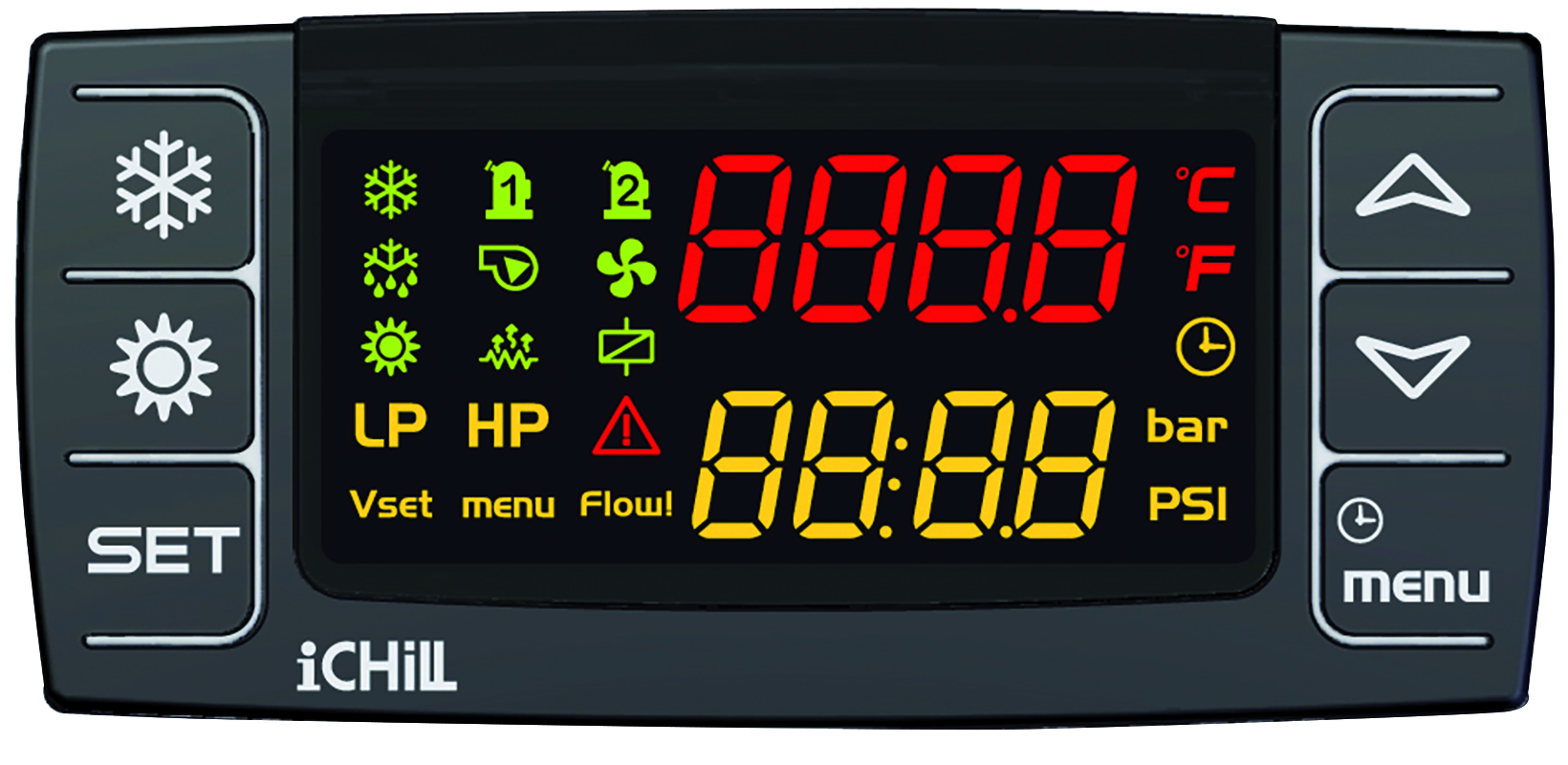

• Electronic control unit with microprocessor and LCD display
• Remote control panel RCP (code 22607) available as optional
• Hermetically sealed equipment.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed power of extract fan (reg. Min /Nominal/Max) (W)
    22/44/68/
  • Absorbed power of supply fan (reg. Min /Nominal/Max) (W)
    30/60/130/
  • Compressor nominal absorbed power (W)
    480
  • Filter class
    M5
  • Frequency (Hz)
    50
  • Indoor total cooling capacity (W)
    2820
  • Insulation class
  • IP
    X2
  • Nominal diameter (mm)
    160
  • Refrigerant type
    R410A
  • Sensible heat recovery in winter
    1850
  • Voltage (V)
    230
  • Weight (Kg)
    80
  • Airflow in summer mode (m3/h)
    500
  • Airflow in winter mode (m3/h)
    150-240
  • Dehumidification capacity (l/24 hr)
    61,8
  • Nominal pressure drop of hydraulic circuit (kPa)
    35
  • Pressure of extract fan (Pa)
    50-140
  • Pressure of supply fan (Pa)
    50/140/
  • Sound power Lw [dB(A)]
    52
  • Sound pressure Lp [dB (A)] at 3 m
    44
  • Summer nominal efficiency (%)
    72
  • Water coil flow rate (reg. Min /Nominal/Max) (l/h)
    200/350/600/
  • Winter nominal efficiency (%)
    90
  • Supplier's name or trade mark
    NA
  • Condensate drain pipe Ø C (mm)
    20

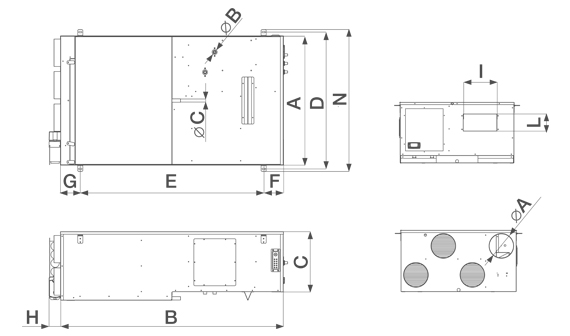

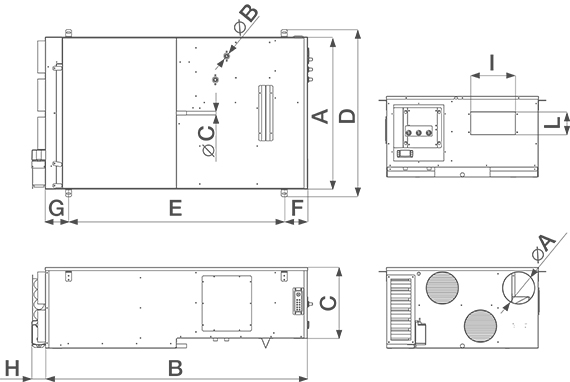

  • Size A (mm)
    756
  • Size B (mm)
    1308
  • Size C (mm)
    405
  • Size D (mm)
    802
  • Size E (mm)
    1074
  • Size F (mm)
    117
  • Size G (mm)
    117
  • Size H (mm)
    38
  • Size I (mm)
    224
  • Size L (mm)
    114
  • Size N (mm)
    832

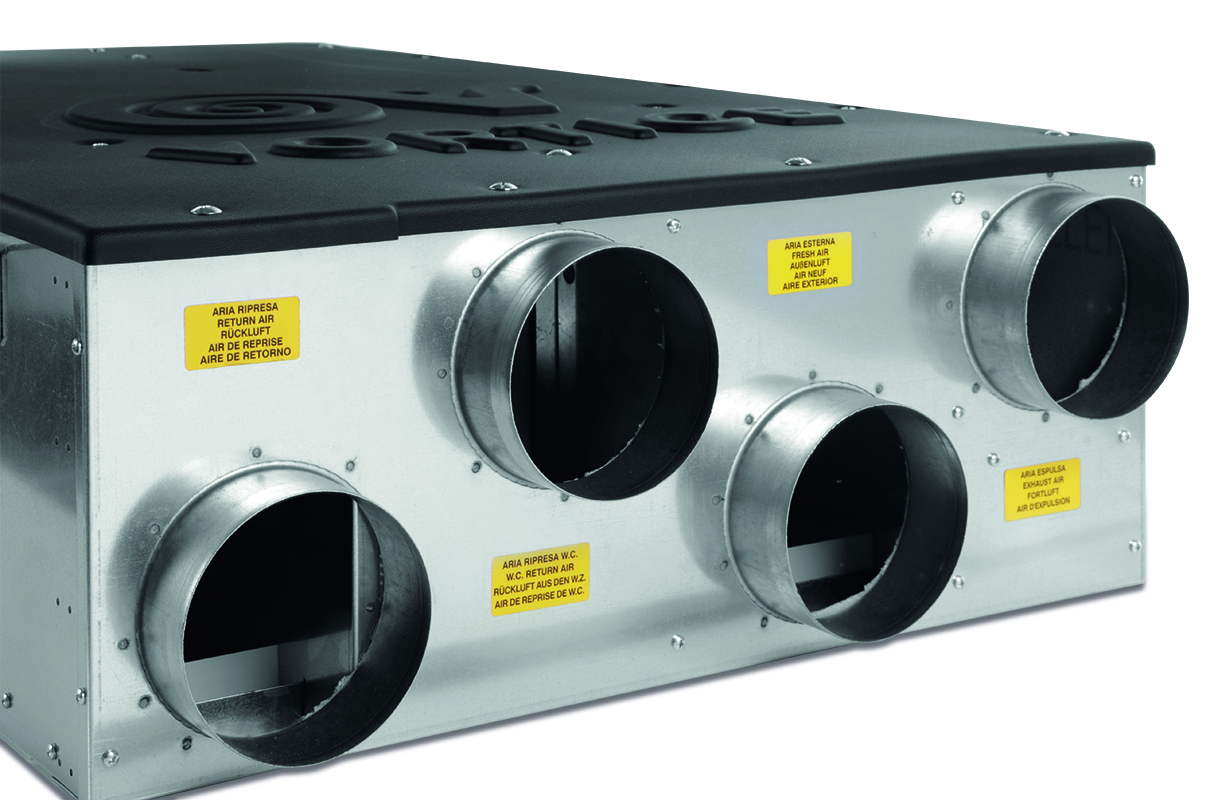

  • Vent diameter Ø A (mm)
    160
  • Water discharge pipe Ø B (mm)
    1/2"
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

R2T 500 (HRI DH)
R2T 500 (HRI DH)

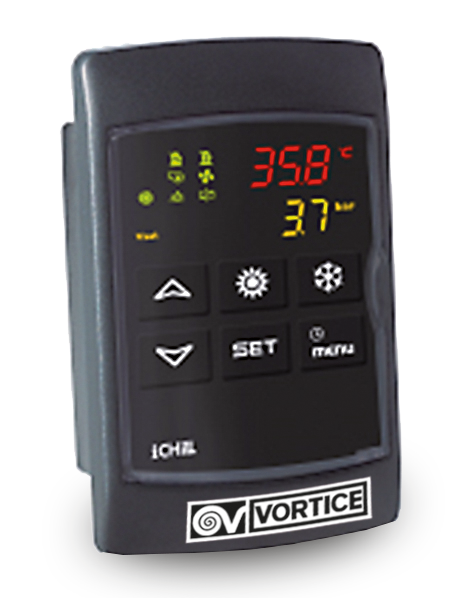

RCP (HRI DH)
