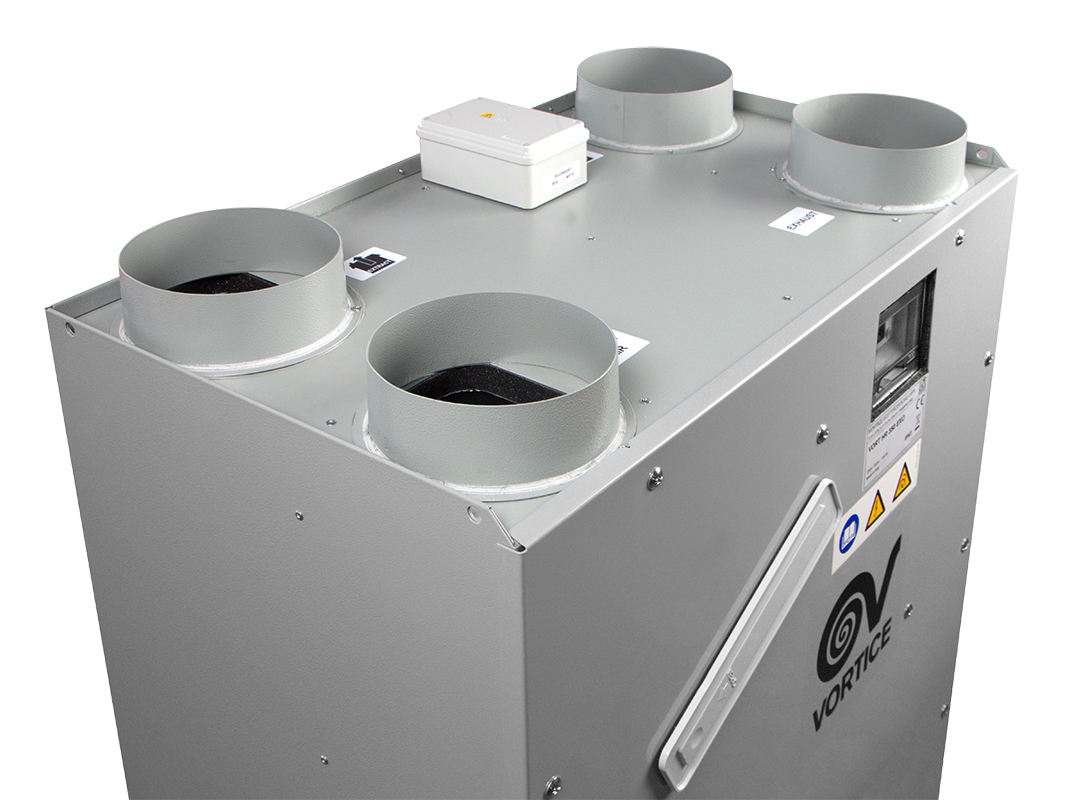

VORT HR 350 EXO
Wall-mounting residencial heat recovery unit designed for outdoor installation
Description
• Zinc-coated pressed steel enclosure; interior lined with sound-absorbent and fire-resistant material (DIN 13501)
• Duct connection ports of nominal diameter 150 mm.
• 2 x EC brushless motor with shaft turning in ball bearings, each coupled to a backward curved centrifugal impeller; 3 speeds, selectable independently at the moment of installation.
• Air flow settable between 115 m3/h and 350 m3/h.

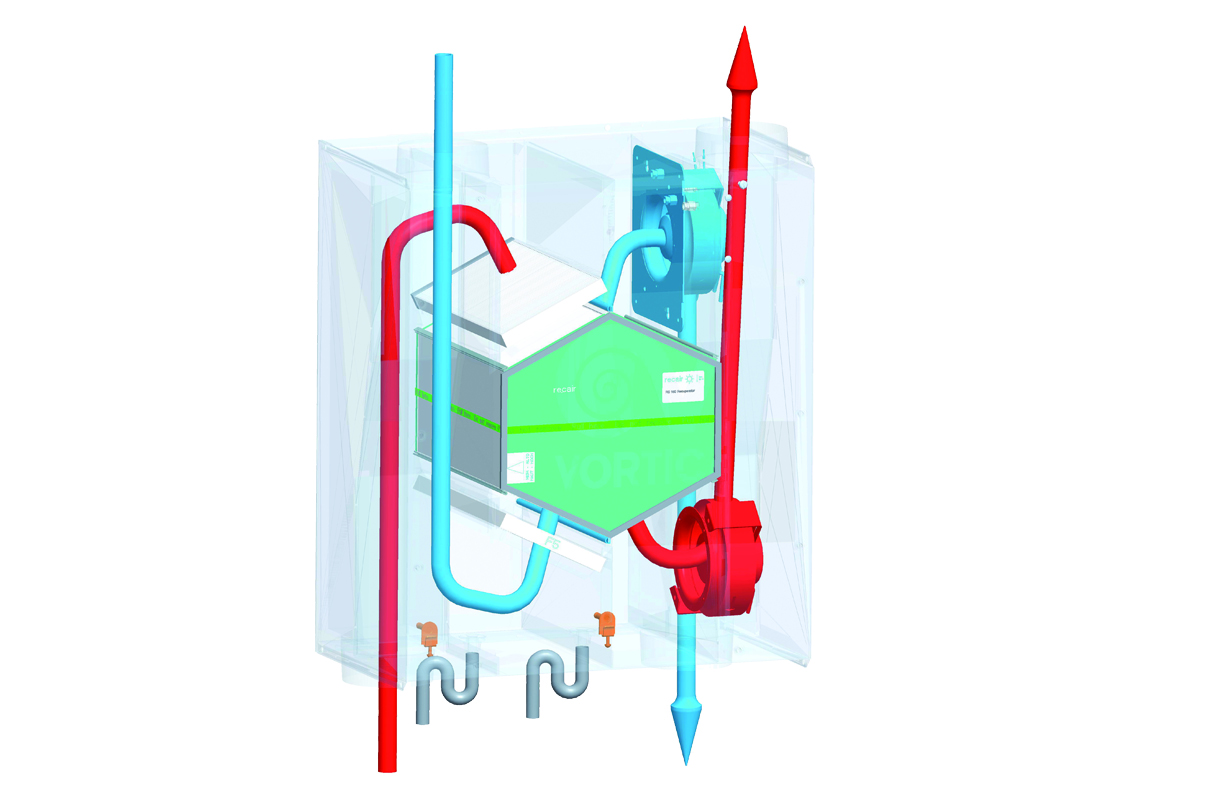

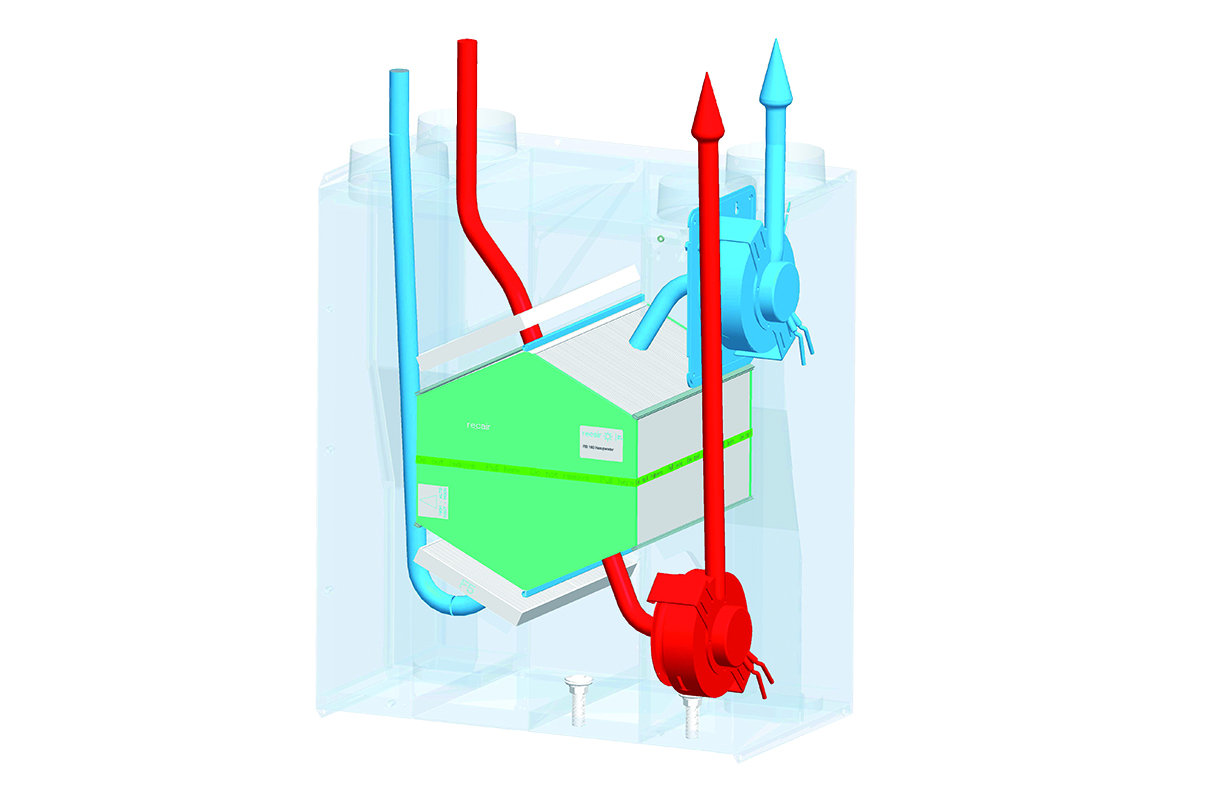

• Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic (PS).
• Automatically activated system designed to prevent icing of the heat exchanger.

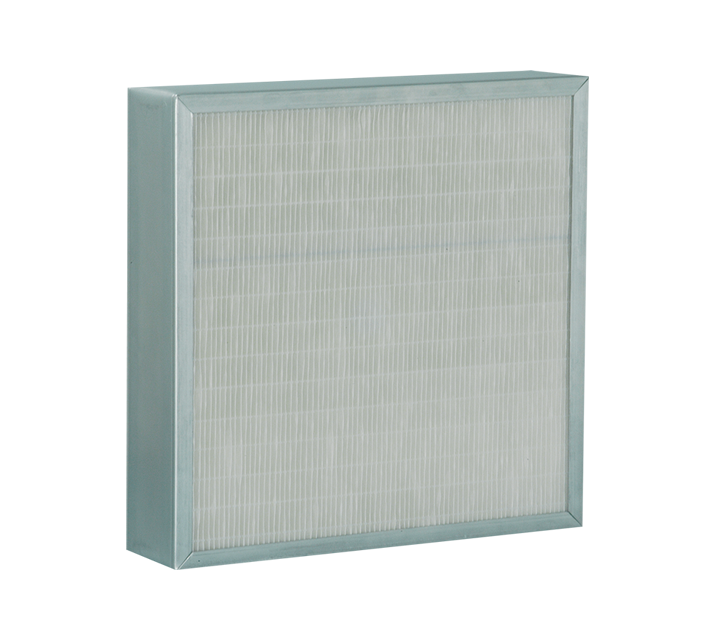

• 2 x F5 filter (alternatively, option of F7 filter on outlet duct)

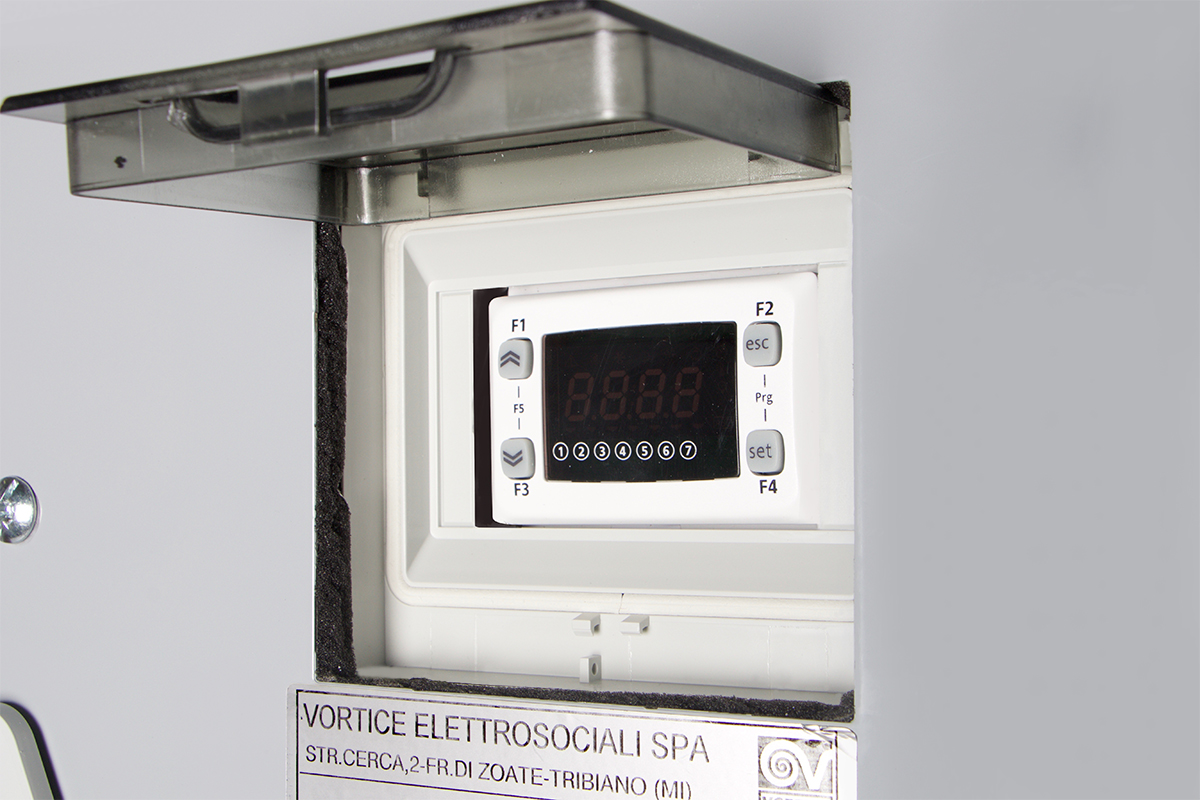

• Blocked filter status monitoring system
• Brackets for wall-mounted installation
• Duct connection ports of nominal diameter 150 mm.
• 2 x EC brushless motor with shaft turning in ball bearings, each coupled to a backward curved centrifugal impeller; 3 speeds, selectable independently at the moment of installation.
• Air flow settable between 115 m3/h and 350 m3/h.
• Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic (PS).
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x F5 filter (alternatively, option of F7 filter on outlet duct)
• Blocked filter status monitoring system
• Brackets for wall-mounted installation
Energy label
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IPX2
-
Max absorbed current (A)1,2
-
Max absorbed power (W)140
-
Max ambient temperature for continuous operation (°C)50
-
Voltage (V)230
-
Weight (Kg)38
-
Breakout sound power LWA [dB(A)]56,5
-
Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]36,0
-

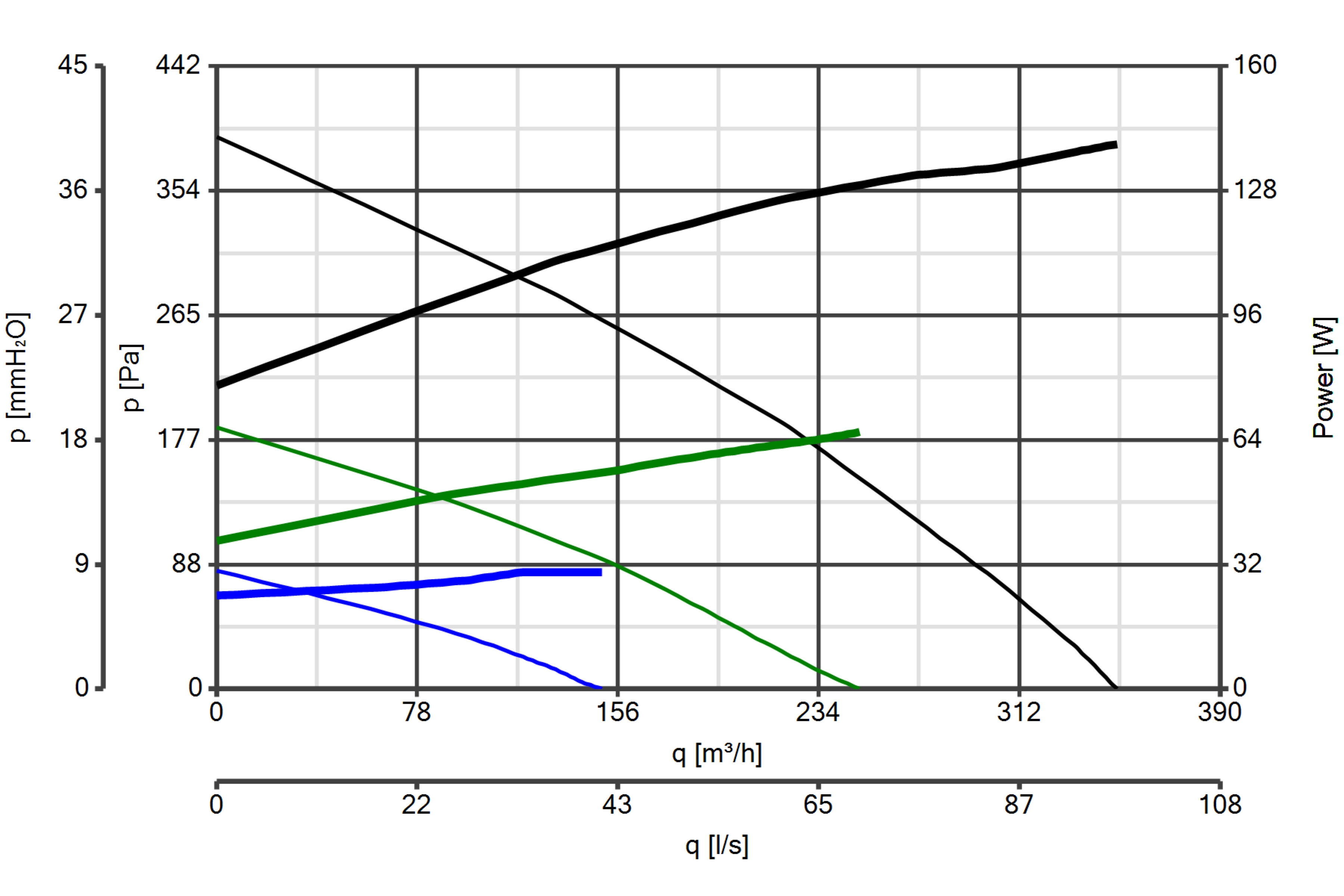

Max airflow (l/s)97,2
-
Max airflow (m³/h)350
-
Max pressure (mmH2O)40
-
Max pressure (Pa)392
-
Sound power at exhaust inlet LWA [dB(A)]31,2
-
Sound power at supply outlet LWA [dB(A)]53,9
-
Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]10,7
-
Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]33,4
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneA+
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-42,3
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-81,2
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-17,4
-
Declared typeUVR-B: bidirezionale
-
Type of drivevariatore di velocità: VSD
-
Type of heat recovery system HRSa recupero
-
Thermal efficiency of heat recovery at reference airflow [%]89,9
-
Max airflow [m3/h]284
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]66,0
-
Sound power LWA [dB(A)]57
-
Reference airflow [m3/s]0,0556
-
Reference ? pressure [Pa]50
-
SPI [W/(m3/h)]0,15500
-
Control factor CTRL0,85
-
Control typeamb. centralizzato
-
Max internal leakage rate [%]15,5
-
Max external leakage rate [%]8,2
-
Mixing rateNA
-
Position and description of visual filter warningVedi libretto istruzioni
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]185
-
AHS temperate annual energy saved [kWh primary energy/y]4627
-
AHS cold annual energy saved [kWh primary energy/y]9052
-
AHS warm annual energy saved [kWh primary energy/y]2092
-
Ø (mm)150
-
Size A (mm)704
-
Size B (mm)913
-
Size C (mm)429
-
Size D (mm)804
-
Size E (mm)100
-
Size F (mm)300
