Description

• Materials: fire-resistant expanded polypropylene; front panel made of filled thermoplastic resin
• Duct connection ports of nominal diameter 150 mm
• 2 x EC brushless motor with shafts turning in ball bearings, each coupled to a backward curved centrifugal impeller; 3 speeds, selectable independently at the moment of installation.
• Air flow settable between 50 m3/h and 380 m3/h
• Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic
• Automatic or manual operation
• 100% bypass, automatic or manual control
• Equipped with two way radio remote control used for the purposes of initial setting, selection of operating mode and diagnostics.
• Filter clogging status monitored automatically
• Equipped with Temperature + Relative Humidity (R.H.) sensor and CO2 sensor, providing signals that will control operating speed automatically, achieving the best possible balance between quality of the ambient air, energy consumption and noise emissions.
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x M5 filter (option of additional F7 filter on outlet duct)
• condensate drain hose;
• pipette for connection of drain hose
• silencer of nominal diameter 150 mm and length 0.5 m, for installation downstream of the appliance on the
supply duct connecting with the rooms.
• 2 x metal bracket for suspended vertical mounting of the appliance;
• 4 x mount for horizontal installation
• Energy performance certified by CASACLIMA (Italy), BRE (UK), CETIAT (France), EPBD (Belgium)
Read full descriptionClose description

Certifications

  • CE CE
  • EAC EAC
Energy label Energy label

Technical Data Sheet

  • Filter class
    F5
  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X2
  • Max absorbed current (A)
    1,3
  • Max absorbed power (W)
    160
  • Nominal diameter (mm)
    150
  • Voltage (V)
    230
  • Weight (Kg)
    25
  • Breakout sound power LWA [dB(A)]
    62,4
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    41,9
  • Max airflow (l/s)
    106
  • Max airflow (m³/h)
    380
  • Max pressure (mmH2O)
    68,8
  • Max pressure (Pa)
    675
  • Max thermal efficiency (%)
    92
  • Sound power at exhaust inlet LWA [dB(A)]
    55,5
  • Sound power at supply outlet LWA [dB(A)]
    62,7
  • Sound pressure at 3m at Max speed at extraction side Lp [dB (A)]
    35
  • Sound pressure at 3m at Max speed at supply side Lp [dB (A)]
    42,2
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    A
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    -37,6
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -76,1
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    -12,9
  • Declared type
    UVR-B: bidirezionale
  • Type of drive
    variatore di velocità: VSD
  • Type of heat recovery system HRS
    a recupero
  • Thermal efficiency of heat recovery at reference airflow [%]
    88,3
  • Max airflow [m3/h]
    340
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    156,0
  • Sound power LWA [dB(A)]
    62
  • Reference airflow [m3/s]
    0,0661
  • Reference ? pressure [Pa]
    118
  • SPI [W/(m3/h)]
    0,34454
  • Control factor CTRL
    0,85
  • Control type
    amb. centralizzato
  • Max internal leakage rate [%]
    1,2
  • Max external leakage rate [%]
    3,2
  • Mixing rate
    NA
  • Position and description of visual filter warning
    Vedi libretto istruzioni
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    357
  • AHS temperate annual energy saved [kWh primary energy/y]
    4584
  • AHS cold annual energy saved [kWh primary energy/y]
    8967
  • AHS warm annual energy saved [kWh primary energy/y]
    2073
  • Size A (mm)
    840
  • Size B (mm)
    935
  • Size C (mm)
    504
  • Size D (mm)
    560
  • Size E (mm)
    85
  • Size F (mm)
    100
  • Size G (mm)
    156,7
  • Size H (mm)
    133,6
  • Size I (mm)
    176
  • Size L (mm)
    220
  • Size M (mm)
    180,7
  • Size N (mm)
    76
  • Size O (mm)
    99

Accessories

Discover accessories related to the product

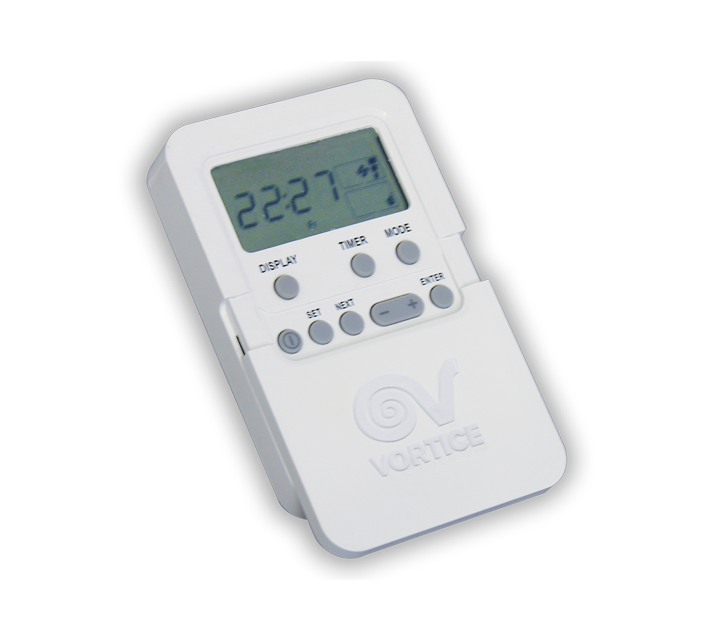

TELECOMANDO VORT HR 400 PLUS
TELECOMANDO VORT HR 400 PLUS
The RF remote control with LCD display featuring new integrated graphics can be used for the following purposes:
• Switching the machine on/off.
• Selecting the...

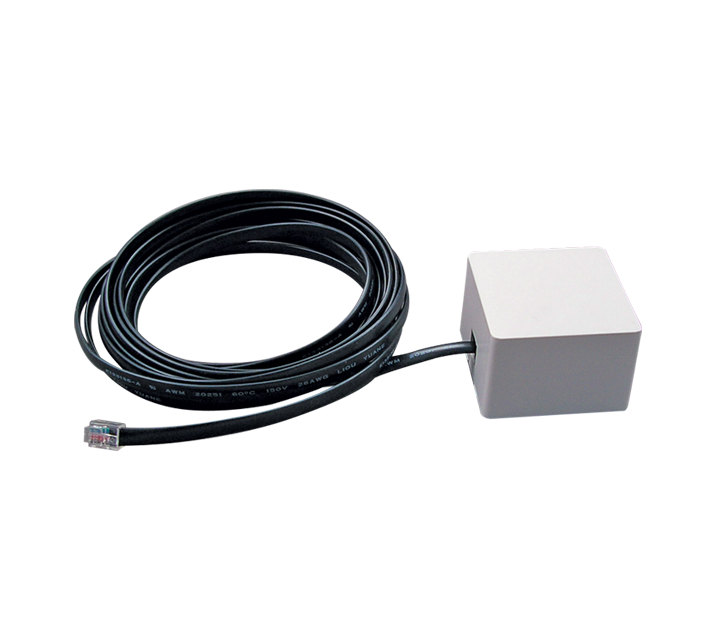

EXTERNAL RF MODULE HR 400 PLUS
