Description
Technical Data Sheet
-
Frequency (Hz)50-60
-
Max absorbed power (W)725
-
Max ambient temperature for continuous operation (°C)50
-
No of blades5
-
Nominal current (A)1,97
-
Nominal diameter (m)3
-
Voltage (V)200-480
-
Weight (Kg)70
-
Max airflow (m³/h)280.000
-
Max RPM150
-
Min RPM10
-
Sound pressure at 5m calculated in free field Lp [dB (A)<60
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

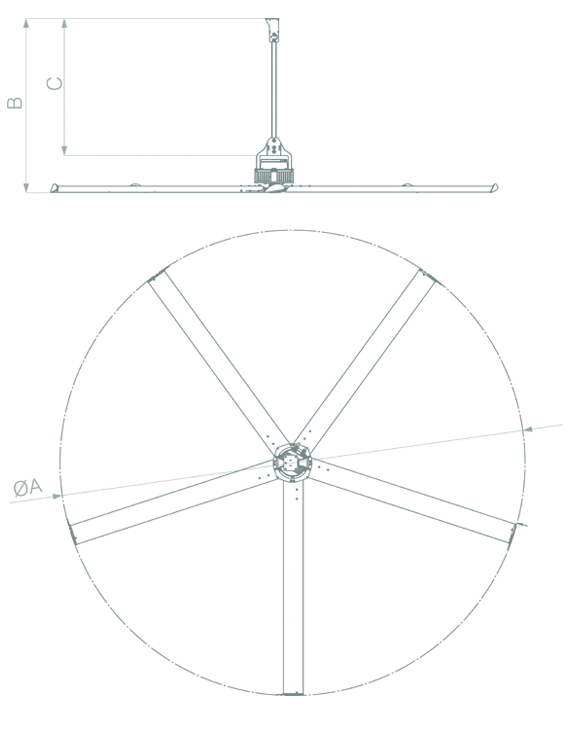

Diameter A (mm)Ø3000
-
Size B (mm)3310
-
Size C (mm)3000
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
VORT T
Multiple control unit for Vortice HVLS SUPER BLADE ceiling fans. It allows the control of up to 20 fans in manual or automatic mode, depending on the temperature measured by the in...
WP
External anemometer to be connected to the VORT T control unit, useful for the automatic control of the ceiling-fan in case of wind gusts.
USB-C
Modbus USB converter compatible with VORT T control unit, useful for remote control of single or multiple ceiling-fans.
