Technical Data Sheet

  • Frequency (Hz)
    50-60
  • IP
    65
  • Max absorbed power (W)
    650
  • Max ambient temperature for continuous operation (°C)
    50
  • No of blades
    5
  • Nominal current (A)
    1,67
  • Nominal diameter (m)
    4
  • Voltage (V)
    200-480
  • Weight (Kg)
    96,5
  • Max airflow (m³/h)
    370.000
  • Max RPM
    100
  • Sound pressure at 5m calculated in free field Lp [dB (A)
    <55


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

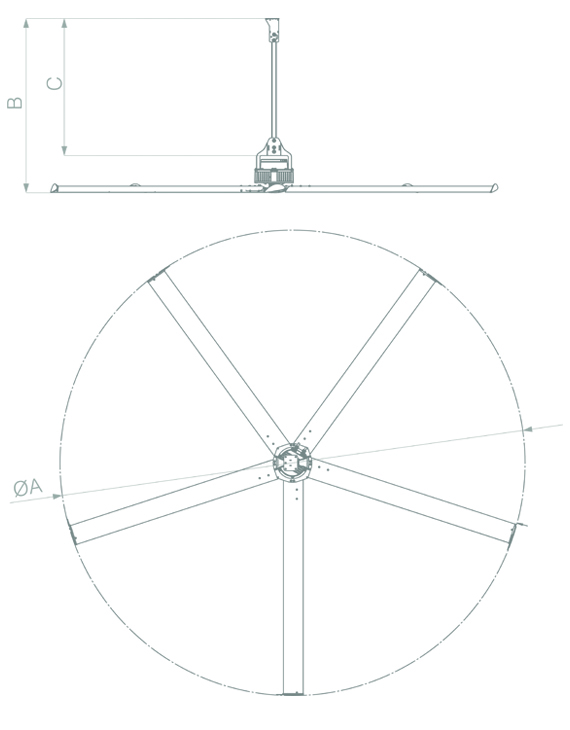

  • Diameter A (mm)
    Ø4000
  • Size B (mm)
    3310
  • Size C (mm)
    3000

Accessories

Discover accessories related to the product

WP
WP
External anemometer to be connected to the VORT T control unit, useful for the automatic control of the ceiling-fan in case of wind gusts.
USB-C
USB-C
Modbus USB converter compatible with VORT T control unit, useful for remote control of single or multiple ceiling-fans.
VORT T-HCS
VORT T-HCS
VORT T PLUS
VORT T PLUS
VORT MASTER
VORT MASTER
HVLS SUPER BLADE-RD
HVLS SUPER BLADE-RD
POT
POT
Potentiometer for installation in Standard DIN box.
VORT T
VORT T
Multiple control unit for Vortice HVLS SUPER BLADE ceiling fans. It allows the control of up to 20 fans in manual or automatic mode, depending on the temperature measured by the in...
POT-I
POT-I
Potentiometer for installation in Standard 503 box.
