Description
• Material: plastic resin able to withstand aging induced by exposure to sunlight (UV-resistant), and formulated with an antistatic compound to prevent accumulation of dust.
• Nominal diameter 400 mm
• 3 speed asynchronous motor with shaft turning in self-aligning and self-lubricating bushings; thermal overload protection.
• Motor housing equipped with hinge and clamp knob for adjustment of tilt angle.
• Oscillating mechanism (angle 90°) incorporated into housing, operated by auxiliary asynchronous motor.

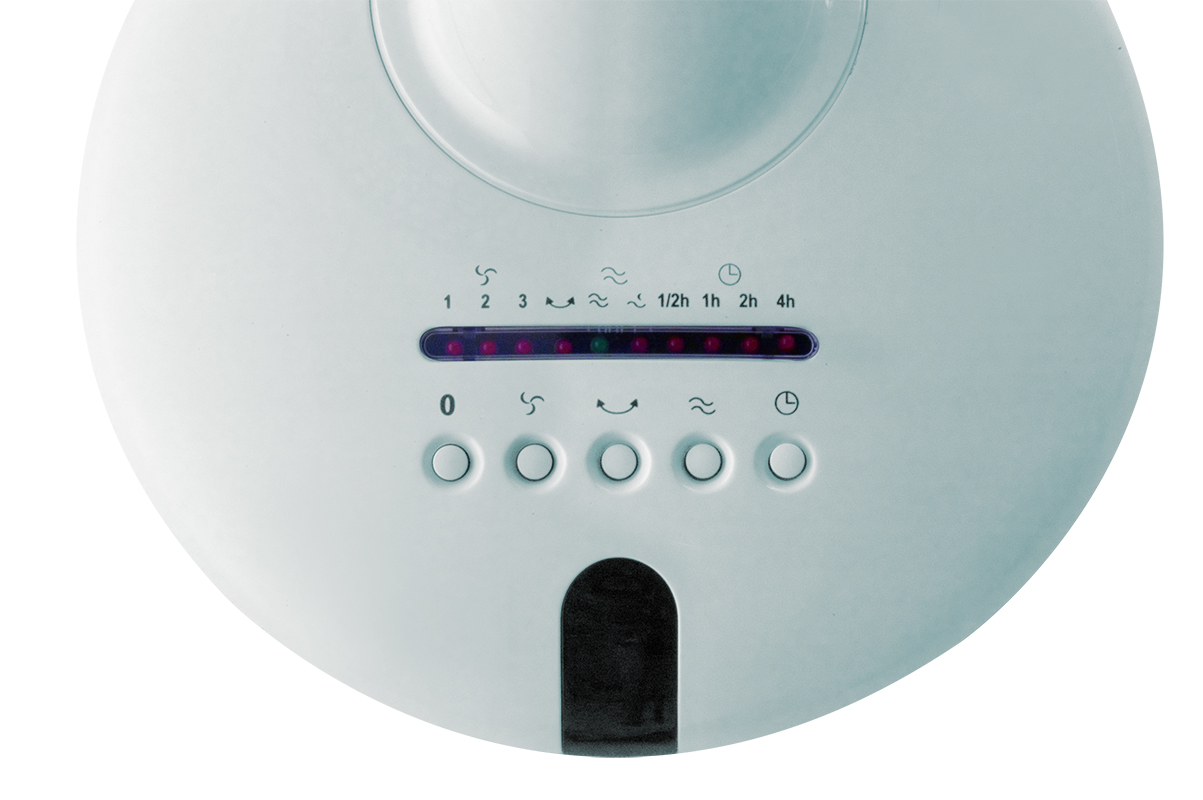

• Manual on/off switch and speed selector control; operating status of the fan displayed by luminous indicators located on the base.
• Equipped as standard with IR remote control for switching the fan on and off, selecting the speed, programming the delayed shutoff function (½ h to 7.5 h), and activating the “breeze” option.
• Designed for wall-mounted installation, supplied without power cord.
• Nominal diameter 400 mm
• 3 speed asynchronous motor with shaft turning in self-aligning and self-lubricating bushings; thermal overload protection.
• Motor housing equipped with hinge and clamp knob for adjustment of tilt angle.
• Oscillating mechanism (angle 90°) incorporated into housing, operated by auxiliary asynchronous motor.
• Manual on/off switch and speed selector control; operating status of the fan displayed by luminous indicators located on the base.
• Equipped as standard with IR remote control for switching the fan on and off, selecting the speed, programming the delayed shutoff function (½ h to 7.5 h), and activating the “breeze” option.
• Designed for wall-mounted installation, supplied without power cord.
Certifications
-
CE
-
EAC
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP20
-
Max absorbed current (A)0,19
-
Max absorbed power (W)40
-
Voltage (V)220-240
-
Weight (Kg)3,0
-
Max airflow (m³/h)4000
-
Max airflow (m³/min)66,67
-
Max flow speed (m/s)1,61
-
Power in stand-by mode (W)0.4284
-
RPM1145
-
Service value (m³/min)/W1,667
-
Sound power Lw [dB(A)]57,2
-

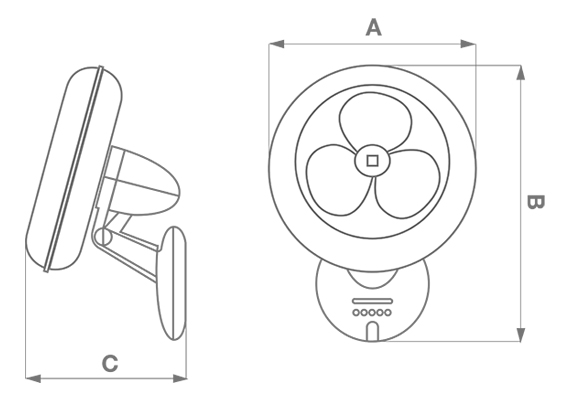

Size A (mm)460
-
Size B (mm)600
-
Size C (mm)355
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
