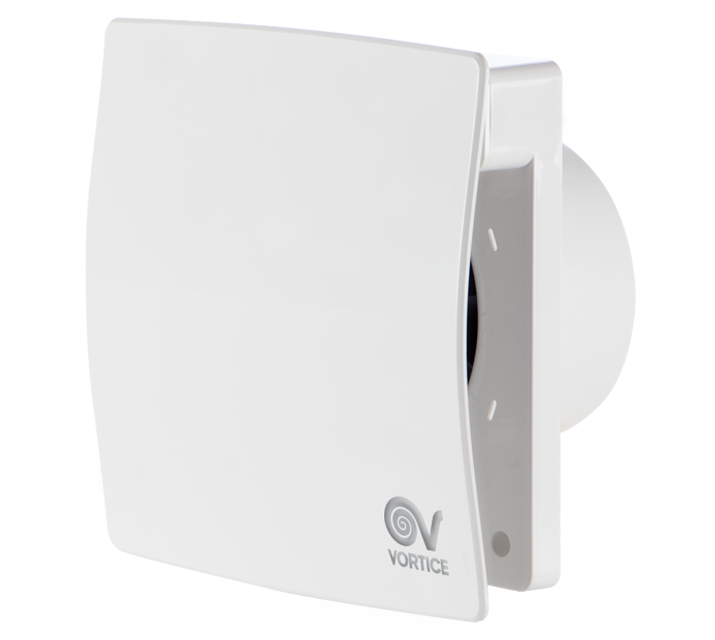

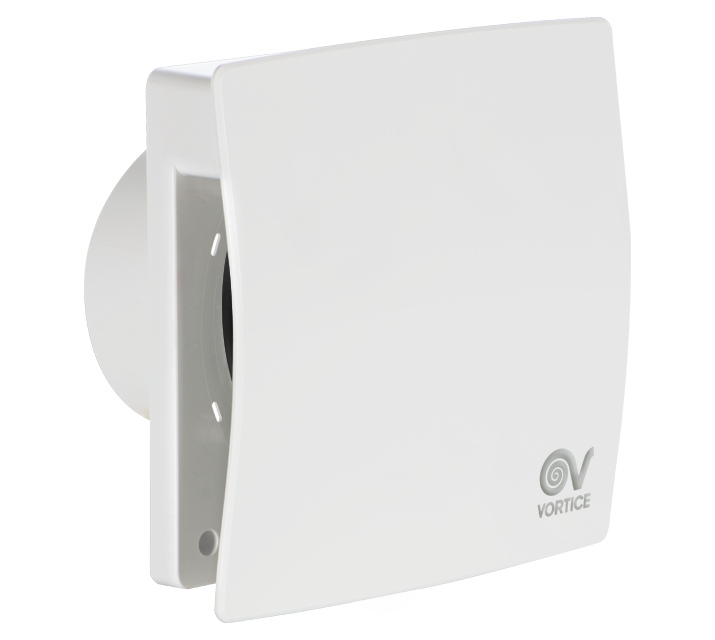

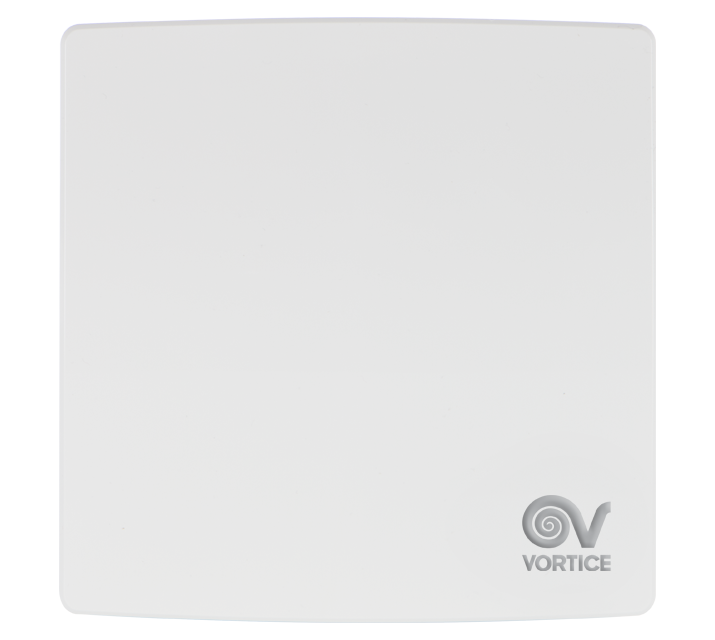

Description

• Housings made of shockproof and UV resistant white ABS.
• Nominal diameter 100 mm.
• AC motor equipped with long-life ball-bearings, mixed-flow impellers made of PP resistant to aggressive substances.
• Maximum air flow 90 m3/h.
• Integrated butterfly back-draught shutter designed to prevent unwanted air inflows when the appliance is switched-off.

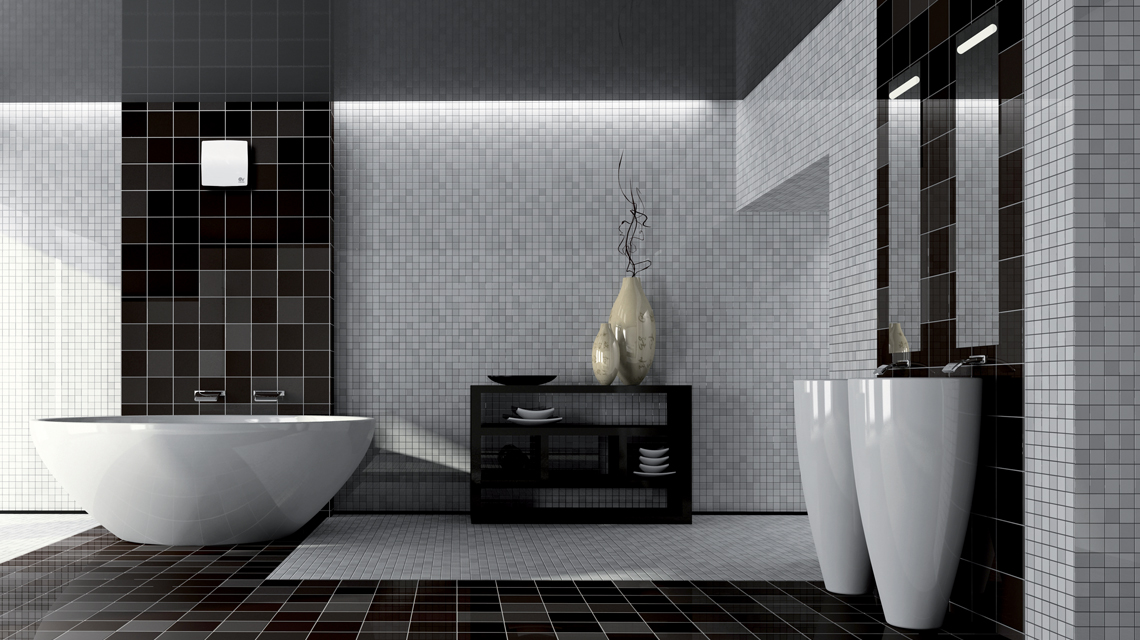

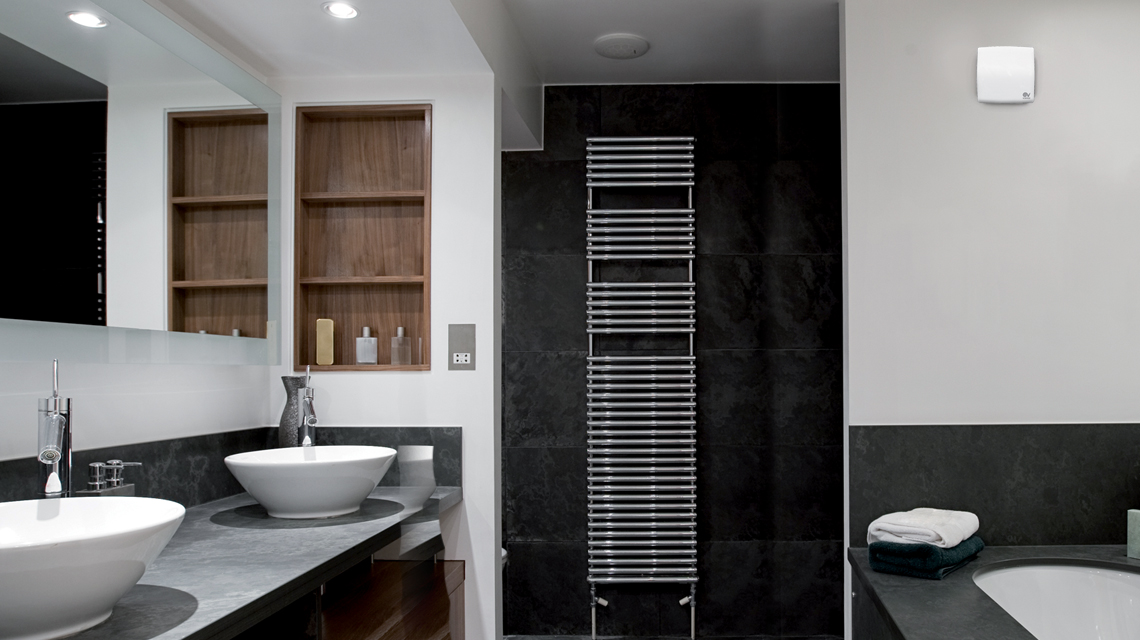

• Protection rating IP45, suitable for installation in Zone 1 of bathrooms, as defined by international standard IEC 60364-7.
• IMQ safety certification.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at Max speed (A)
    0,052
  • Max absorbed power at Max speed (W)
    9
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Voltage (V)
    220-240
  • Weight (Kg)
    0,6
  • Max airflow at Max speed (l/s)
    25
  • Max airflow at Max speed (m³/h)
    90
  • Max pressure at Max speed (mmH20)
    4
  • Max pressure at Max speed (Pa)
    39,23
  • Max RPM
    2175
  • Sound power at Min speed LWA [dB(A)]
    47,4
  • Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    26,9
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    -9,9
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -23,2
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    -2,2
  • Declared type
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max airflow [m3/h]
    87
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    8,0
  • Sound power LWA [dB(A)]
    47
  • Reference airflow [m3/s]
    0,0169
  • Reference ? pressure [Pa]
    21
  • SPI [W/(m3/h)]
    0,11823
  • Control factor CTRL
    1
  • Control type
    manuale
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    163
  • AHS temperate annual energy saved [kWh primary energy/y]
    1397
  • AHS cold annual energy saved [kWh primary energy/y]
    2732
  • AHS warm annual energy saved [kWh primary energy/y]
    632

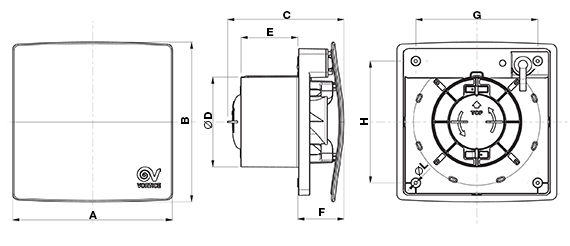

  • Size A (mm)
    173
  • Size B (mm)
    173
  • Size C (mm)
    126
  • Size D (mm)
    Ø 98
  • Size E (mm)
    61,5
  • Size F (mm)
    50
  • Size G (mm)
    132
  • Size H (mm)
    132
  • Size L (mm)
    Ø 3,5
