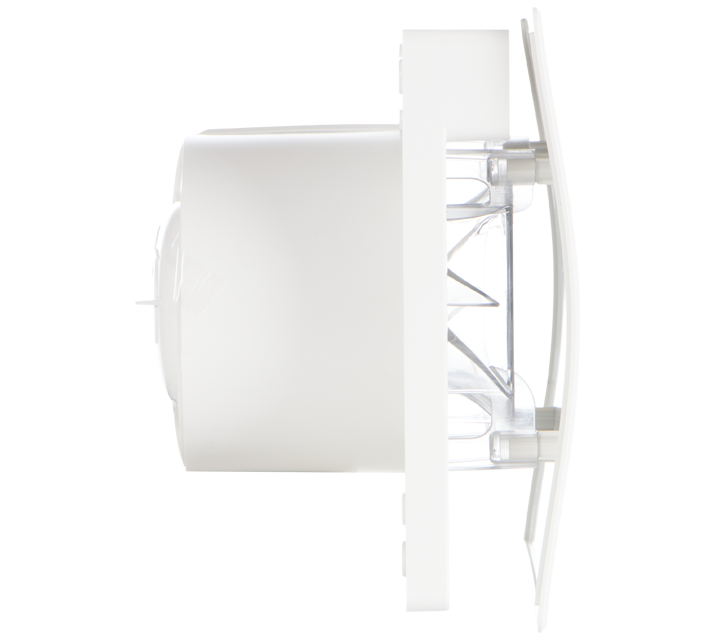

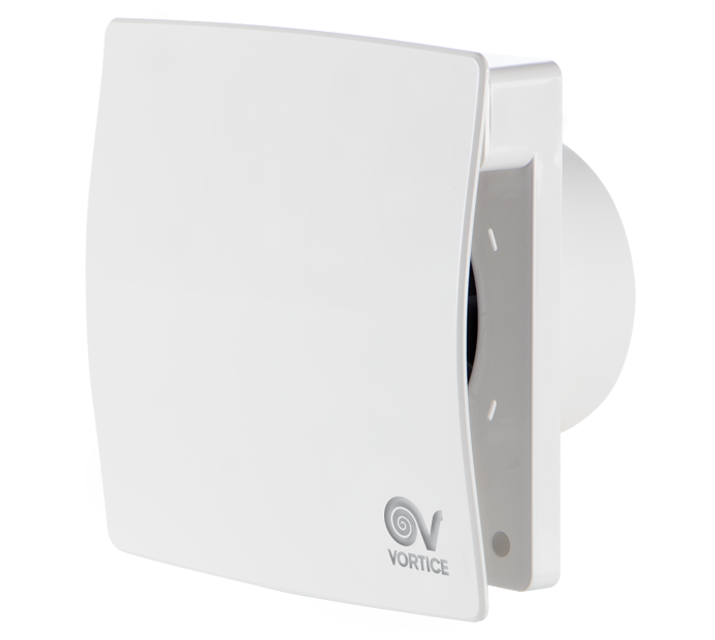

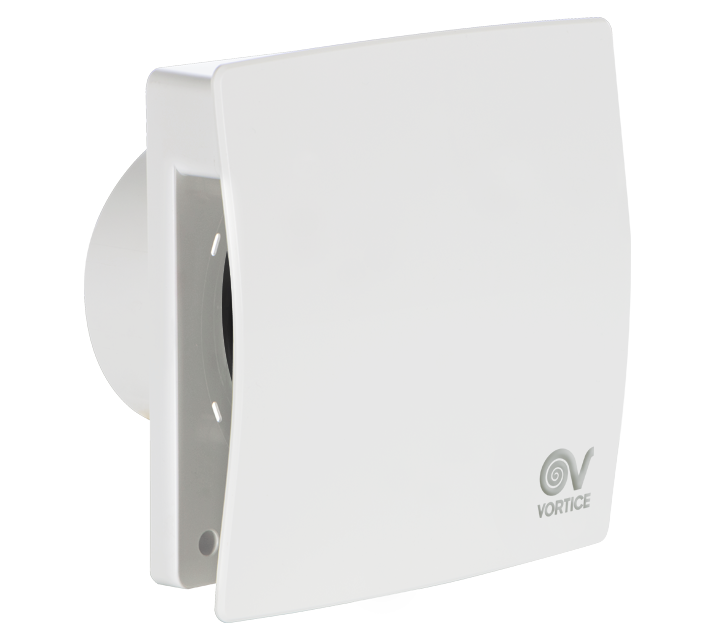

Description
• Plastic resin construction resistant to impacts and aging caused by exposure to the sun (“UV resistant”).
• Nominal diameter 100 mm.
• AC motor with shaft mounted on ball bearings support, directly coupled to a plastic helical-centrifugal impeller.
• Version equipped with an electronic board with RH sensor (4 predefined threshold levels: 60%, 70%, 80%, 90%, selectable during installation), which determines the automatic switching on of the fan. The board integrates an electronic timer for the automatic switching off of the product once the RH returns below the preset threshold. The duration of the timer is programmable, during installation, in the range 3'-20' (factory setting 3').
• Equipped with a butterfly non-return valve to prevent unwanted air from returning when switched off.
• IP45 protection rating, which guarantees the possibility of installation in Zone 1 of the bathroom according to the international standard IEC 60364-7.
• Nominal diameter 100 mm.
• AC motor with shaft mounted on ball bearings support, directly coupled to a plastic helical-centrifugal impeller.
• Version equipped with an electronic board with RH sensor (4 predefined threshold levels: 60%, 70%, 80%, 90%, selectable during installation), which determines the automatic switching on of the fan. The board integrates an electronic timer for the automatic switching off of the product once the RH returns below the preset threshold. The duration of the timer is programmable, during installation, in the range 3'-20' (factory setting 3').
• Equipped with a butterfly non-return valve to prevent unwanted air from returning when switched off.
• IP45 protection rating, which guarantees the possibility of installation in Zone 1 of the bathroom according to the international standard IEC 60364-7.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP45
-
Max absorbed current at Max speed (A)0,052
-
Max absorbed power at Max speed (W)9
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)100
-
Voltage (V)220-240
-
Weight (Kg)0,6
-
Max airflow at Max speed (l/s)25
-
Max airflow at Max speed (m³/h)90
-

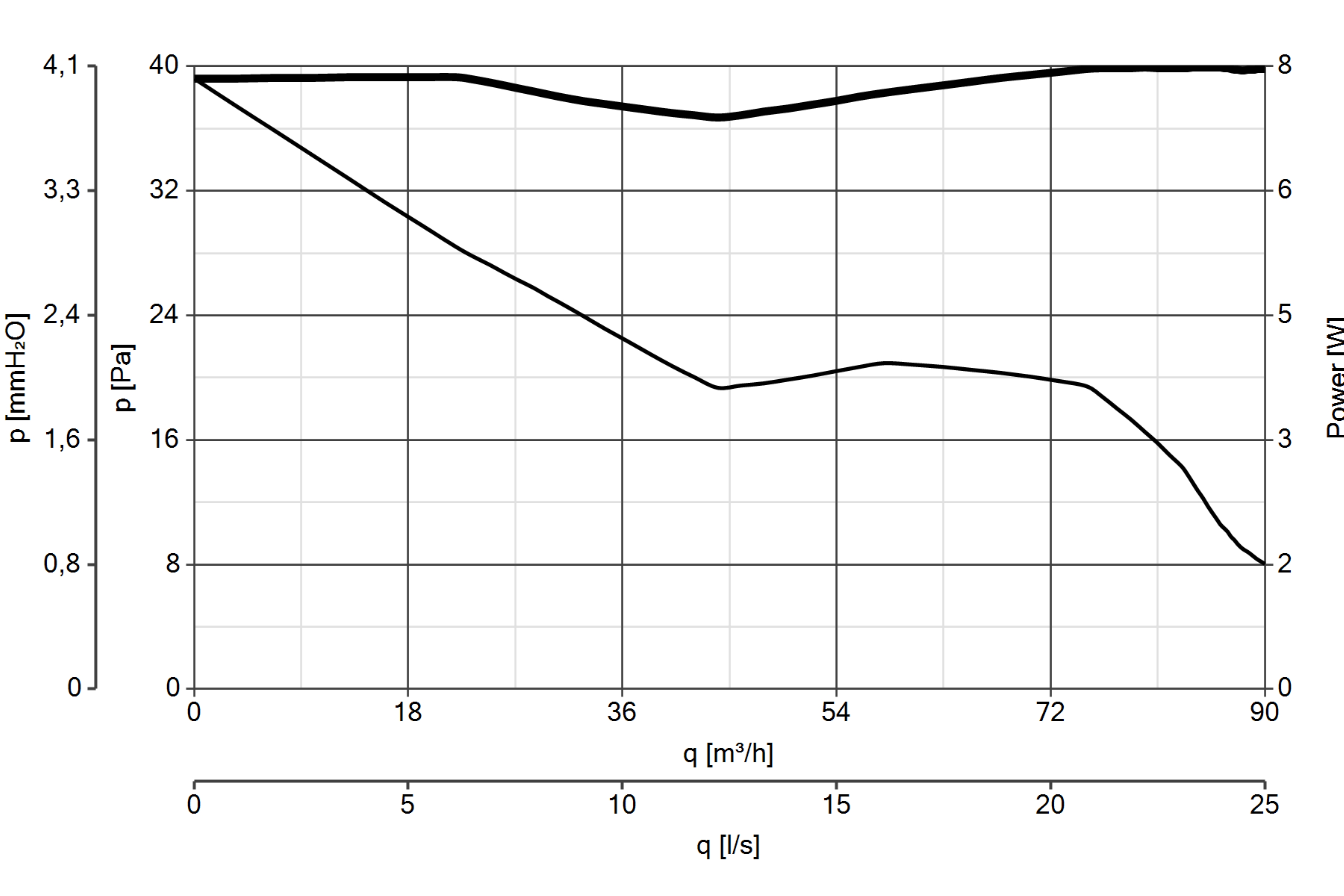

Max pressure at Max speed (mmH20)4
-
Max pressure at Max speed (Pa)39,23
-
Max RPM2175
-
Sound power at Min speed LWA [dB(A)]47,4
-
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]26,9
-
Declared typeUVR-U: unidirezionale
-
Type of driveNA
-
Type of heat recovery system HRSassente
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneNA
-
Control factor CTRL1
-
Control typemanuale
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-9,9
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-23,2
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-2,2
-
Thermal efficiency of heat recovery at reference airflow [%]NA
-
Max airflow [m3/h]87
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]8,0
-
Sound power LWA [dB(A)]47
-
Reference airflow [m3/s]0,0169
-
Reference ? pressure [Pa]21
-
SPI [W/(m3/h)]0,11823
-
Max internal leakage rate [%]NA
-
Max external leakage rate [%]NA
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]163
-
AHS temperate annual energy saved [kWh primary energy/y]1397
-
AHS cold annual energy saved [kWh primary energy/y]2732
-
AHS warm annual energy saved [kWh primary energy/y]632
-
Size A (mm)173
-
Size B (mm)173
-
Size C (mm)126
-
Size D (mm)Ø 98
-
Size E (mm)61,5
-
Size F (mm)50
-
Size G (mm)132
-
Size H (mm)132
-
Size L (mm)Ø 3,5
